Getting to Know and Using the Vehicle
Mod. Apollo
- ATTENTION: - Read the SAFETY REGULATIONS (contained in this manual) carefully for the safety of all personnel and your vehicle.
(g.51/C)
Swivelling
downwards
Swivelling
upwards
Descent Raising
Boom
extension
Boom
Retraction

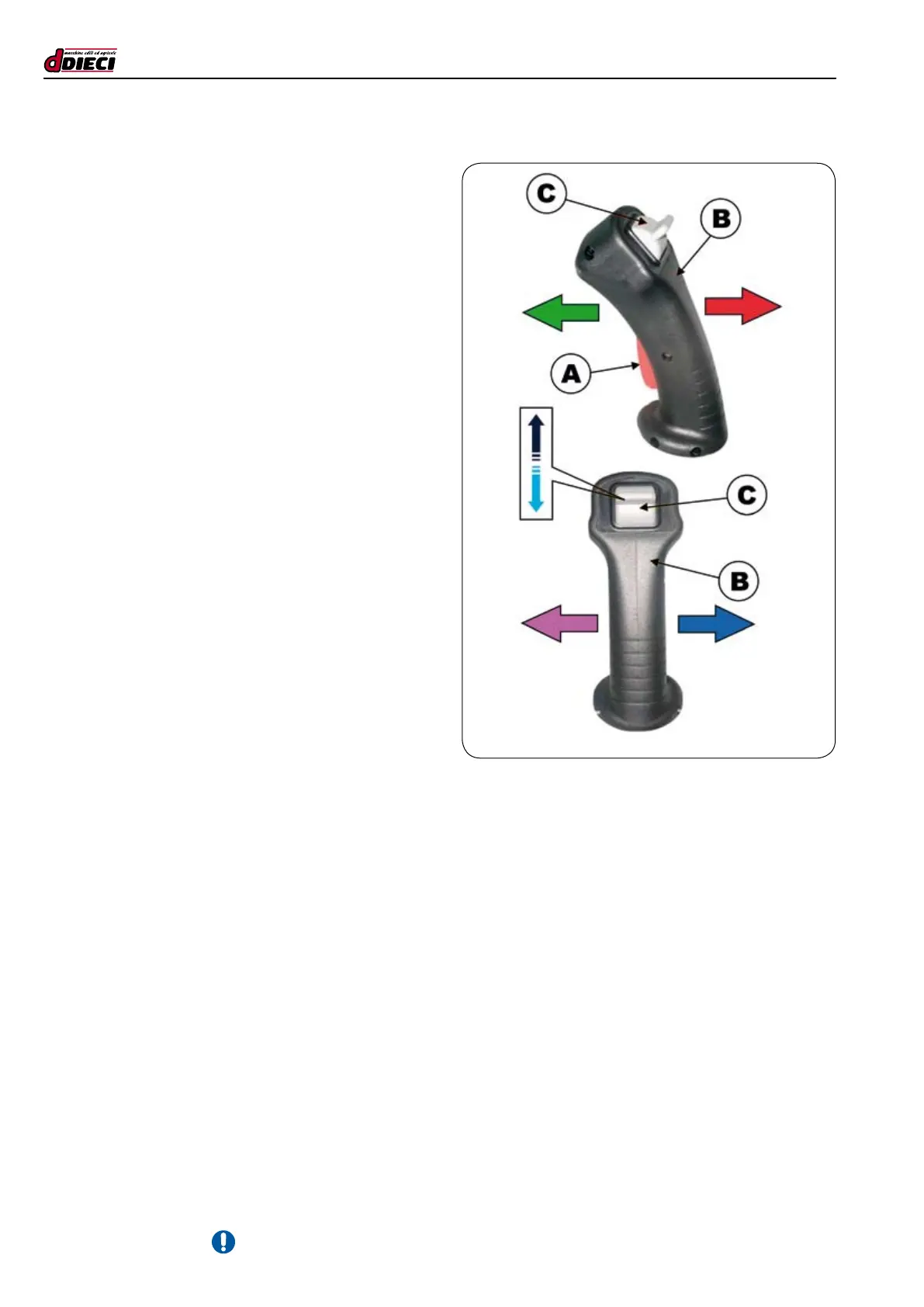

3 in 1 Proportional Extension Joystick
(Standard version)
(g.51/C)
Before each manoeuvre, press and hold down control lever
“A” (g.51/C).
Boom manoeuvre:
- Pull joystick “B”(g.51/C) backward to raise the boom.
- Pull joystick “B” (g.51/C) forward to lower the boom.
Boom extension:
- Push lever “C” (g.51/C) forward to extend the boom.
- Push the lever “C”(g.51/C) backward to return the boom.
Note: the extension or retraction speed will be proportional
to the movement of lever “C” (g.51/C).
Swivelling support attachment:
- Move joystick “B” (g.51/C) to the right side to swing the
support attachment downward.
- Move joystick “B” (fig.51/C) to the left to swing the at-
tachment support upward.
