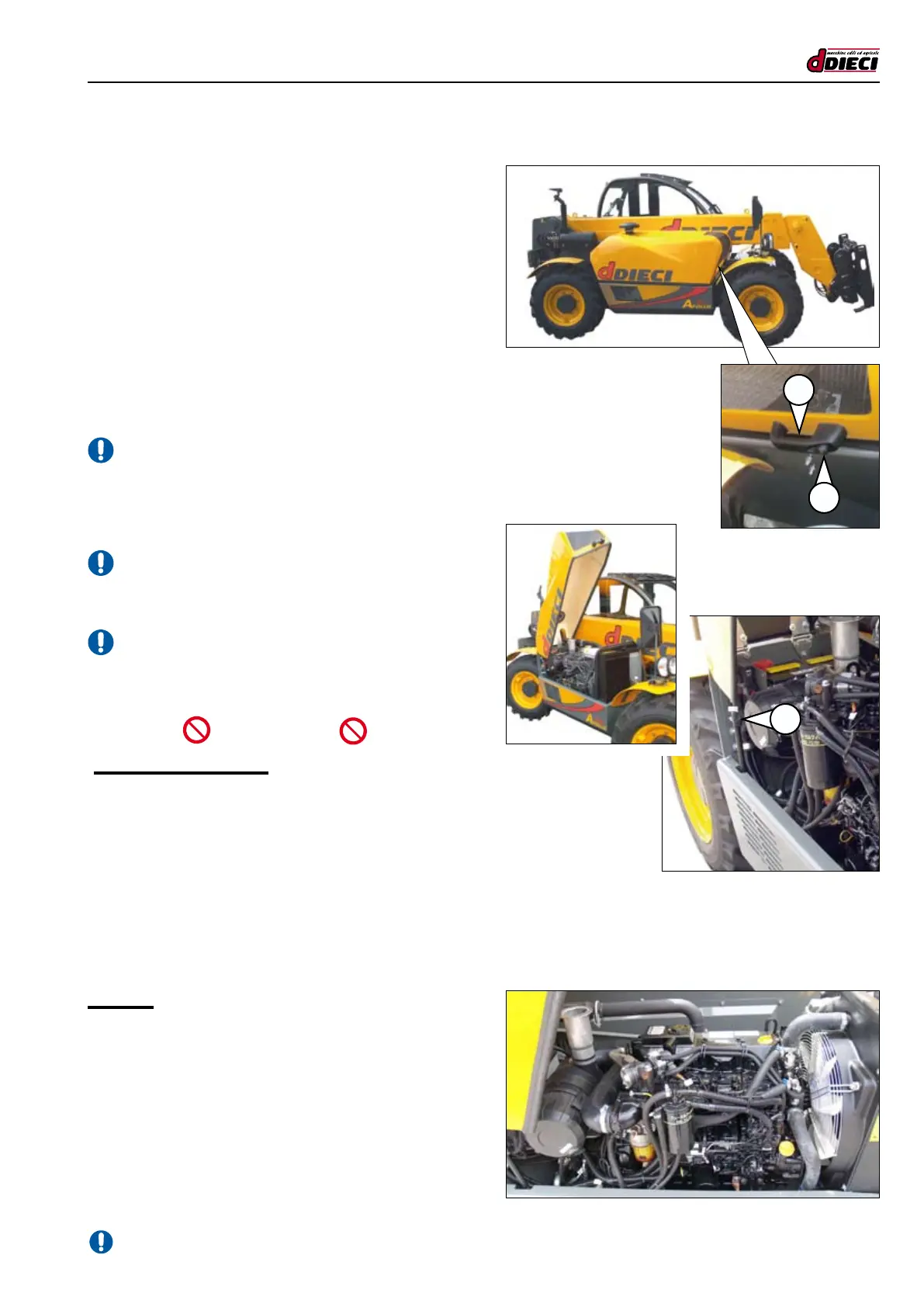

ENGINE BONNET OPENING (g.1/D)
The engine bonnet is equipped with an outer locking handle
(g.1/D Pos.”1”).
To open:
- Insert the key in the lock (fig.1/D Pos.”2”) and turn clock-
wise/counter-clockwise to engage/disengage the lock.
- Press button/lock (g.1/D Pos.”2”) to release the bonnet
with the lock disengaged.
NOTE:
The bonnet button will not open with the lock engaged.
Push bonnet upwards (g.2/D) until the gas spring is fully ex-
tended to engage block (g.2/D Pos. “1”).
- ATTENTION:
Before releasing the bonnet ensure the gas spring can sup-
port the bonnet fully opened
To close, pull bonnet downwards, accompanying it in its descent.
- ATTENTION:
Accompany the bonnet in its descent paying attention as
there is a danger of crushing.
- ATTENTION:
Do not underestimate the weight or overall dimensions of
the bonnet.
- PROHIBITION -
IT IS STRICTLY FORBIDDEN to operate the vehicle with the
bonnet open.
At the end of the maintenance operations, the bonnet
must always be locked.
ENGINE
FOR ENGINE, AIR FILTER, AND FUEL FILTER MAINTE-
NANCE ETC. CAREFULLY FOLLOW THE MANUFAC-
TURER’S INSTRUCTIONS PROVIDED IN THE SPECIAL-
LY INCLUDED HANDBOOK.
THE ENGINE USE AND MAINTENANCE HANDBOOK
IS AN INTEGRAL PART OF THE DOCUMENTATION
SUPPLIED WITH THE VEHICLE.
