Dieci Apollo 25.6 - Rear Light; Dual Reflector Working Light

D/39
- ATTENTION: - Read the SAFETY REGULATIONS (contained in this manual) carefully for the safety of all personnel and your vehicle.

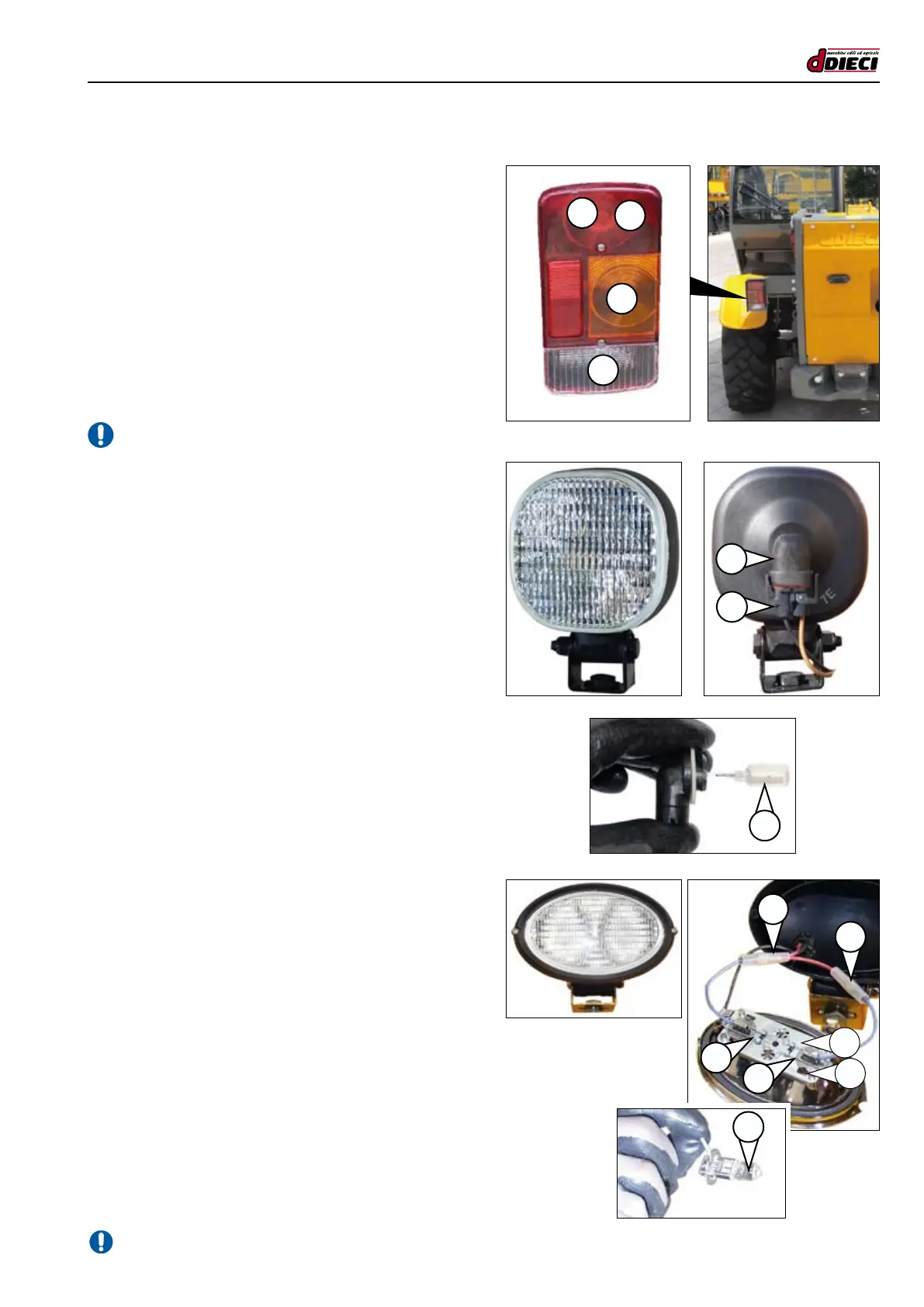

REAR LIGHT
(g.86/D)
The rear light is composed of a reverse light (21W) (g.89/D
Pos.”1”), rear red light (5W) (g.89/D Pos.”2”), a stop light
(21W) (fig.89/D Pos.”3”), and a direction indicator (21W)
(g.89/D Pos.”4”).
To access the bulbs:
- Switch off the vehicle and use the battery isolator to cut-
out electrical power.
- Remove the power connection of the rear light.
- Remove the front part of the light by loosening its screws
located on the cap.
- ATTENTION:
To close the light back up, carry out these steps in the oppo-
site order, being careful to position the seal correctly.
Replacing the rear light bulb.
- Press the upper part of the bulb.
- Turn and hold down the bulb to free it from the lock.
Carry out the same steps in the opposite order to insert a
new bulb.
WORK LIGHT
(g.87/D)
Bulbs replacement
(g.89/D Pos.”1”) (special bulb)
- Switch off the vehicle and use the battery isolator to cut-
out electrical power.
- Remove the power connector of the light in the rear part
(g.88/D Pos.”1”).
- Press the connector grip on the light (g. 88/D Pos.”2”).
- Turn and hold the grip down, to release it.
Carry out the same steps in the opposite order to insert a
new bulb.
DUAL REFLECTOR WORKING LIGHT
(g.90/D)
Bulbs replacement
(g.91/D Pos.”1”) (Type 21w H3)
- Switch off the vehicle and use the battery isolator to cut-
out electrical power.
- Remove the screws on the front part of the light.
- Remove the bulb power supply connectors (fig.91/D
Pos.”2”).
- Move the locking tabs, bringing them towards the inside
to release them (g.91/D Pos.”3”).
Carry out the same steps in the opposite order to insert
a new bulb. Treat the bulb closing mechanisms with care
(g.91/D Pos.”4”) for proper insertion.
