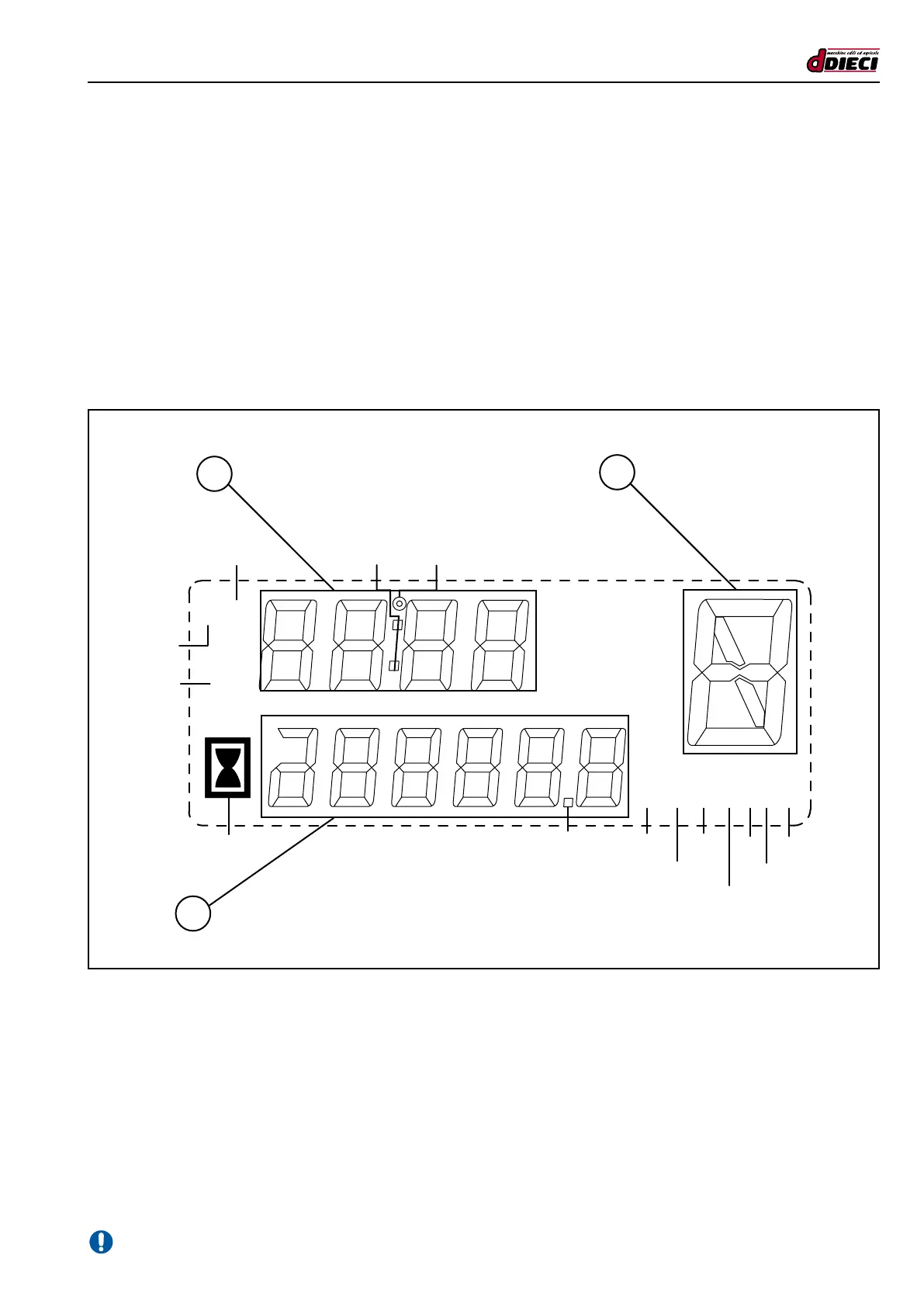

The following functions will be shown on the display:
- Timer(6charactersofwhichoneadecimalpointplushourglass)(g.200/Cpos.”C”).
- Clock(4characters)(g.200/Cpos.”A”).
- Speedometer(3charactersofwhichoneadecimalpointpluskm/h,m/handmph)(g.200/Cpos.”C”).
- Hodograph(6charactersofwhichoneadecimalpointpluskmandmiles)(g.200/Cpos.”C”).
- Neutralgearengaged(g.200/Cpos.”B”).
- Engineerrors(LargeEashing+3charactersattop)(g.200/Cpos.”A”,g.200/Cpos.”B”,g.200/Cpos.”C”)
-Service(LargeSashing+n°horsmissingtoservice)(g.200/Cpos.”A”,g.200/Cpos.”B”)
Speedometer (optional)
The speedometer allows to display the speed of the vehicle in real time.
Hodograph (optional)
The hodograph allows to display the kilometres travelled by the vehicle. The instrument is combined with the speedometer
