4 in 1 Proportional Control Extension Joystick
Proportional services

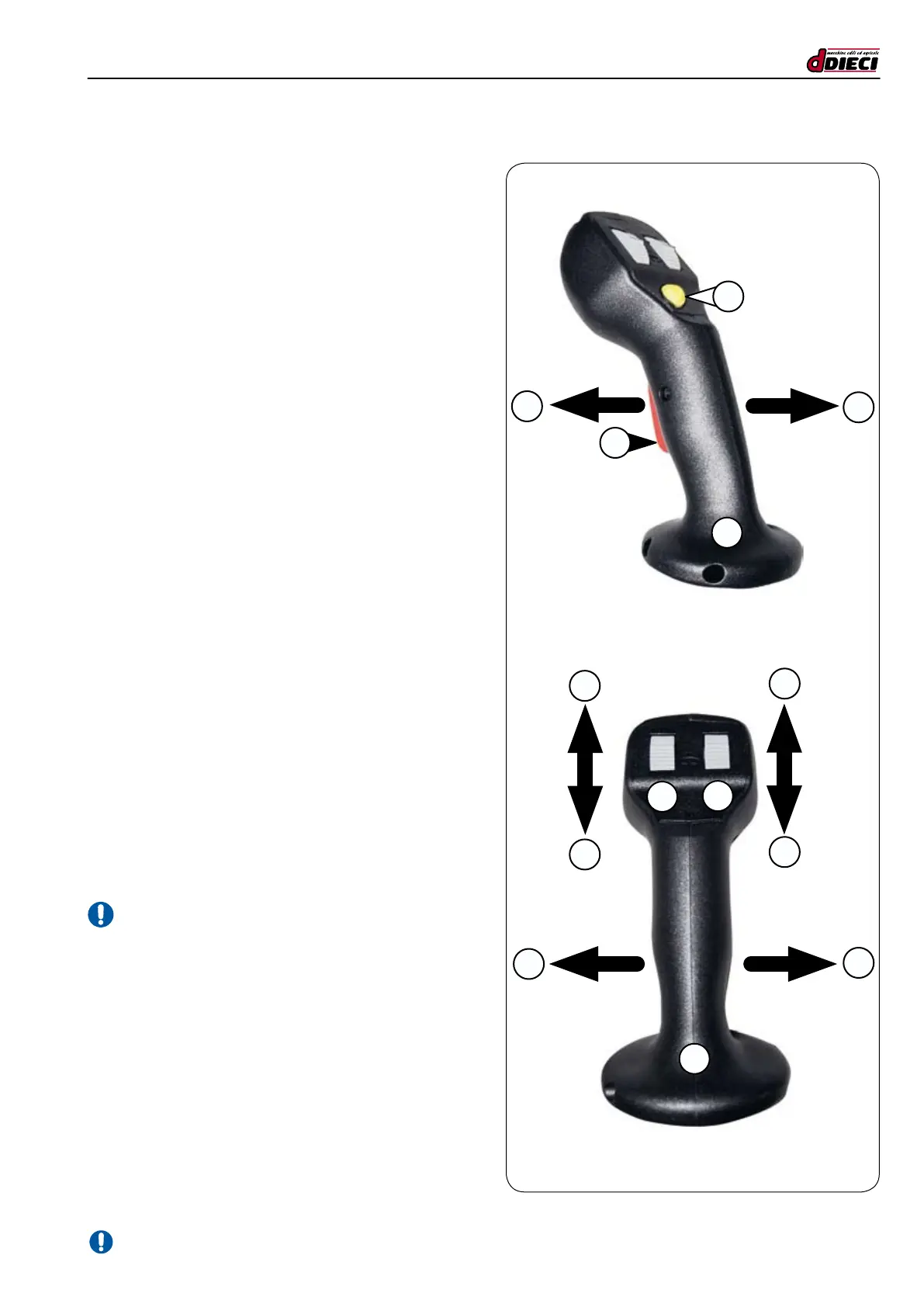

(g.54/C)
Before each manoeuvre, press and hold down the “man in”
control lever “A” (g.54/C).
Boom manoeuvre:
- Pull joystick “1” (g.54/C) backward towards the letter “B2”
(g.54/C), to raise the boom.
- Push the joystick “1” (g.54/C) forward towards the letter
“B1”(g.54/C) to lower the boom.
Boom extension:
- Push the roller “C”(g.54/C) forward towards the letter
“C1”to extend the boom.
- Push the roller “C” (g.54/C) backward towards the letter
“C2” to retract the boom.
Note: the extension or retraction speed will be proportional to
the movement of roller “C” (g.54/C).
Swivelling support attachment:
- Move joystick “1” (g.54/C) right toward letter “D2” to swivel
the support attachment downward.
- Move joystick “1” (g.54/C) left toward letter “D1” to swing
the support attachment upward.
Service controls:
- Push roller “E” (g.54/C) forward, towards letter “E1”, for
services.
- Push roller “E” (g.54/C) backward, towards letter “E2”, for
services.
NOTE: when an electro-hydraulic attachment is installed,
roller “E” is used to control service movements in accordance
with the corresponding attachment manual.
The speed of the services movement will be proportional to
the movement of roller E”.
- ATTENTION:
Before operating the vehicle, ensure that service roller
“E” is working properly.
Work in an area free of any obstacles to allow so that
movements can be checked without risk of damaging
things, other people or animals.
ALARM RE-ENTRY PUSH BUTTON:
(If present)
Press the button “F (g.54C) to bring the load back to safe
conditions in case of intervention of the guards. For the
functioning and use specications, refer to chapter “C”,
“Alarm re-entry push button” paragraph.
