Epicycloidal reduction gear
Oil change
(g.53/D - g.54/D - g.55/D)
1. Stop the vehicle on a at, level surface with differential
oil still hot.
2. Switch off the engine and remove the ignition key, hang up
a sign in the cab that reads “maintenance work under way”.
3. Place a container under the drain plugs to collect any oil
which may come out during replacement.
3. Turn the wheel hub (fig.53/D Pos.”1”) so that the in-
let (fig.54/D Pos.”M”) is moved to the lower position
(g.54/D), and then remove the oil cap.
4. Allow the oil to completely drain out.
5. Turn the wheel hub so that the inlet (g.55/D Pos.”M”) is
moved to the middle position (g.55/D).
6. Fill the reduction gear to level via the inlet (g.55/D).
The level is correct when oil comes out from the oil cap.
7. Replace the epicycloidal reduction gear cap and tighten
it securely.
8. Repeat all the operations for each of the four reducer units.
1

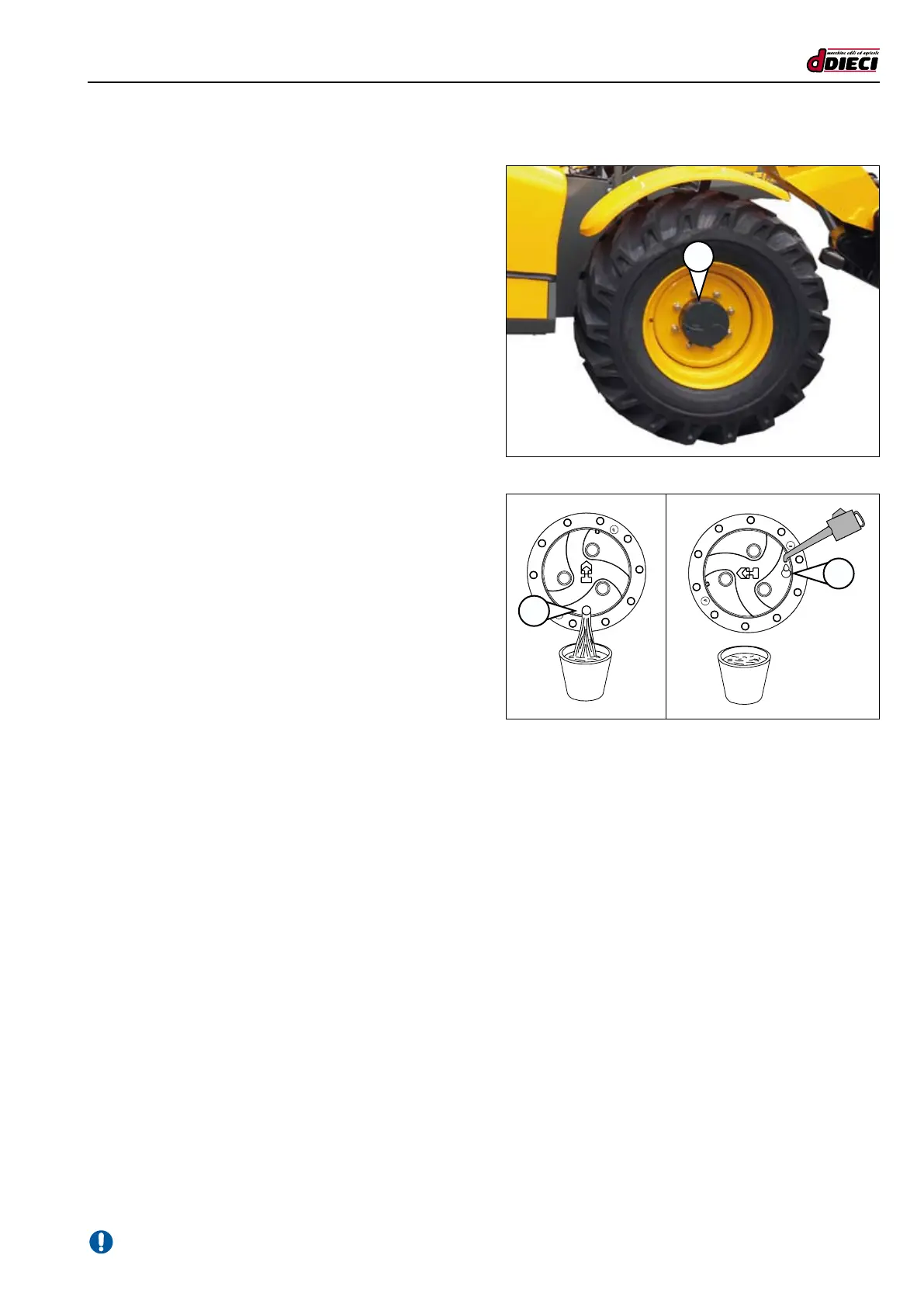

(g.53/D)
(g.54/D) (g.55/D)
M
M
