B/38
Mod. Apollo
Safety Regulations
1
(g.11/B)
2
2
(g.12/B)
1

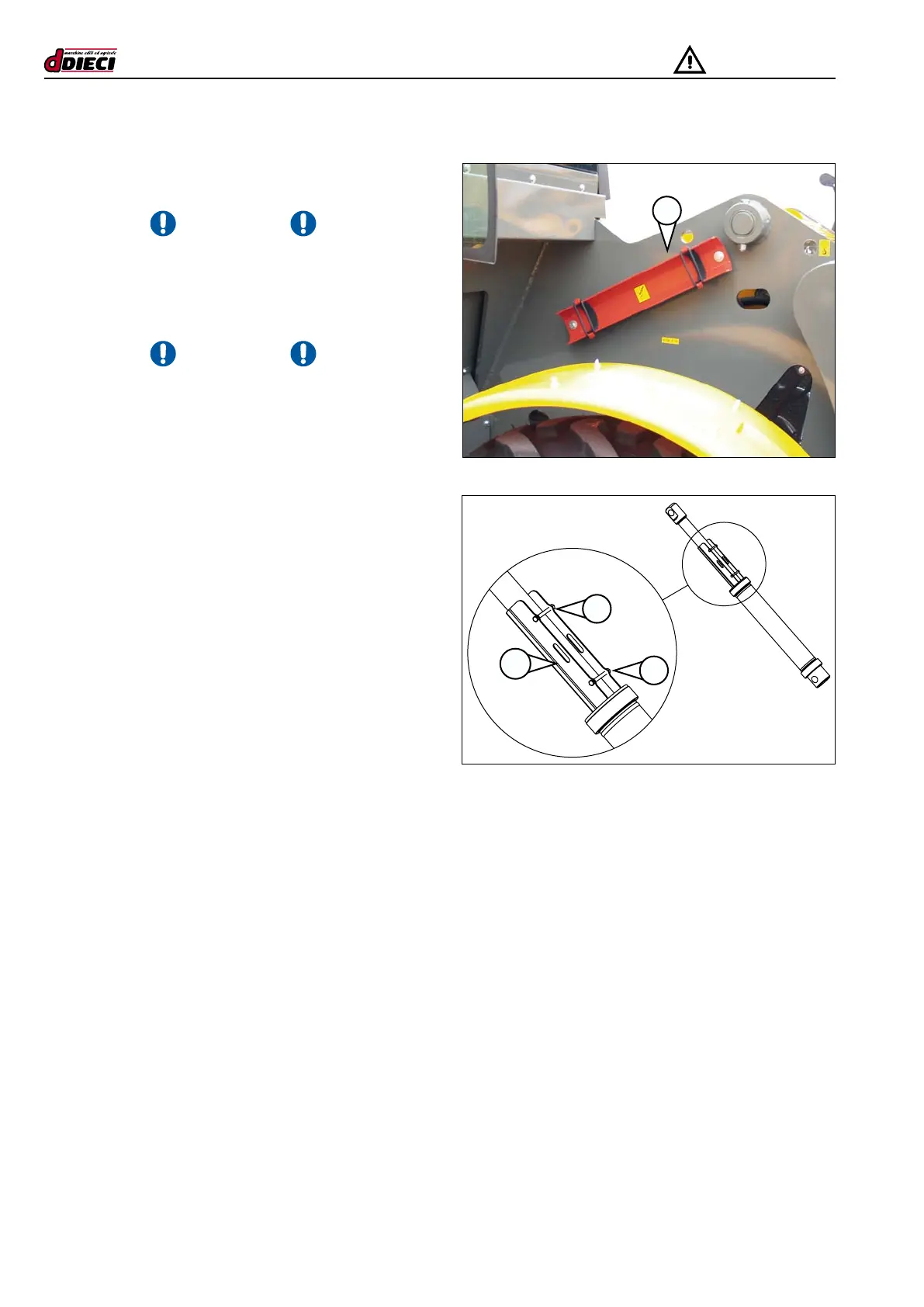

Boom support spacer.
(g.11/B - Pos."1", g.12/B)
- ATTENTION -
The boom support spacer must only be used during routine
maintenance operations.
When carrying out maintenance work on the boom raising cylin-
der or on the related block valve, the boom must be supported
by a suitable raising mechanism (Minimum capacity 3 tons).
- ATTENTION -
To insert the spacer, proceed as follows:
- Completely close the boom extensions
- Raise the boom the minimum height necessary to mount
the spacer to the rod;
- Lock the spacer (g.12/B - Pos."1") with the relevant ho-
oks (g.12/B - Pos."2")
