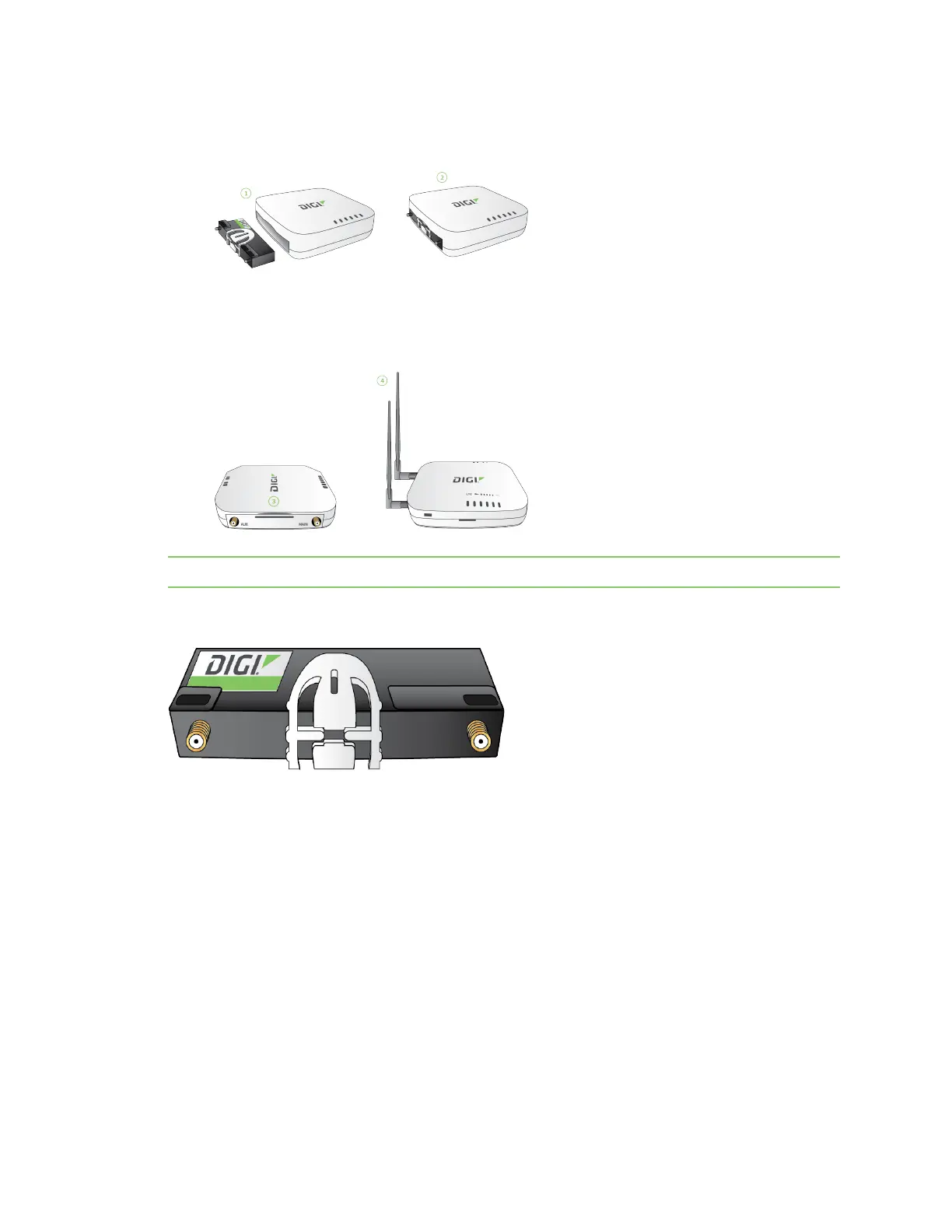

2. With the antennas SMA connectors pointing outward, slide the Digi 1002-CM modem into the
Digi EX15 cellular extender. A clicking sound will indicate it is properly inserted.
3. Slide the white plastic plate over the antenna connectors to cover the plug-in modem as
shown; it will clip into place.
4. Affix the cellular antennas to the two connectors protruding from the device.
Note Be sure to use the plate with the cut outs for the antenna connectors.
To remove the plug-in LTE modem, pinch the two vertical sides of the white clip (as shown below) and
slide out the modem.
Device status LEDs
Once power has been established, your device will initialize and attempt to connect to the network.
Device initialization may take 30-60 seconds. By default your Digi EX15 will attempt to use DHCP to
establish an Internet connection either through its cellular modem or the ethernet port .
1. Cellular connectivity status is indicated by the color-coded LTE light.
2. Indicator lights on the Wireless Strength Indicator show you the cellular network signal
strength.
3. Ethernet connections are confirmed via the light corresponding to the Digi EX15 port number.
