DiGiCo S21
1-1

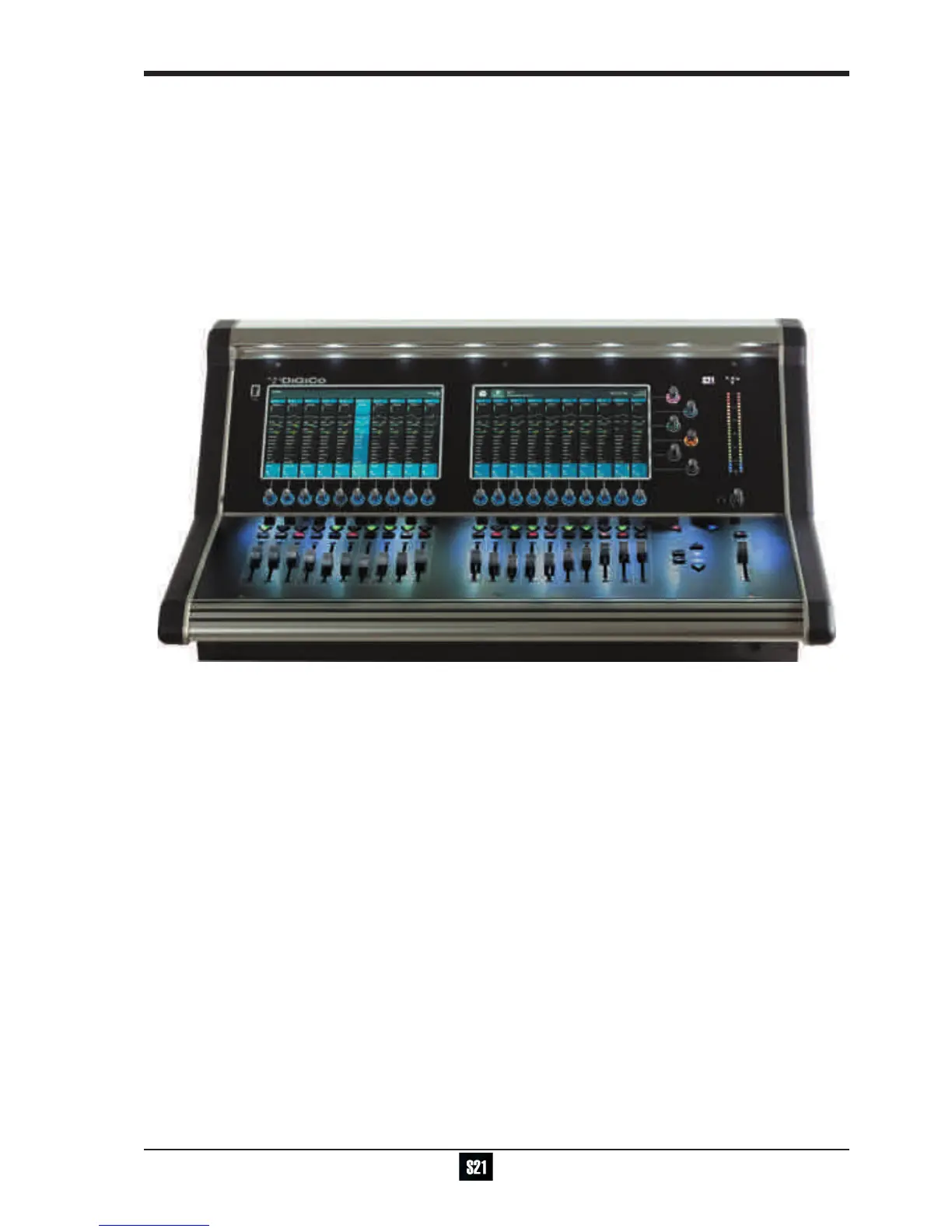

1.1 The Console
The Digico S21 consists of a worksurface, an audio engine and a range of onboard inputs and outputs. It can be connected using op-
tional DiGiCo DMI Cards to a variety of DiGiCo racks and other audio input/output devices.
The console worksurface consists of 2 sections that can be congured to control up to 40 mono or stereo input channels, 10 VCAs, 16
mono or stereo busses plus a Master buss and a 10 Input x 8 Output Matrix.
The left and right sections have 10 assignable faders and 10 sets of assignable on-screen channel controls, the right hand section
also has a dedicated Master fader and mute, a Master/Solo meter, a set of 6 assignable encoder/switches and worksurface navigation
controls
The console's buss architecture is dynamic, and can support mono and stereo congurations.
Multiple console setups can provide:
Front of House and Monitoring with shared stage racks and gain tracking.
