Chapter 3: Setting Up D-Control 17
Stand Hardware
The following hardware is provided with the D-Control stand (spare pieces may be included).
Hardware for Metal Stand Parts
• (14) 1/4-inch-20 x 1/2-inch button head cap screws
• (10) 1/4-inch-20 x 1/2-inch socket head cap screws
• (22) M6 x 8mm Phillips pan head screws
• (8) 1/2-inch-20 x 1-inch socket head cap screws
for leveling the stand (not pictured)
• (3) 1/2-inch roll pins
Hardware for Plastic Stand Parts
• (3) #10-32 x 1/2-inch socket head cap screws
• (4) #10-32 x 3/4-inch socket head cap screws
• (26) #10-32 x 1-inch socket head cap screws
• (8) #10 x 3/4-inch Phillips pan head screws
• (3) #6-32 x 7/16-inch Phillips pan head machine screws
Cabling Accessories
• (14) cable tie mounts
• (8) screw mount cable ties
• (14) cable ties
• (4) Velcro rip ties
• (10) #8 x 1/2-inch self-tapping screws (for use with rip
ties and screw mount cable ties)
Tools for Assembling the Stand
The following tools are included with D-Control:
• 5/32-inch hex driver (for button head cap screws)
• 3/16-inch hex driver (for socket head cap screws)
• 3/8-inch hex driver (for stand leveling screws)
The following additional tools are required to assemble the
D-Control stand:
• #2 Phillips screwdriver (for large Phillips head screws)
• #1 Phillips screwdriver (for small Phillips head screws)
• small hammer (for 1/2-inch roll pins)
The following tools are optional, but will help with assembly:
• rubber mallet for adjusting the stand
• ratcheting nylon strap for closing up the stand

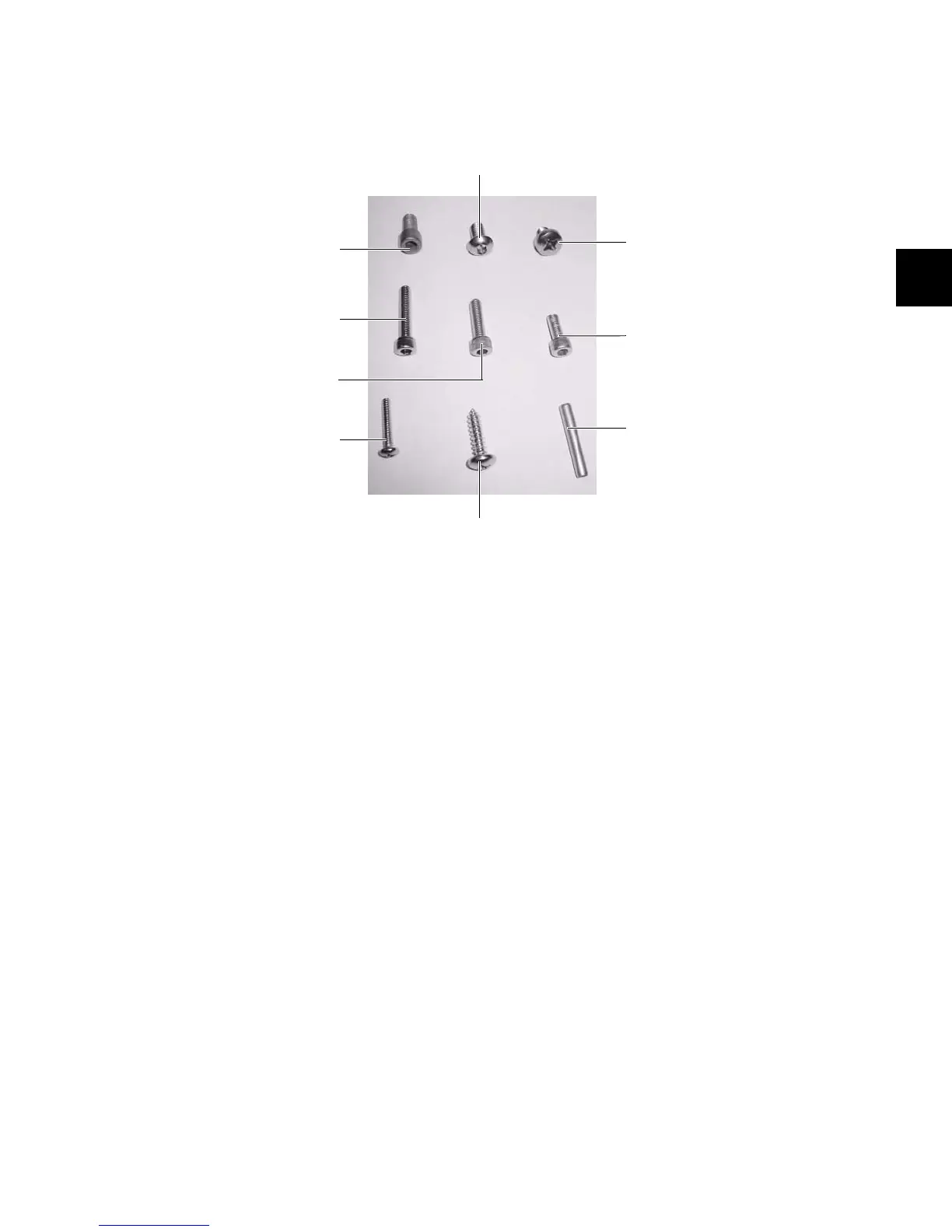

Figure 4. D-Control assembly hardware for metal and plastic parts
1/4-inch-20 x 1/2-inch button head cap screw
1/4-inch-20 x 1/2-inch socket head cap screw
M6 x 8mm Phillips pan head screw
#10-32 x 1/2-inch socket head cap screw
#10-32 x 1-inch socket head cap screw
#10-32 x 3/4-inch socket head cap screw
1/2-inch roll pin
#10 x 3/4-inch Phillips pan head screw
#6-32 x 7/16-inch Phillips pan head machine screw
To Next Page
