Table 1: Component Description
#
Component
Function
1
Detonator
Detonator will initiate the blast on command from the Bench Commander
2
CE4 Tagger
Test, Write Location and/or Delay to detonator and remote-control Commander
3
Harness Wire
Connects the detonator to the Bench Commander
4
Bench Commander
Test Detonators / Communicates with Base Commander directly, or via the
Repeater to allow remote blasting. Can also enable a local blast
5
Repeater
Enables 2-way RF communication between a Base and Bench Commander
where line of sight is not possible, effectively doubling the RF range
6
Base Commander
Establish communication via all Bench Commanders and enables remote
blasting
7
Wi-Fi
Enable Wi-Fi communication
8
Long range RF
Enable RF communication
The following illustrations depict some of the lesser configurations possible with the system.
Direct blasting of up to 1600 detonators. The CE4 Tagger can be replaced with a Tablet or PDA.

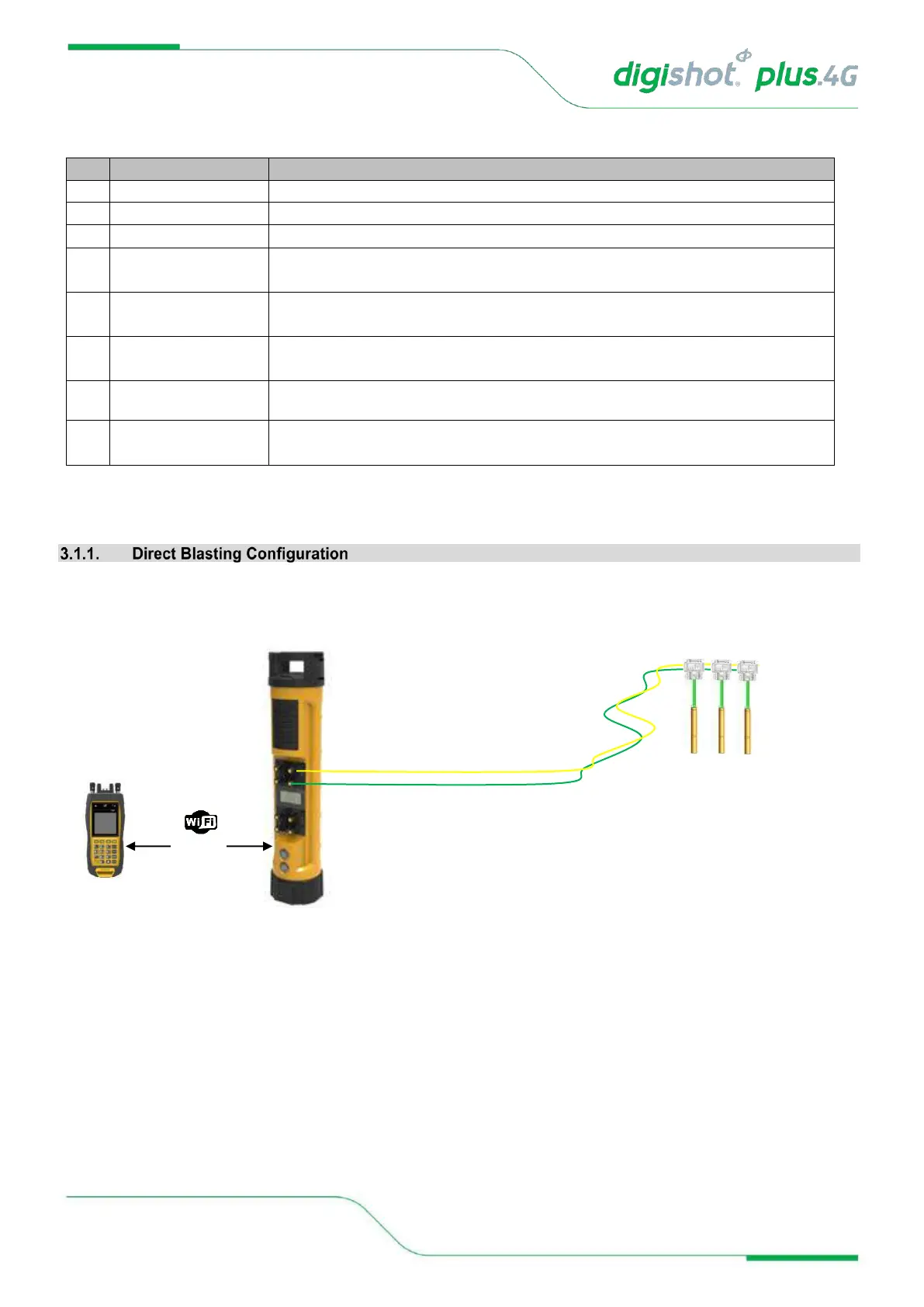

Figure 2: Direct Blasting
10m
Tagger
Max 400 Detonators
per Channel
Bench Commander
