DigiTech RP-20 VALVE User Manual

A Quick Tour of the RP-20 Valve
The Front Panel

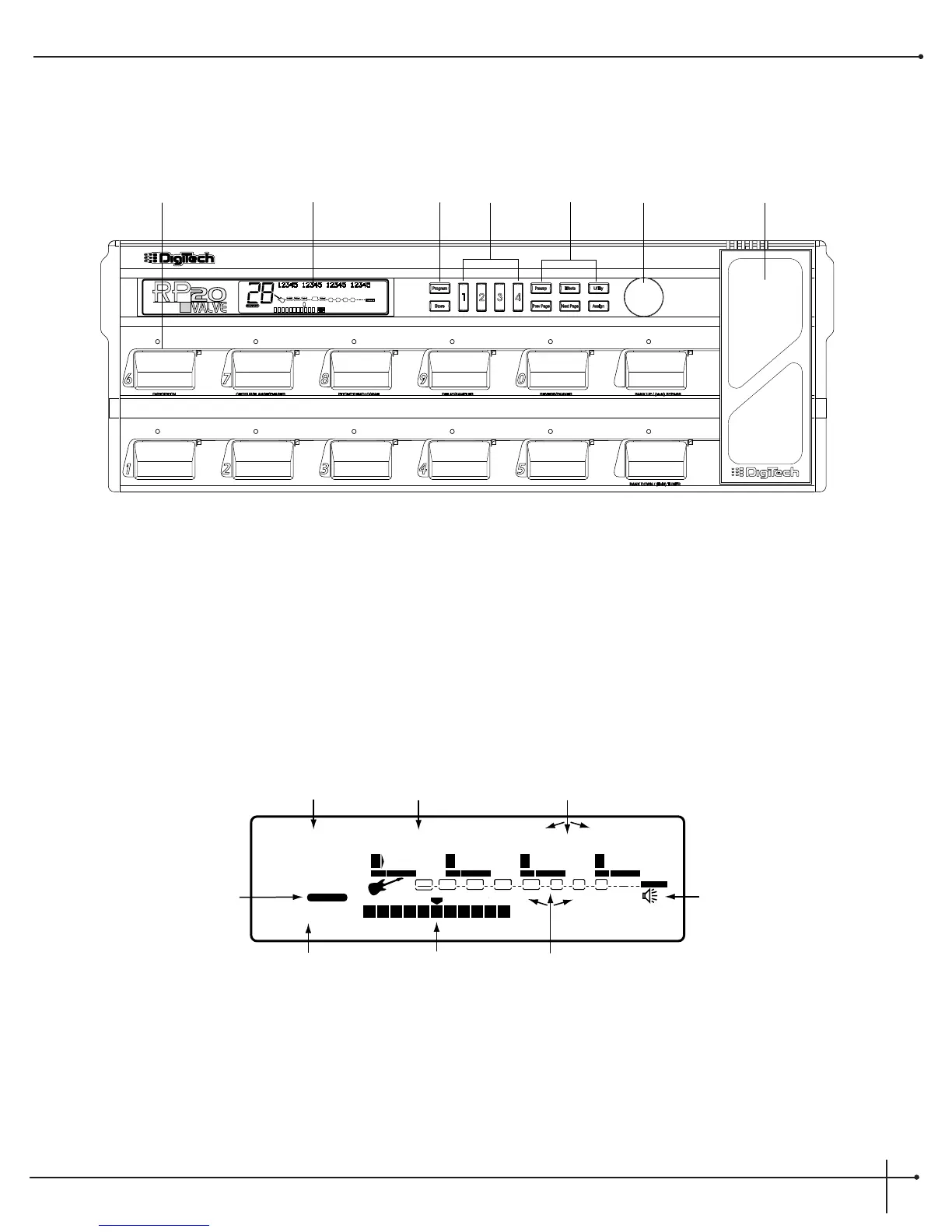

1) Pedalboard- The RP-20 Valves’s pedalboard consists of twelve switches and a real time expression pedal. the footswitches labeled 1-10 can
be used to turn effects on or off, change presets or toggle continuous controller. The <Bypass/(hold) Tuner> footswitch (located on the
bottom row can be used to bypass all of the effects within the RP-20 Valve or activate the tuner mode when held. The <Bank Up/(Hold)
Bank down> footswitch is used to move up and down through any one of the 19 banks in the RP-20 Valve.
2) Display - This large custom display is where you receive most of the information you need to optimize performance of the RP-20 Valve.
This display has several functions and they are as follows:
2a) Program Number - The three large digits located in the upper left corner of the display indicate which Program is currently selected.
This indicator will also display the currently selected note while the RP-20 Valve is in Tuner Mode.
2b) Factory / User indicators - Located directly below the Program number, the Factory and User program icons indicate whether the
Edge of the Earth
100
USER
%kHz
msdB
50
1
CHANGEDLINK
%kHz
msdB
60
2
CHANGEDLINK

%kHz
msdB
%kHz
msdB
70
3
CHANGEDLINK
100
4
CHANGEDLINK
PAGE
10
OF 11
WAH
COMP
TUBE EQ
L/R OUTS
CLIP
#
b
GATE
BANK


2-a
2-c
2-b
2 -g2-f
2-d
2-e
2-h
3
2
1
4
5a-f
6
7
Data
RP-20 Valve
User Guide
Section -1 Introduction
3
