C16x/C24x/C30x Operator’s Manual Specifications - 109
C24x
C24x

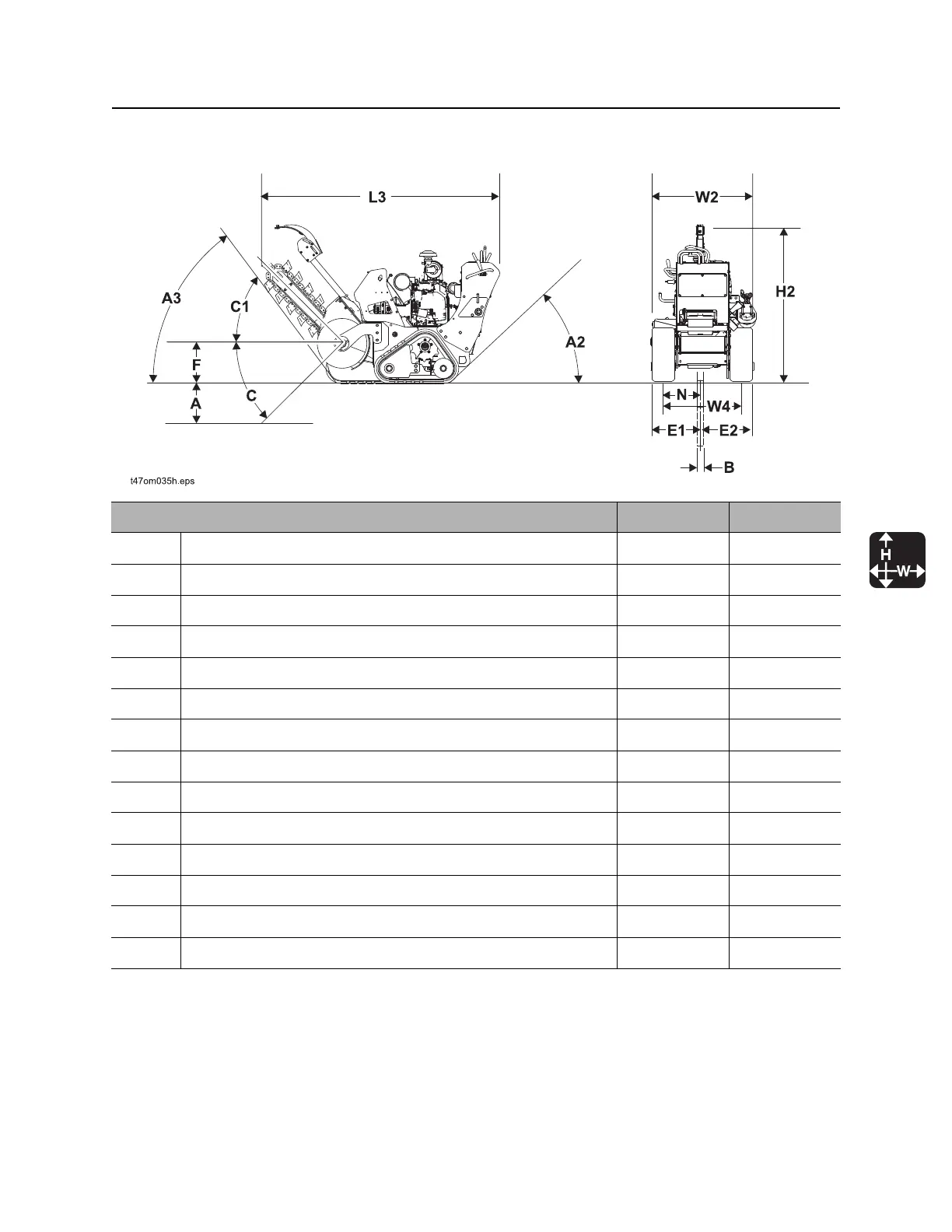

Unless otherwise noted, dimensions are based on 36” (915 mm) boom in transport position.
Dimensions U.S. Metric
A Trench depth, maximum 36 in 915 mm
B Trench width 4.3 - 6 in 110-150 mm
C Boom travel down 63° 63°
C1 Boom travel up 60° 60°
F Headshaft height, digging chain 13.7 in 348 mm
L3 Length, maximum 94 2390 mm
W2 Width 35.8 in 909 mm
H2 Height, maximum 57 in 1450 mm
W4 Tread 27 in 686 mm
A2 Angle of departure 45° 45°
E1 Centerline trench to outside edge of machine, left 17.2 in 437 mm
E2 Centerline trench to outside edge of machine, right 18.6 in 472 mm
N Spoil discharge reach 14.1 in 358 mm
A3 Angle of approach 52° 52°
