Controls - 50 RT45 Operator’s Manual
Right Fender

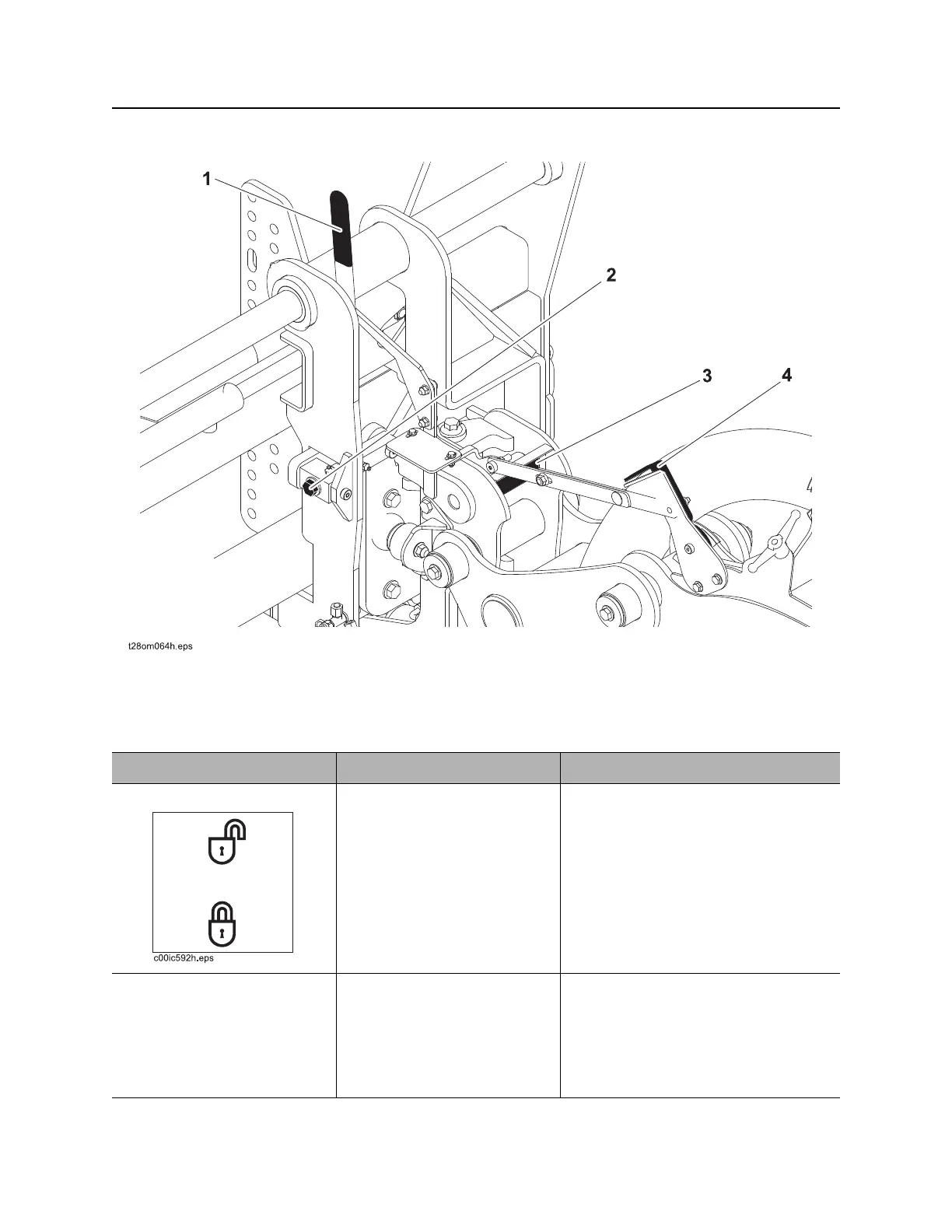

MT12 MicroTrencher Attachment
1. Swing lock handle
2. Manual tilt adjustment
3. Bubble level
4. Level indicator
Item Description Notes
1. Saw swing lock handle To lock, move handle toward
tractor.
To unlock, move handle
toward microtrencher.
Operate with microtrencher locked in
most situations.
2. Manual tilt adjustment Turn screw in to adjust angle
left.
Turn screw out to adjust
angle right.
Use manual tilt adjustment and
bubble level together to adjust
microtrencher to match jobsite
conditions.
See “Adjust Tilt” on page 126.
