IP2371EN

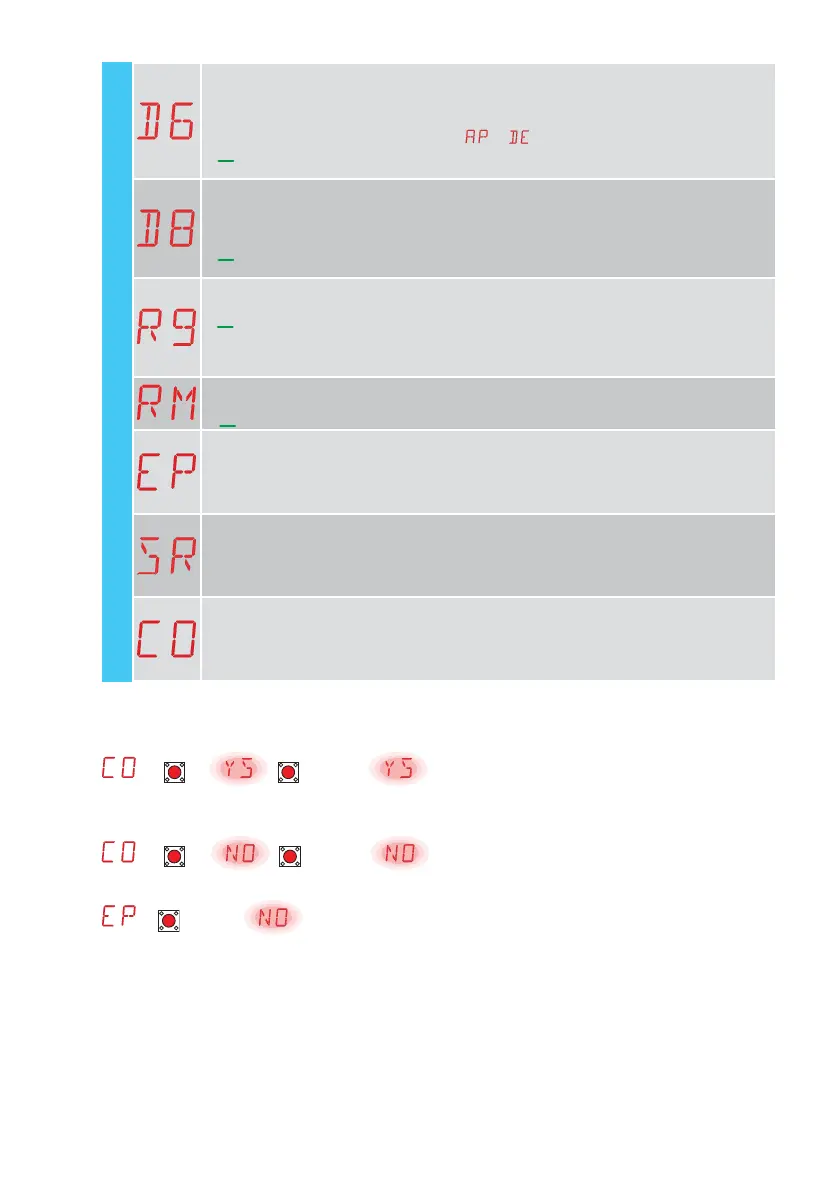

WZ - Quick configuration wizard
D6 - Selection of device connected to terminals 1-6
• NO: none.
• SE: safety sensing edge (if contact 1-6 opens, 10 cm disengagement is implemented after stop).
• S41: safety edge with safety test (if contact 1-6 opens, after the stop there is a disengagement
of a duration depending on the selection
→ ).
• PH: photocells.
• P41: photocells with safety test.
D8 - Selection of device connected to terminals 1-8
• NO: none.
• SE: safety edge.
• S41: safety edge with safety test.
• PH: photocells.
• P41: photocells with safety test.
R9 - Configuration of input 30-9
• NO: disabled.
• 9P: open state of an input triggers permanent stop (default).
• 9T:
open state of an input triggers temporary stop. Once contact closes, automatic closure time
(if enabled) is activated.
• HR:
automation operates in “operator present” mode if input is open.
RM - Radio receiver operation
• 1-3: step-by-step
• 1-5: opening (default)
EP - AES (Encrypted Packet) reception setting
If the possibility to receive coded messages is enabled, the control panel will be compatible
with remote controls of the “AES-128 Encrypted” type.
• ON: enabled
• OF: disabled (default)
SR - Remote control storage
When you press ENTER, SR starts to flash and you can associate the desired buttons.
Once OK is displayed, SR starts to flash again and you can associate the next button. To quit, press
ESC or ENTER for 2 seconds and go on to the next item.
NOTE: if NO flashes on the display, the remote control may already be stored.
CO - Save Wizard settings
Here you can save the parameters that have previously been set.
• YS: to save and perform a card RESET
• NO: to quit without saving and go back to a blank screen (central part only)
NOTE: the message CO and YS/NO sub-menus flash constantly.
To quit without saving changes:
Select the option NO for the parameter CO and then press and hold ENTER for 2 seconds
Or: from any main parameter, press the ESC button for 2 seconds. Example:
NOTES:
• The set values are only stored on the card if they are saved using the CO parameter.
• The parameter CO and the YS/NO options flash constantly.
• After confirming a configuration parameter, the wizard moves on automatically to the next
parameter.
• The UP/DOWN buttons may be used at any time, however, to scroll through parameters.
• There is no time limit for selecting and the wizard will not quit automatically.
→
ENTER
→
ENTER
for 2 sec.
→
ESC
for 2 sec.
To save the configuration:
In the CO parameter select YS (yes) and press the ENTER button for 2 seconds.
After saving, a board POWER RESET cycle is performed automatically:
→
ENTER
→
ENTER
for 2 sec.
