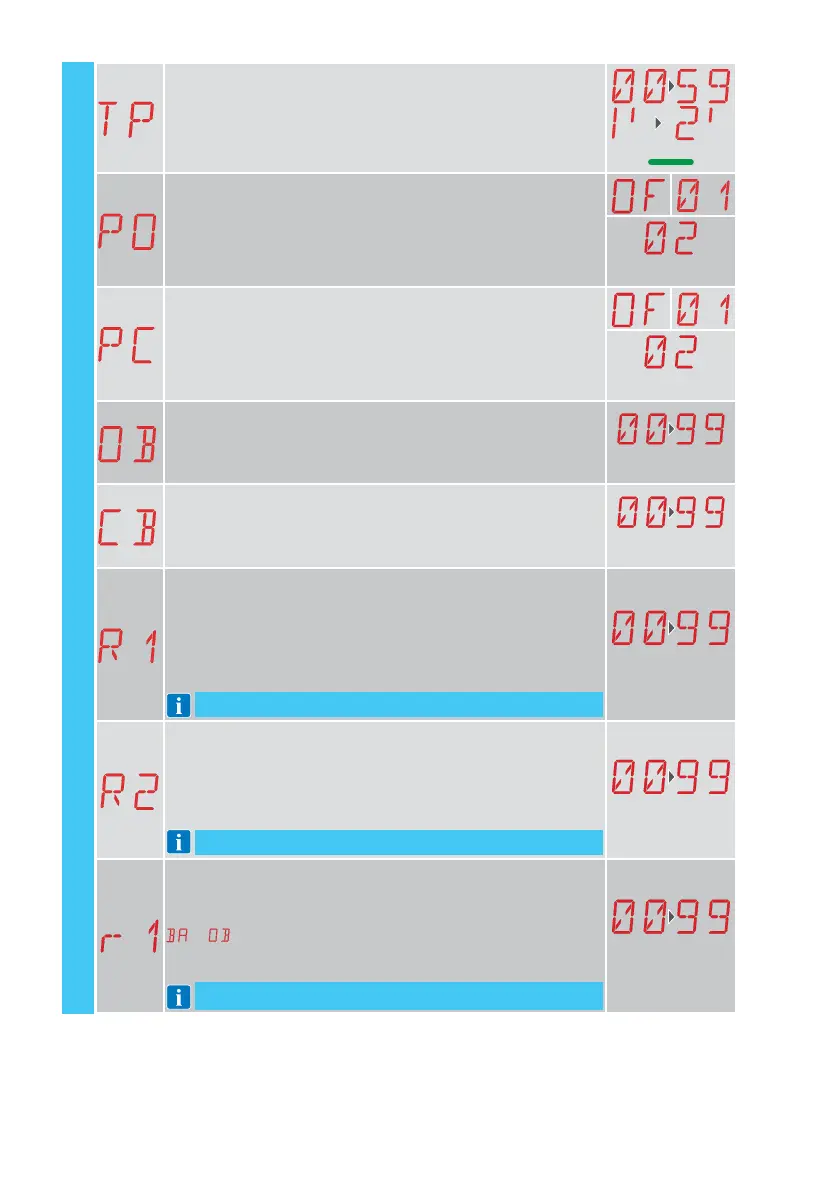

BA - Basic adjustments
TP - Setting of automatic closing time after partial opening [s]
It is set with different intervals of sensitivity.
from 0” to 59” with intervals of 1 second;
from 1’ to 2’ with intervals of 10 seconds.
30”
PO - Deceleration/braking during opening
Enables a deceleration phase at the end of the opening stroke
OF - Disabled
01 - Speed 50%
02 - Speed 33%
(Default value depends on
AS setting)
PC - Deceleration/braking during closing
Enables a deceleration phase at the end of the closing stroke.
OF - Disabled
01 - Speed 50%
02 - Speed 33%
(Default value depends on
AS setting)
OB - Setting of deceleration/braking distance during opening [cm]
Indicates the time between the start of the deceleration ramp and the
end of the distance stroke
00 - Minimum
99 - Maximum
(Default value depends on
AS setting)
CB - Setting of deceleration/braking time during closing [cm]
Indicates the time between the start of the deceleration ramp and the
end of the distance stroke
00 - Minimum
99 - Maximum
(Default value depends on
AS setting)
R1 - Adjustment of thrust on obstacles during normal operation at
constant speed when opening. [%]
The control panel is fitted with a safety device which, when it detects
an obstacle during the opening phase, it stops the movement with a
release operation.
00 - Minimum thrust
99 - Maximum thrust
NOTE: if set to 99%, obstacle detection is disabled during opening.
(Default value depends on
AS setting)
R2 - Adjustment of thrust on obstacles during end position approach
phase normal movement at constant speed when closing. [%]
The control panel is fitted with a safety device which, when it detects an
obstacle during closure, it reverses the movement.
00 - Minimum thrust
99 - Maximum thrust
NOTE: if set to 99%, obstacle detection is disabled during closing.
(Default value depends on
AS setting)
r1 - Adjustment of thrust on obstacles during end position approach
phase at constant speed when opening. [%]
The control panel is fitted with a safety device which, when it detects an
obstacle during the approach phase on opening, determined by parameter
→ , it implements a release operation.
00 - Minimum thrust
99 - Maximum thrust
NOTE: if set to 99%, obstacle detection is disabled during opening.
(Default value depends on
AS setting)
