35
IP2371EN
BA - Basic adjustments
LU**
Entrance closedG3-13 output operating mode
00: Courtesy light
01: ON-OFF flashing light
02: Permanent flashing light (auto-flashing)
03: Proportional indicator light for open gate
04: Indicator light for open gate
05: Gate stationary and closed indicator light
06: Gate stationary and fully open indicator light
07: Gate moving indicator light
08: Gate opening indicator light
09: Gate closing indicator light
10: Red light control / proportional shaft lights
12: Electromagnetic lock control - QIKAFE
ON: Output always active
11: Red light flashing control with closed
gate/door and proportional input
during the operation
Open prelamp Opening stroke Open entrance Closed prelamp Closing stroke
CB*
Entrance closed
Modalities to the manoeuvring phase
G3-13 special operating mode Entrance in stop Open safety Maintenance alarm
13: STOP signalling / safety switching
14: Maintenance alarm

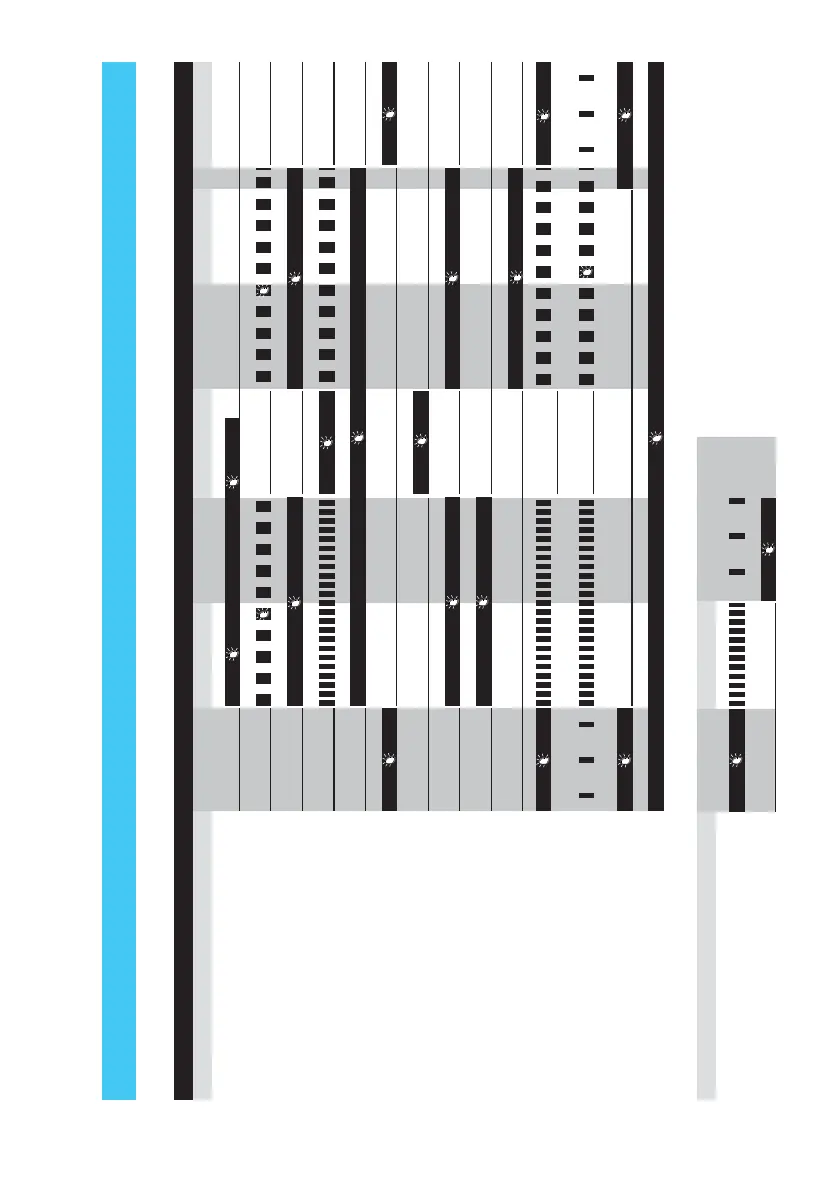

Table 9.4.1> Operating modes of configurable outputs 13 and G3 (parameters 13 and G3)
*
CB: Deceleration distance on closing
** LU: Courtesy light switch-on time
