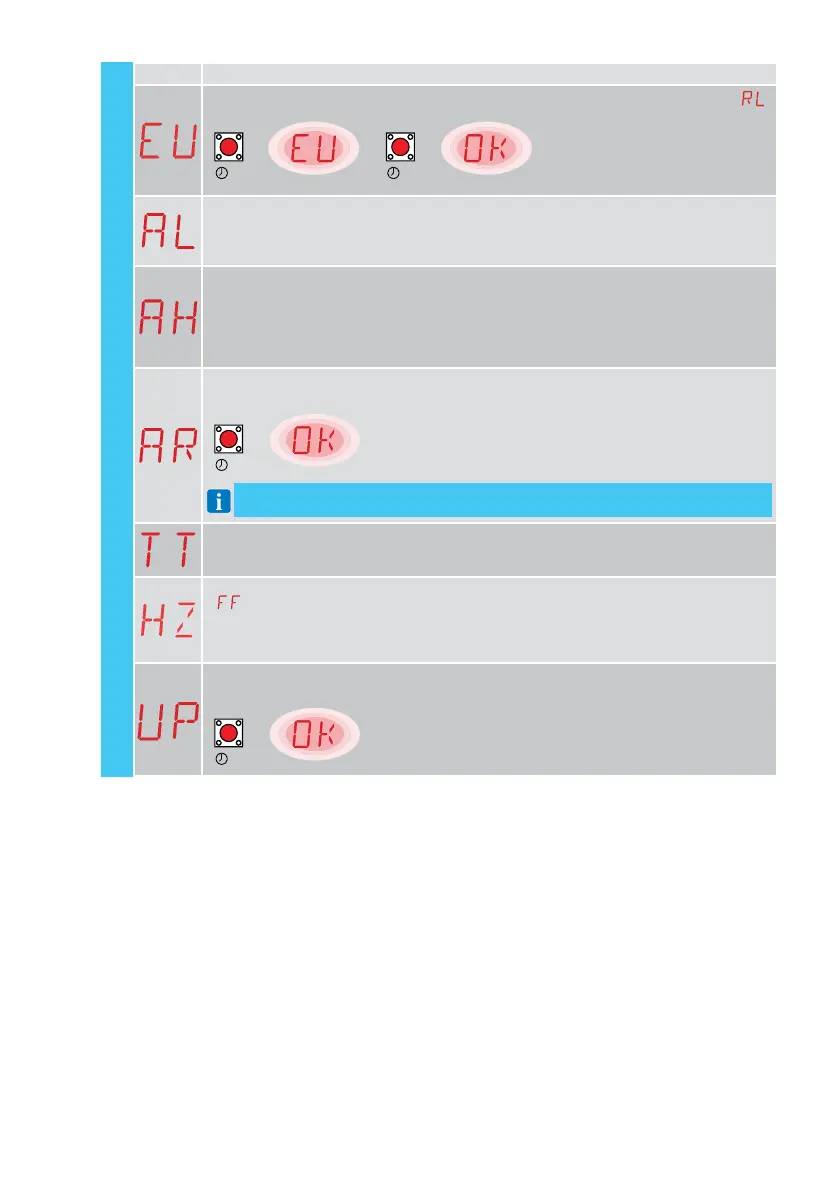

SF - Special functions
Display Description
EU - Deletion of user configurations and last configuration set (can be called up from )
→
→→
2”
ENTER
2”
ENTER
AL - Alarm counter
Used to view, in sequence, the counters of alarms that have been triggered at least once (alarm
code + number of times triggered).
With UP and DOWN, you can scroll through all the counters and see all the alarms recorded.
AH - Alarm log
Used to view, in sequence, alarms that have been triggered (up to a maximum of 20).
With UP and DOWN, you can scroll through the entire alarm log.
The display shows the alarm number and code, alternated.
The highest number corresponds to the most recent alarm and the lowest number (0) corre-
sponds to the oldest alarm.
AR - Alarm reset
Resets all the alarms in the memory (counters and log).
→
2”
ENTER
NOTE: when the installation has been completed, you are advised to delete the alarms
in order to facilitate future checks.
TT - Display of min/max temperatures recorded
- press for 2 sec to reset the values;
- minimum value with active right decimal point.
HZ - Mains power frequency detected (Hz)
-
displayed after power-on of control panel.
- the real measured value will be shown once the first movement has begun, and will be
updated with every subsequent operation.
- resolution is 1 Hz.
UP - Firmware update
Activates the card bootloader in order to update the firmware.
→
2”
ENTER
To Next Page
