AIR 2.2 INSTALLING AN AIR SYSTEM
WHEN MOUNTING THE BOTTOM-LINE ADAPTER DIRECTLY TO YOUR LUXE
®
GRIP FRAME, it must first be
disassembled by unscrewing and removing its pivot pin with a 1/16-inch allen wrench [FIG. 3]. The charging
handle and actuating pin will then be free to slide out the front of the ASA. The actuating pin should be very
lightly lubricated with GR33SE™ before it is reinstalled.
The ASA may be removed by first taking out the charging handle and actuating pin then sliding a 5/32-inch
allen wrench through each of the access holes in the bottom of the ASA into the heads of the ASA mount
screws [FIG.4] and unscrewing them. Once the ASA is free from the grip frame, its mount screws may be
slid through the central slot one at a time towards the center hole and lifted out the top.
When installing a new air system, accessory or mount, the grip must be removed and the battery removed
from the Luxe
®
(see HARDWARE 3.6.) Only use mounting screws which will reach through the air system,
accessory or mount, and fully engage the screw threads in the grip frame, but not extend into the open
space of the grip frame far enough that they interfere with the placement of the battery. Installing mount
screws while the battery is removed will ensure that a screw which is too long does not accidentally damage
the lithium-polymer battery
AIR 2.3 REGULATOR GRIP PANEL
THE REGULATOR GRIP PANEL ON YOUR LUXE
®
CAN BE REMOVED to service the integrated air regulator
or simply to swap it out for another color or style.
Use a 3/8-inch allen wrench to unscrew the integrated air cover lock from the bottom of the foregrip. Once
the cover lock is removed, you may then lift out the grip panel by pulling forward from the bottom [FIG. 5].
The top of the grip panel will pivot and then release. When reinstalling the grip panel, seat the alignment pin
at its top first, then swing it into position before securing it with the cover lock.

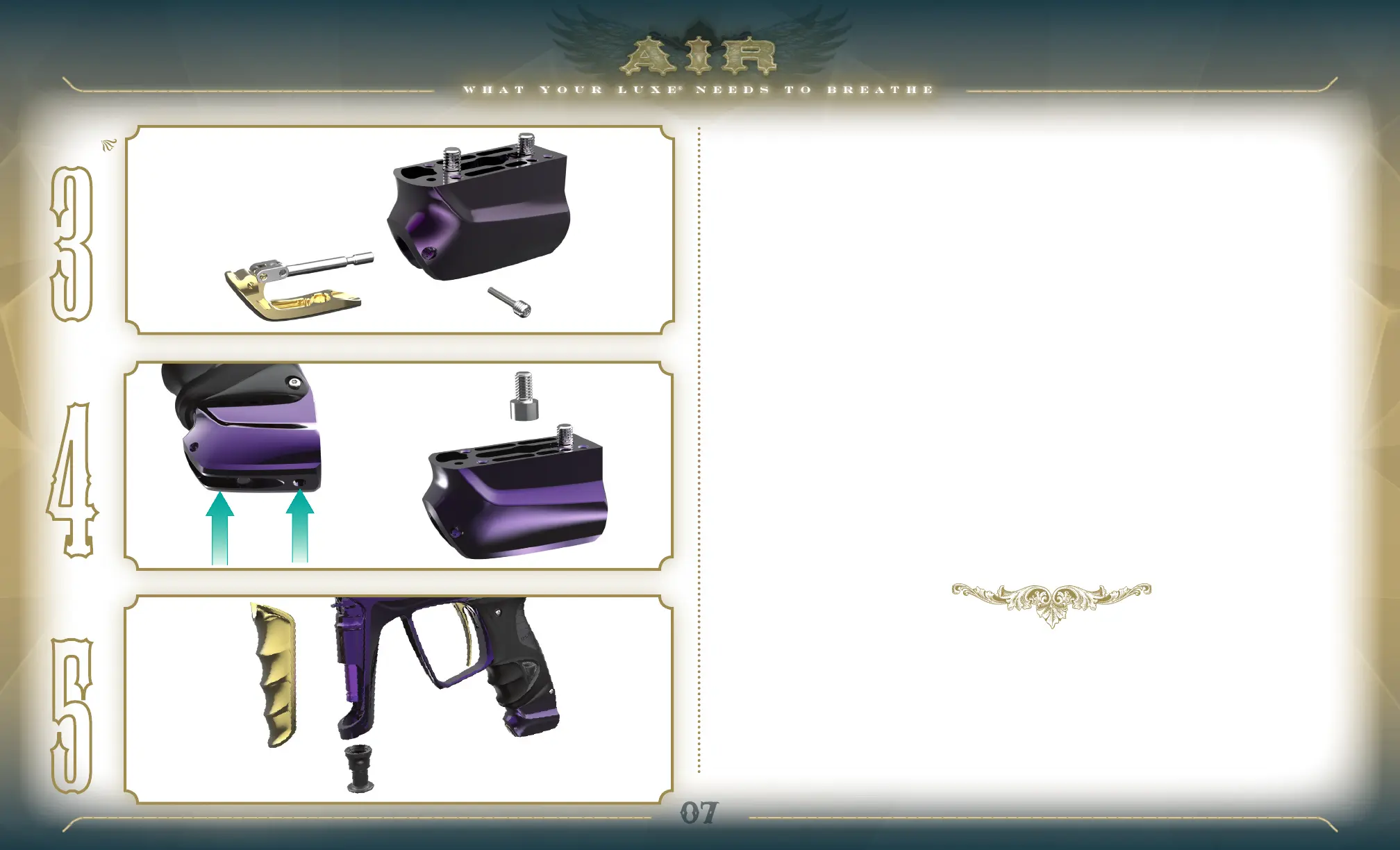

FIG.
