ADVANCED MAINTENANCE 6.6 THE LUXE
®
ICE ADVANTAGE
THE INTERNAL PARTS OF THE LUXE
®
POWER CORE ARE COATED with an Internal Ceramic Elastomer - ICE. This innovative finish combines the durability of ceramic, the
friction reduction of PTFE and the corrosion resistance of high-phosphor nickel into a cohesive layer of protection. An auto-catalytic reaction fuses this ultra-durable, super-slick
compound directly to the power core creating a surface so slippery that the Luxe
®
ICE can operate reliably even without lubrication. Properly lubricating all seals with GR33SE™
is still the key to a long service life between o-ring replacements, but going dry doesn’t mean the game is over.

BASIC GUIDE TO MAINTANING THE
LUXE
®
POWER CORE

1

18
 
LIFT END CAP REAR
 
LIFT PIVOT PIN
 
LIFT END CAP REAR MOUNT SCREWS
 
LATCH PIN PIVOT SCREW
 
LATCH PIN
 
TAIL COVER MOUNT SCREW
 
LIFT
 
TAIL COVER
 
LIFT END CAP BALL SEALS

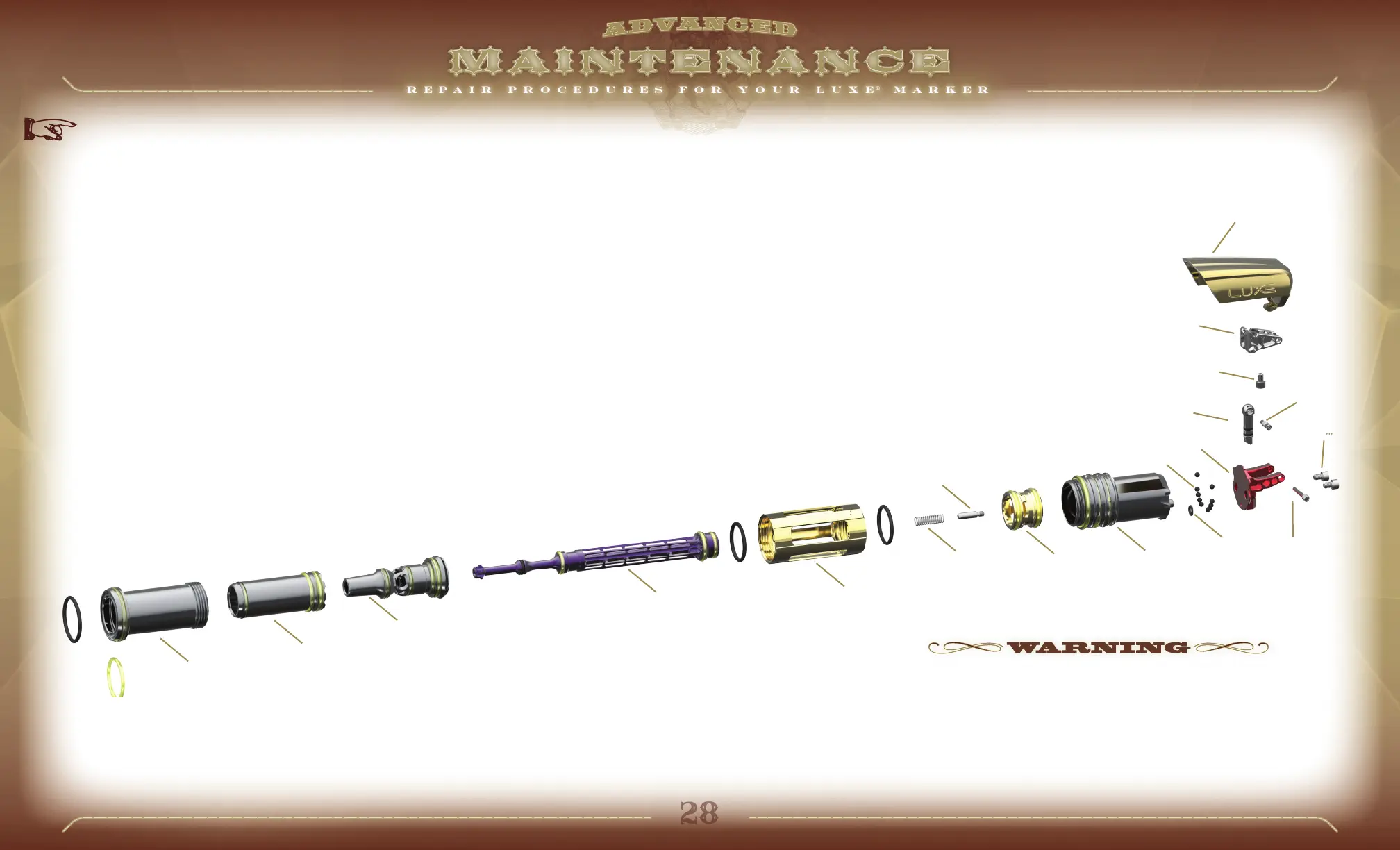

MAIN LUXE® POWER CORE COMPONENTS
 
CORE CAP
 
BOLT
 
BOLT GUIDE
 
SPOOL
 
FIRE CHAMBER
 
SPOOL RETURN SPRING
 
SPRING GUIDE
 
SHUTTLE
 
LIFT END CAP FRONT
 
LIFT END CAP ORING SEAL
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

17

2

3

4

5

6

7

8

9

10

11

16

15

12

13

14
28

19
DO NOT DISASSEMBLE PARTS

9 AND

11 UNLESS NECESSARY TO FIX A LEAK
