1

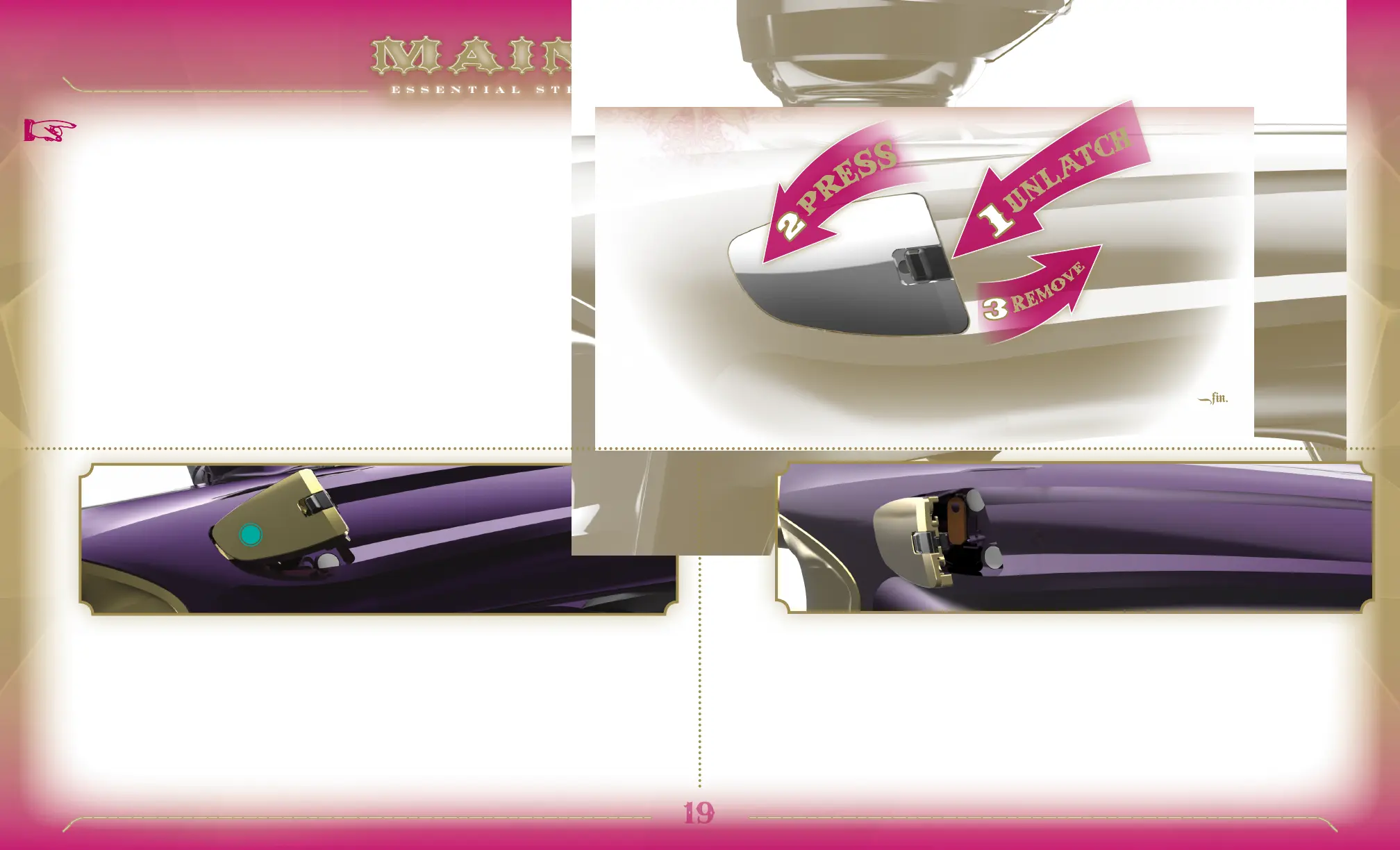

STEP ONE PRESS DETENT ASSEMBLY
PRESS ON THE FORWARD POINT OF THE BALL DETENT ASSEMBLY while sliding the Quick-Snap
latch forward. This will separate the magnets at the rear, pushing the assembly’s back edge out
from the Luxe
®
body.
BASIC GUIDE TO REMOVING THE
LUXE
®
QUICK-SNAP DETENT ASSEMBLIES
THE LUXE® BALL DETENT ASSEMBLIES PROVIDE INSTANT TOOL-FREE ACCESS FOR
CLEANING THE BALL DETENTS AND VISION SYSTEM IN THE FIELD.
2
STEP TWO REMOVE DETENT ASSEMBLY
GRASP THE BALL DETENT ASSEMBLY from the rear, and lift outward, away from the Luxe
®
body.
MAINTENANCE 5.2 BALL DETENTS & VISION EYES
THE LUXE® QUICK-SNAP BALL DETENT ASSEMBLIES serve both to prevent
double-feeding of paint, and to protect the Vision™ anti-chop eye system. Their
unique magnetic and physical latch systems keeps them secure, while allowing for
easy tool-free maintenance. There is a ball detent assembly on each side of the
marker, and both should be cleaned and inspected in the same manner.
