STEP TWO REMOVE THE BOLT
BEGIN DISASSEMBLING THE LUXE
®
POWER CORE by unscrewing the core cap from the fire
chamber. This will release the bolt which is captive between the two parts.
1
MAINTENANCE 5.1 LUXE® POWER CORE
THE HEART OF YOUR LUXE
®
is the Luxe
®
Power C ore. This single
module comprises both the marker's bolt and exhaust valve
system. Its compact, tool-free design makes the Luxe
®
incredibly
fast and simple to maintain. The Luxe
®
should be disassembled
and cleaned any time it shows erratic performance, becomes
contaminated with paint, dirt or other debris, or for preventative
maintenance after 3 or 4 days of use.
PULL
PUSH
With THUMB


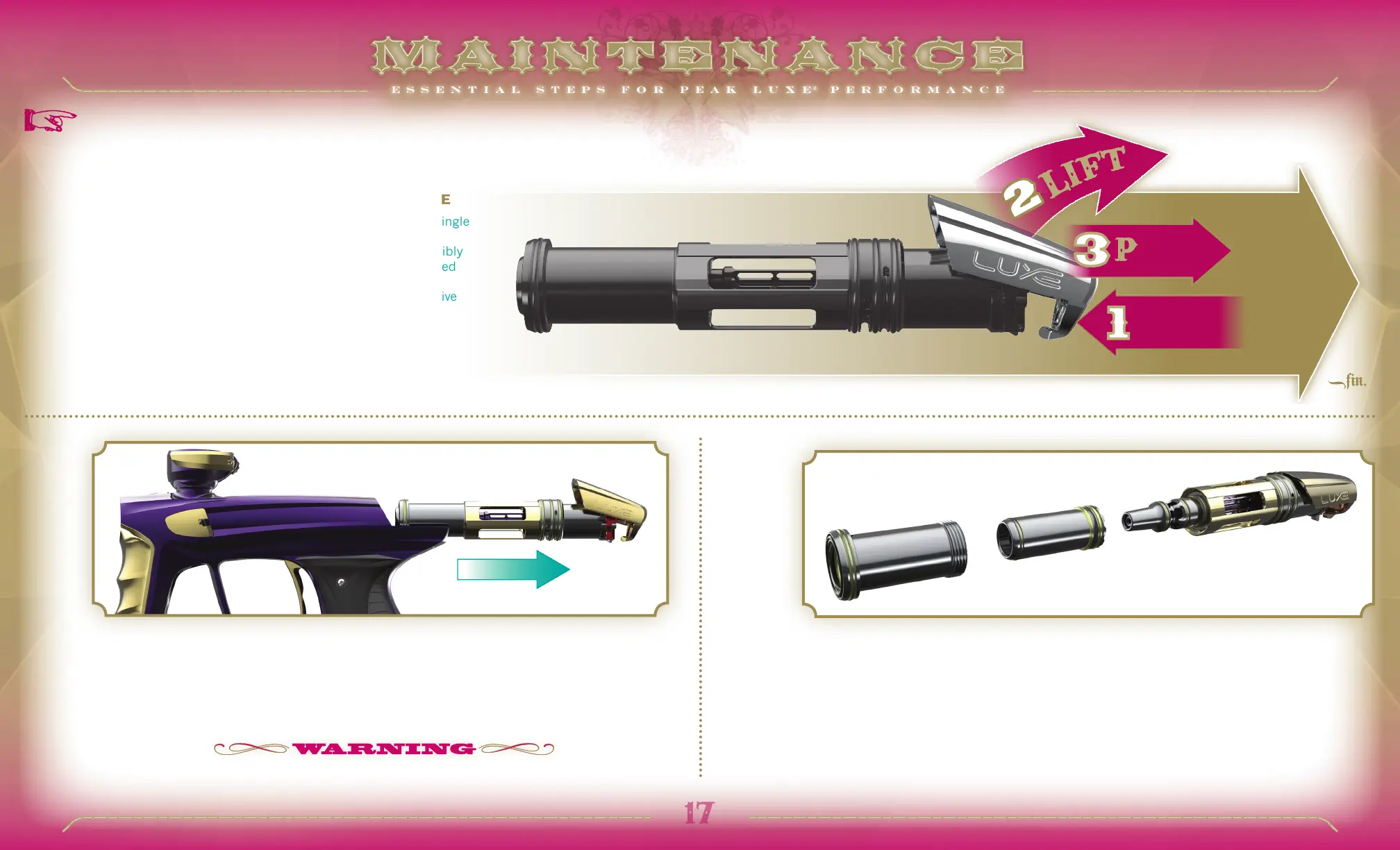

BASIC GUIDE TO THE
LUXE
®
POWER CORE QUICK-STRIP
THE INNOVATIVE LUXE® POWER CORE CAN BE REMOVED IN SECONDS, NO TOOLS REQUIRED.
STEP ONE UNLOAD AND DEGAS YOUR LUXE
®
UNLOAD AND DEGAS YOUR LUXE
®
(see HARDWARE 3.3.) Turn off and or remove the gas supply.
Remove the barrel then press in on the bottom-rear of the quick-strip latch, lift its front, and wait for
the Luxe
®
to completely depressurize before, pulling the Power Core out of the Luxe
®
receiver. If the
Power Core has not been removed recently it may need to be wiggled slightly to break o-ring friction.
The Luxe
®
will fire a low-power shot if the Power Core is removed while still under pressure.
