15
INSTALLATION
All the left, right, front and rear
designations in this manual are as
viewed by the operator facing the
control console.
LOCATION
1. Locate the machine to provide sufficient
clearance for: (a) material loading and
unloading; (b) all door openings; (c) head
elevation; (d) chip conveyor removal; (e)
maintenance and lubrication procedures; (f)
operation and supplied machine accessories.
2. Accessories such as roller stock conveyors will
require additional work space.
OSHA NOTICE
OSHA regulation 1910.212(5B). Machines
designed for a fixed location shall be
securely anchored to prevent walking or
moving.
UNPACKING
1. The machine is fastened to and shipped on a
wooden skid. Overseas shipments are also
crated.
2. Remove all protective covers, strapping, crating,
etc. Then: (a) remove all bolts which fasten the
machine to the shipping skid; (b) do not remove
the shipping bracket that attaches the saw head
to the vise base yet; (c) remove any loose items
and boxes that may have been placed on the
machine; (d) inspect the machine and all parts
for shipping damage. Claim procedures are
listed on the manual’s inside front cover.
LIFTING
NEVER lift the machine by its sawing head.
1. The chart below shows the recommended
capacities for lifting the machine.
C-3028NC C-4033NC C-420NC
Crane 3 Ton 3 Ton 4 Ton
Fork lift 3 Ton 3 Ton 4 Ton
C-5650NC C-560NC C-6260NC
Crane 5 Ton 6 Ton 6 Ton
Fork lift 5 Ton 8 Ton 7,5 Ton
2. Four (4) permanent lifting eye lugs are provided
for machine lifting purposes: (a) two (2) lifting
lugs are located at the rear of the index vise
roller table; (b) two (2) other lifting lugs are
located on the machine’s front left and right
corners.

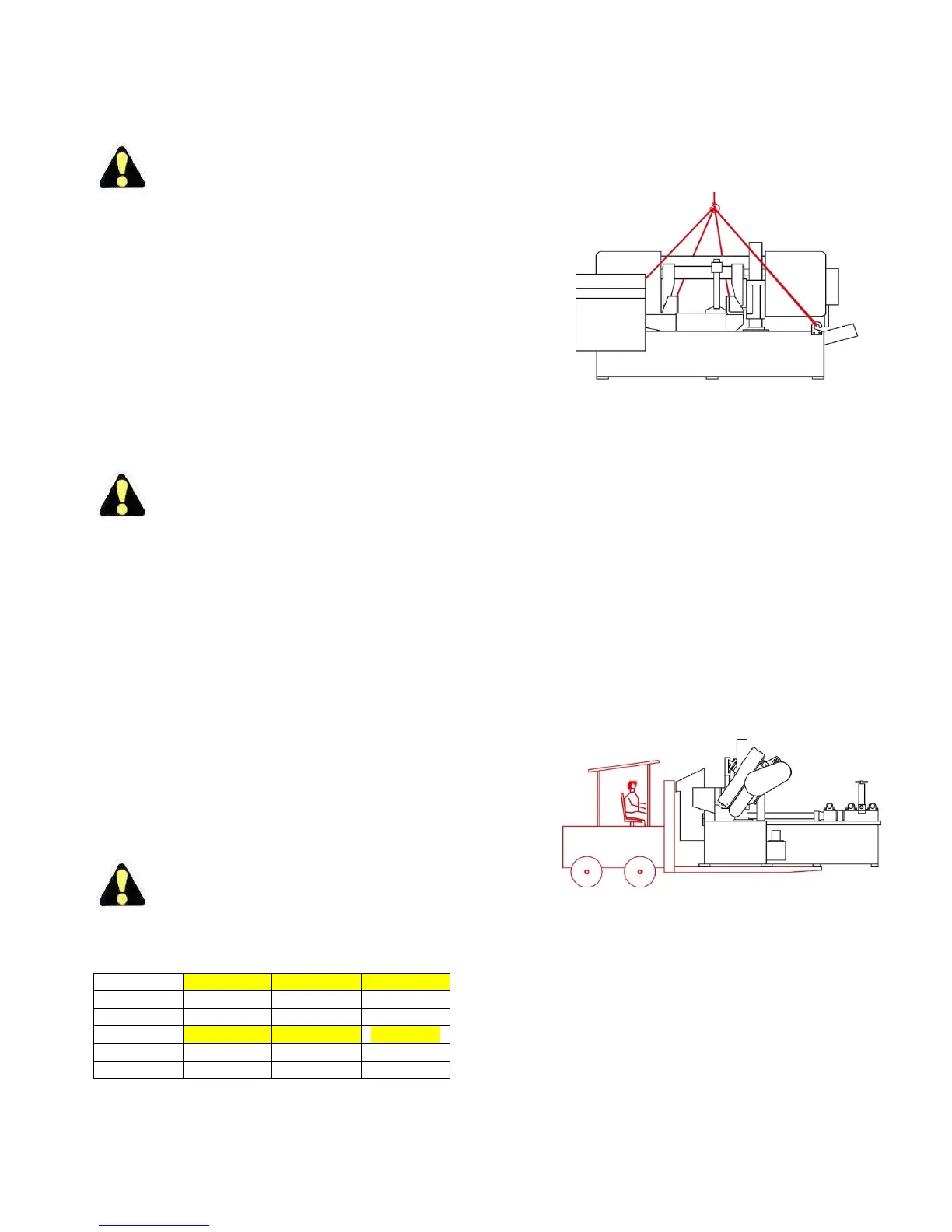

Lifting by overhead hoist.
3. Using chains or heavy duty straps attached to
the lifting lugs, it is recommended that lifting and
transporting of the machine be done with an
overhead hoist.
4. It is also recommended to protect painted
surfaces from damage due to the lifting chains
coming into contact with the machine surface.
5. If a fork lift truck is used, make sure it has
appropriate capacity to lift the machine safely.
It is recommended that you lift the machine from
the front as shown.
Lifting by fork lift truck.
6. Roller stock conveyors can be lifted and
transported by overhead hoist, fork lift, or by
other means that provide adequate safety
precautions.
