INSTALLATION

2-26 L025317 Issue 1 March 2011

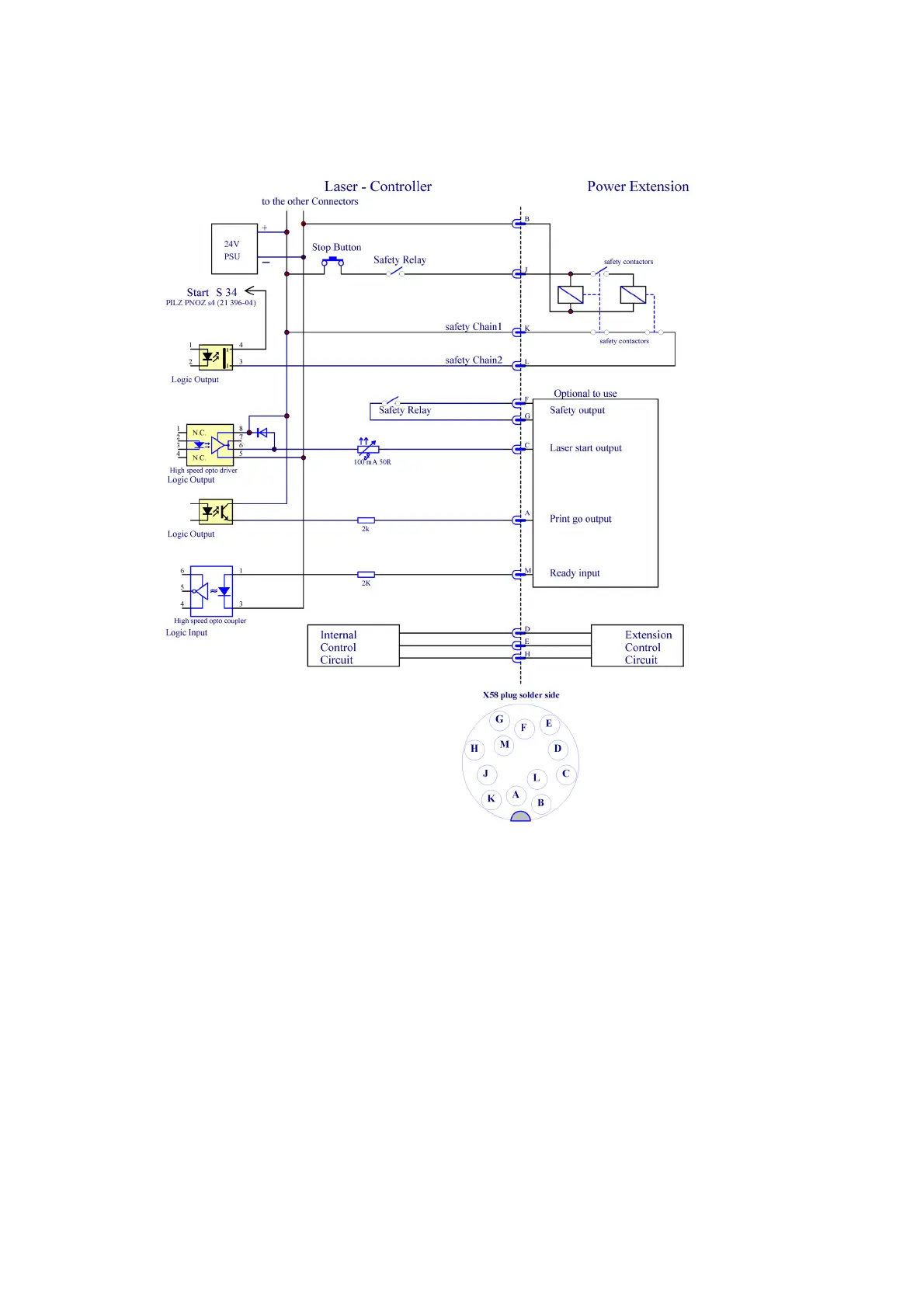

X58 Connector Schematic - Power Extension

Only needed to connect the power extension box for 55 Watt systems.

Do not connect anything else to this connector.

Domino D Series - X58 Connector Schematic - Power Extension
