Domino D Series User Manual

OPERATION
L025317 Issue 1 March 2011 3-61
Example 2
To insert a text message "Text2" follow the steps shown for example 1 from
step 1 and 2 to log on as "user4" and open the Message Editor for text entry.
(1) Using the back key or delete key remove the default text in the dialogue
box and enter "Text2" without the quotes as described in example 1
but for this example click Next to select a font.

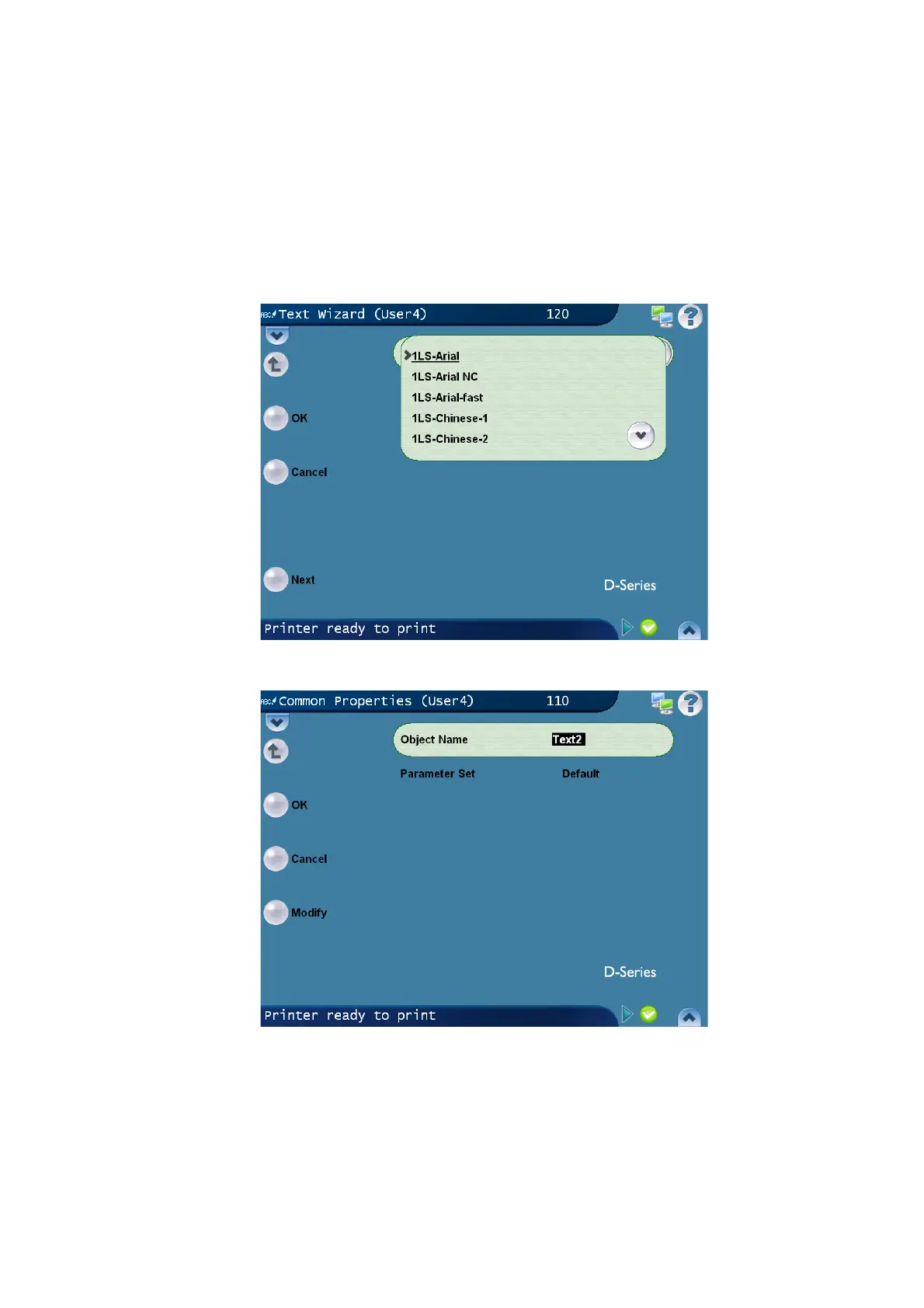

(2) Select a font from the dropdown list (select 1LS-Arial) and click ’Next’.

Domino D Series Specifications

General

Print Technology	Thermal Transfer
Print Speed	Up to 300 mm/s (12 ips)
Print Resolution	300 dpi
Ink Types	Thermal transfer ribbon
User Interface	Touchscreen
Connectivity	Ethernet, USB, Serial
Operating Temperature	5°C to 40°C (41°F to 104°F)
Supported Materials	Paper
Operating System Compatibility	Windows
