Domino D Series User Manual

INSTALLATION
L025317 Issue 1 March 2011 2-41
FUME EXTRACTION SYSTEM
Domino recommend installing the DPX500, DPX1000, DPX1500 or the
DPX2000 fume extraction and purifier system. These are designed to protect
personnel from hazardous dust and fumes that may be produced by the laser
marking process.
The DPX1000 is a general purpose fume extraction system that removes
particulates. The DPX2000 fume extraction system has an additional filter and
a chemical pad to remove odours and toxic gases. The DPX500, DPX1000,
DPX1500 and DPX2000 will be equipped with a connector for the Domino
D-Series Laser System.
WA R N I N G : W h e n p r i n t in g onto PVC material, the
DPX2000 Extractor should be used due to the
toxic and corrosive gases expelled during the
process.
For details, see the manual included with the Fume Extraction system.

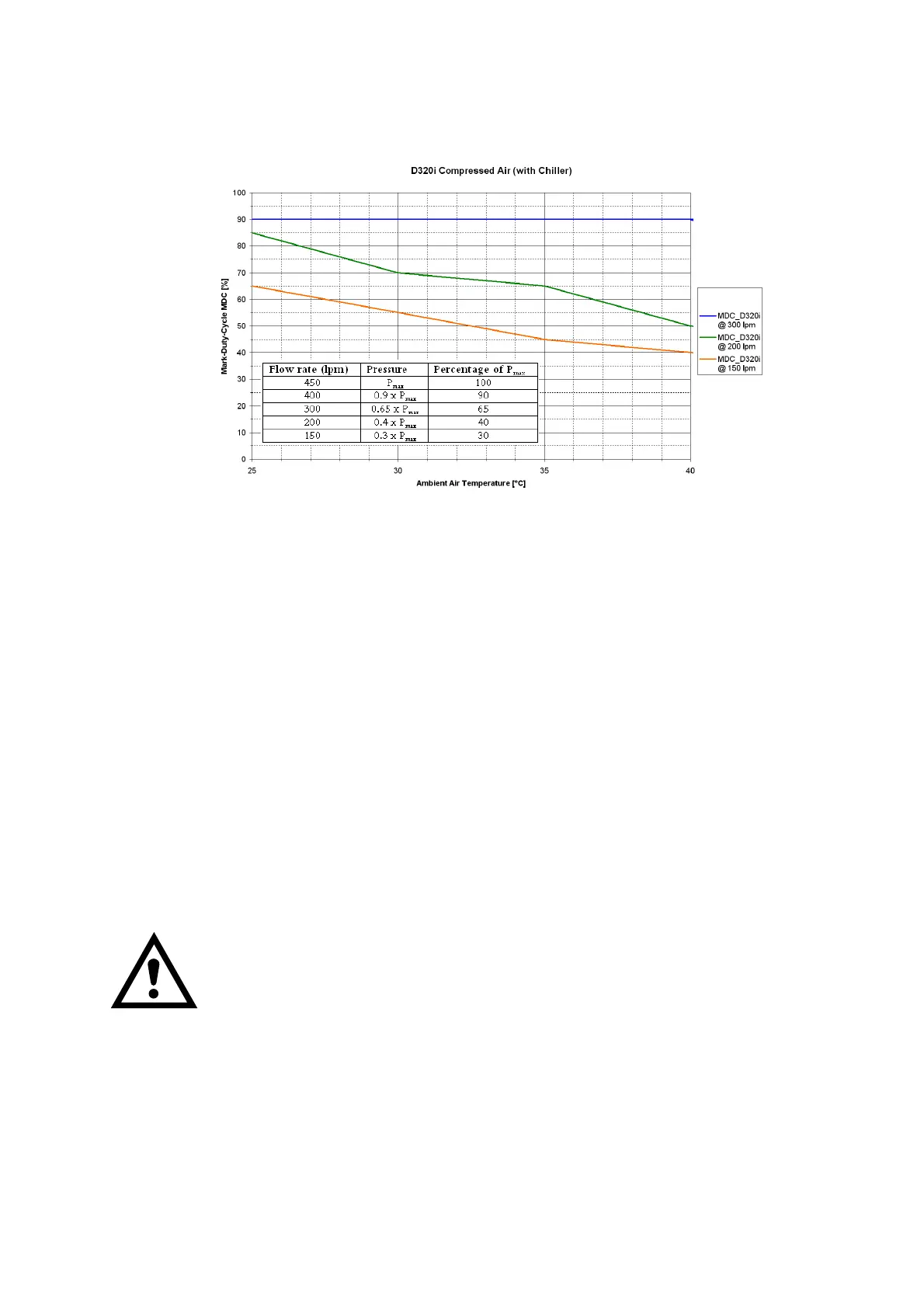

D320i Ambient temperature (in °C) vs. maximum mark duty cycle (in %) depending
on airflow (in LPM)
With chiller
