Doosan DP158LDF - General Information; Construction

9. Intake/exhaust system
157
General information

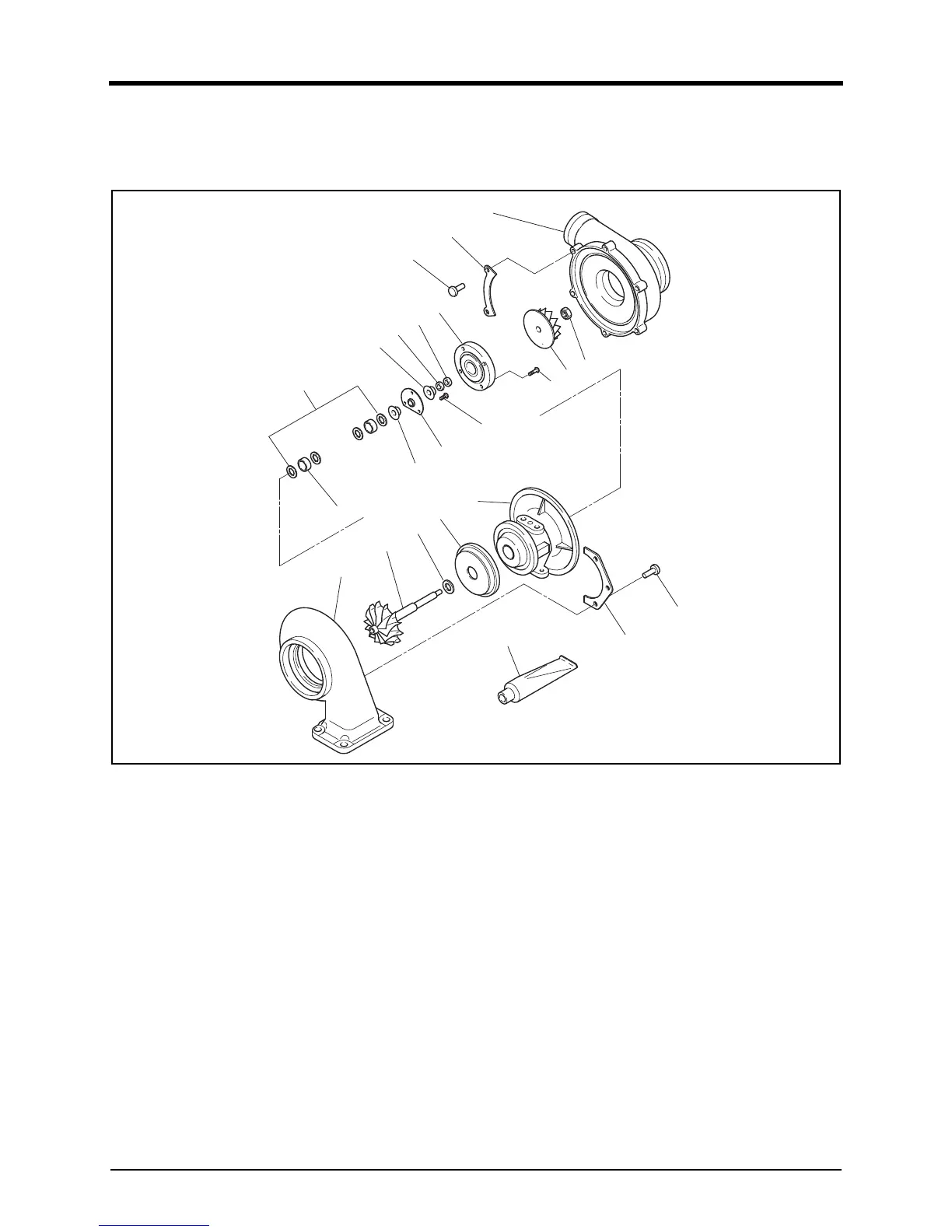

Construction
DV2213108A
No. Name No. Name No. Name
1. Turbine shaft 10. Bolt 21. Heat screen
2. Thrust bush 11. Clamp 22. Compressor housing
3. Oil shut off 13. Bearing housing 23. Clamp
4. Fixing nut 14. Retainer ring 24. Bolt
5. Seal ring 15. Seal plate 27. Liquid gasket
6. Seal ring 16. Thrust bearing 30. Loctite
7. Seal ring 17. Journal bearing 31. Liquid anti-burn angents
8. Compressor wing wheel 18. Screw
9. Turbine housing 19. Screw
22
23
25
15
19
14
18
16
17
13
21
11
10
27, 30, 31
7
4
8
6
2
5
9
1
3
