11. Electric system
186

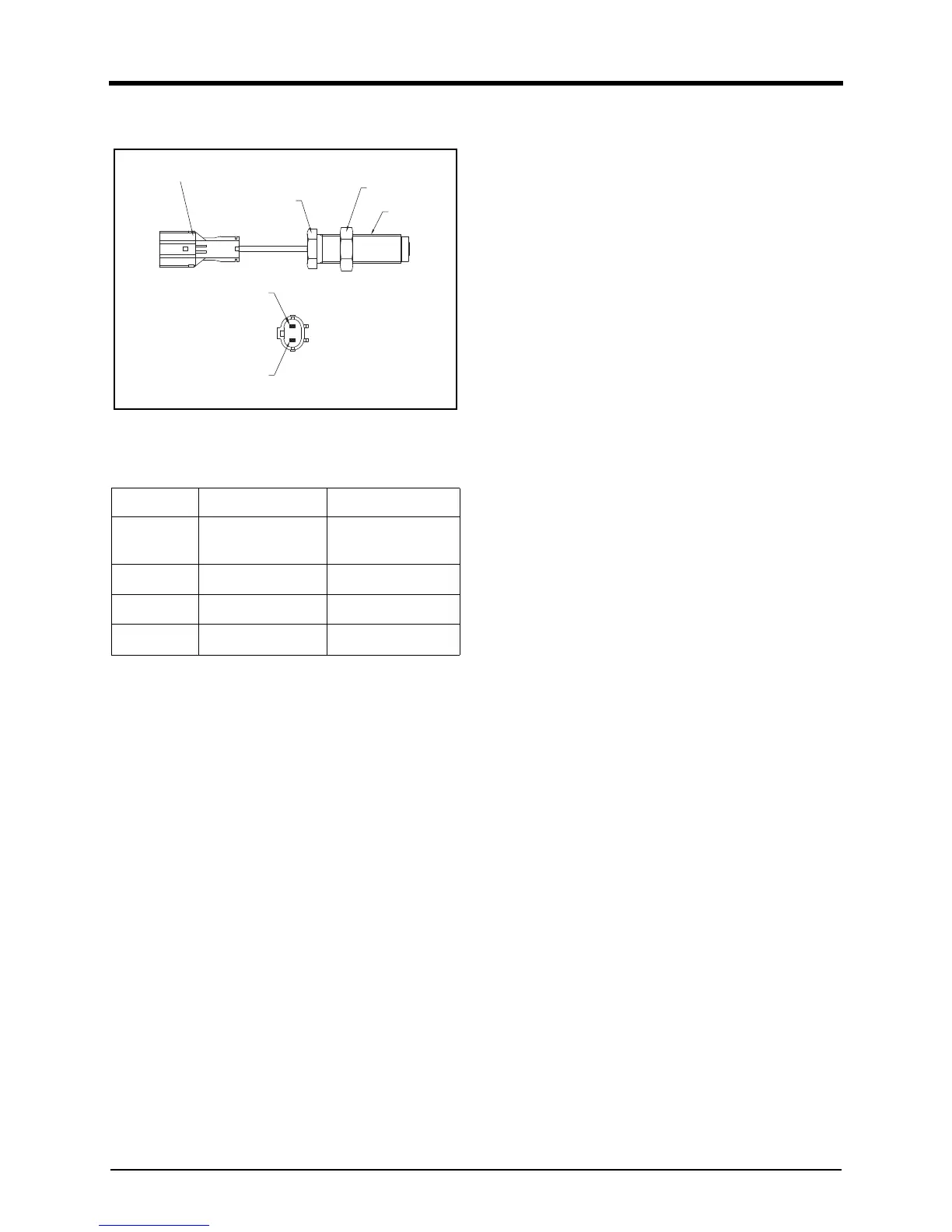

Magnetic Pick-up
DV2213146B
1. Operating temperature: -40°C ~ 120°C
2. Output Volt (P-P)
3. DC resistance: 1.8kΩ ± 15%
4. Inductance: 3.1H ± 25%
5. Insulation Resistance: 10MΩ or more at 500V DC
6. Resistance (B ~ Y): 350Ω ± 10%
above 14V above 7V
Gear
Module M=3,
Teeth Z=32
M=3, Z=32
Clearance
1.0 ± 0.1mm 1.0 ± 0.1mm
Revolution 1,000 ± 20 RPM 1,000 ± 20 RPM
Load Open
5kΩ Resistive
KET:MG640322-5
SW 19
Lock Nut
M16x1.5
0.5 B
GND
0.5 Y
SIGNAL
