Intake/exhaust system
General Information
The air filter purifies dust and foreign substances included
in the air and supplies clean air into the engine. The air
filter is directly related to engine lifetime, emissions, and
engine output. Please periodically check, clean, and
replace the air filter.
Air Filter
• Air cleaner is mounted on the engine to purify the air
for combustion.
• The intervals at which the air cleaner requires
servicing depend on the specific operating conditio
ns
e
ncountered.
• Clogged air filters may cause black smoke and re
duce
po
wer.
• A check should be made from time to time to see
that the fastening elements securing the air cleaner to
the intake manifold seal the connection tightly.
• Any ingress of unfiltered air is liable to cause a hi
gh
r
ate of cylinder and piston wear.

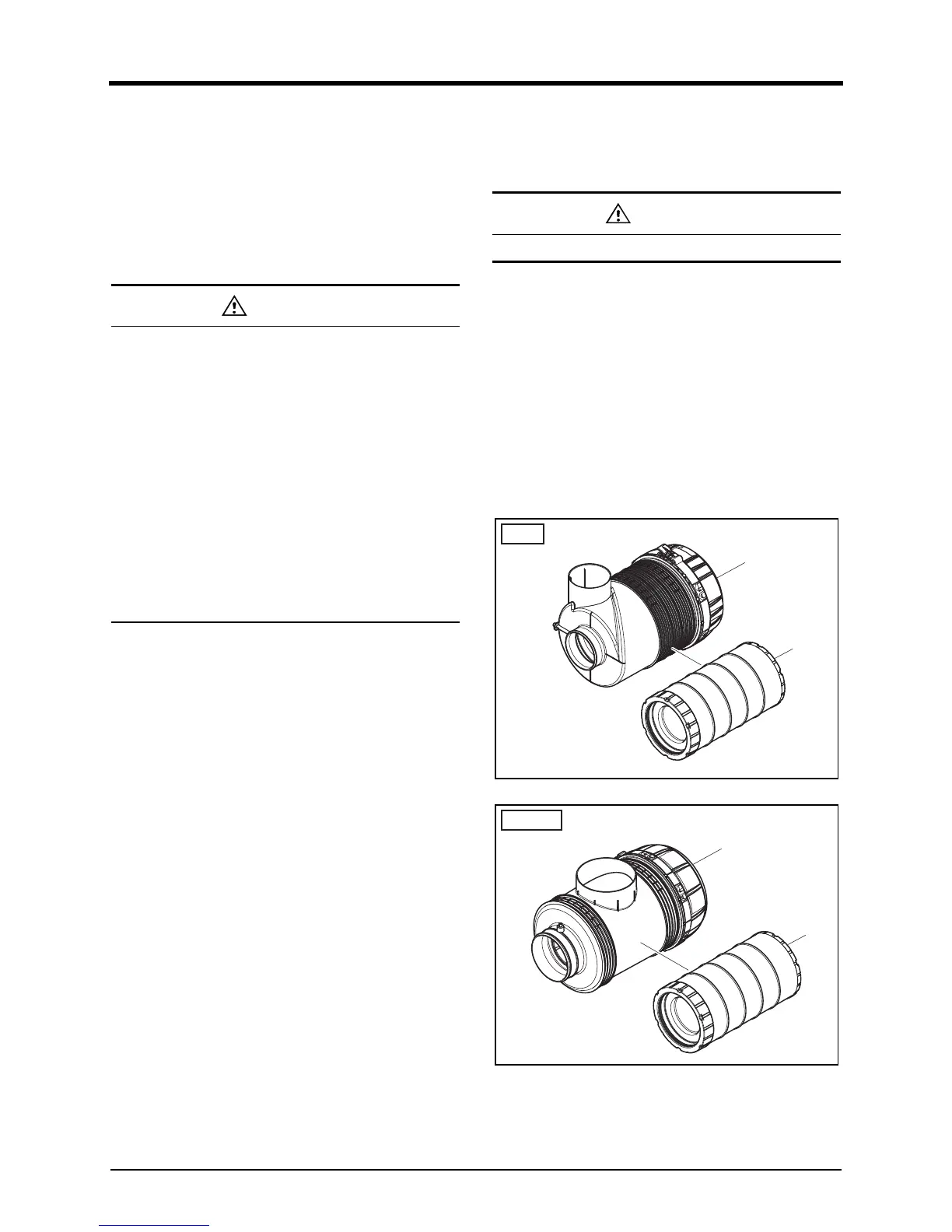

Disassembly of air filter
1. Empty the dust bucket periodically. The dust should
not exceed the half of the dust bucket capacity.
2. You can disassemble the dust bucket by removing tw
o
cl
amps. Remove the dust bucket cover and empty t
he
dust
inside.
3. Assemble the cover and dust bucket accurately with
care.
4. For easy alignment, the cover has dent and the dust
collector has a protrusion. Here is the position where
a filter is mounted horizontally, check the “TOP” mark
on the air filter canister.
DV2213029A
DV2213029A
• Do not operate the engine when the air filter is
separated from the engine.
• Use specified air filters only. Using unauthoriz
ed
o
r remanufactured air filters may result in critical
faults.
• Foreign substances in the engine m
ay cause
a
brasion inside the engine.
• Immediately exchange a damaged air filter wit
h a
new one.
• Be careful not to let foreign substances flow int
o
e
ngine or damage the air filter related electri
c
a
pparatus when replacing an air filter.
• Be careful not let dust inside when assemblin
g
th
e air filter.
