11. Electric system
189

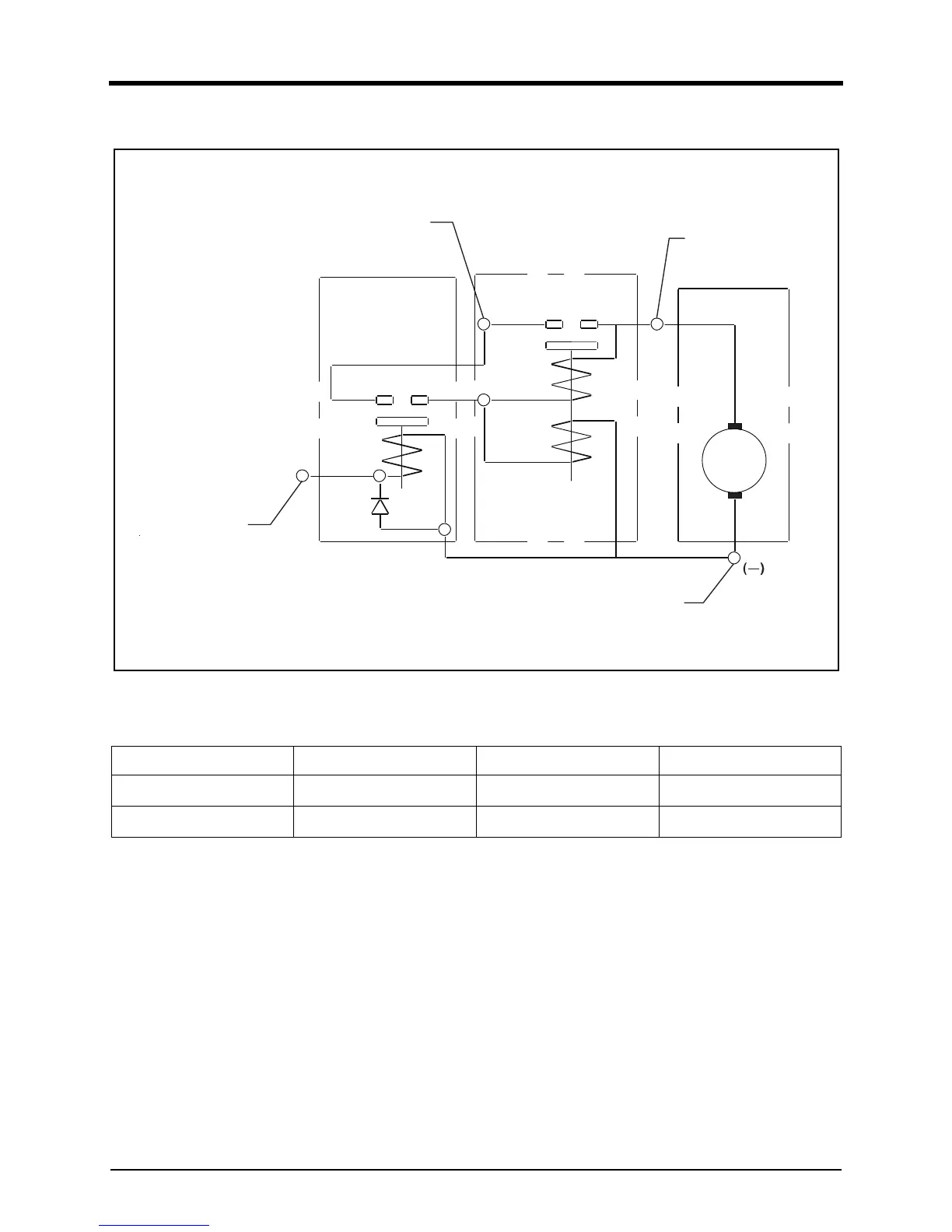

Wiring Diagram
DV2213140A
Resistance
“Battery” Terminal
Relay
Solenoid
Motor
M
“Ground” Terminal
“Switch” Terminal
M Terminal
Item + - Spec.
Relay Switch Terminal Relay Case
23.5kΩ ± 2.35
Solenoid Switch Terminal M Terminal
0.124Ω ± 5%
