Doosan DP158LDF - Switches and Sensors; Temperature Switch; Temperature Sensor; Pressure Sensor & Switch

11. Electric system
185

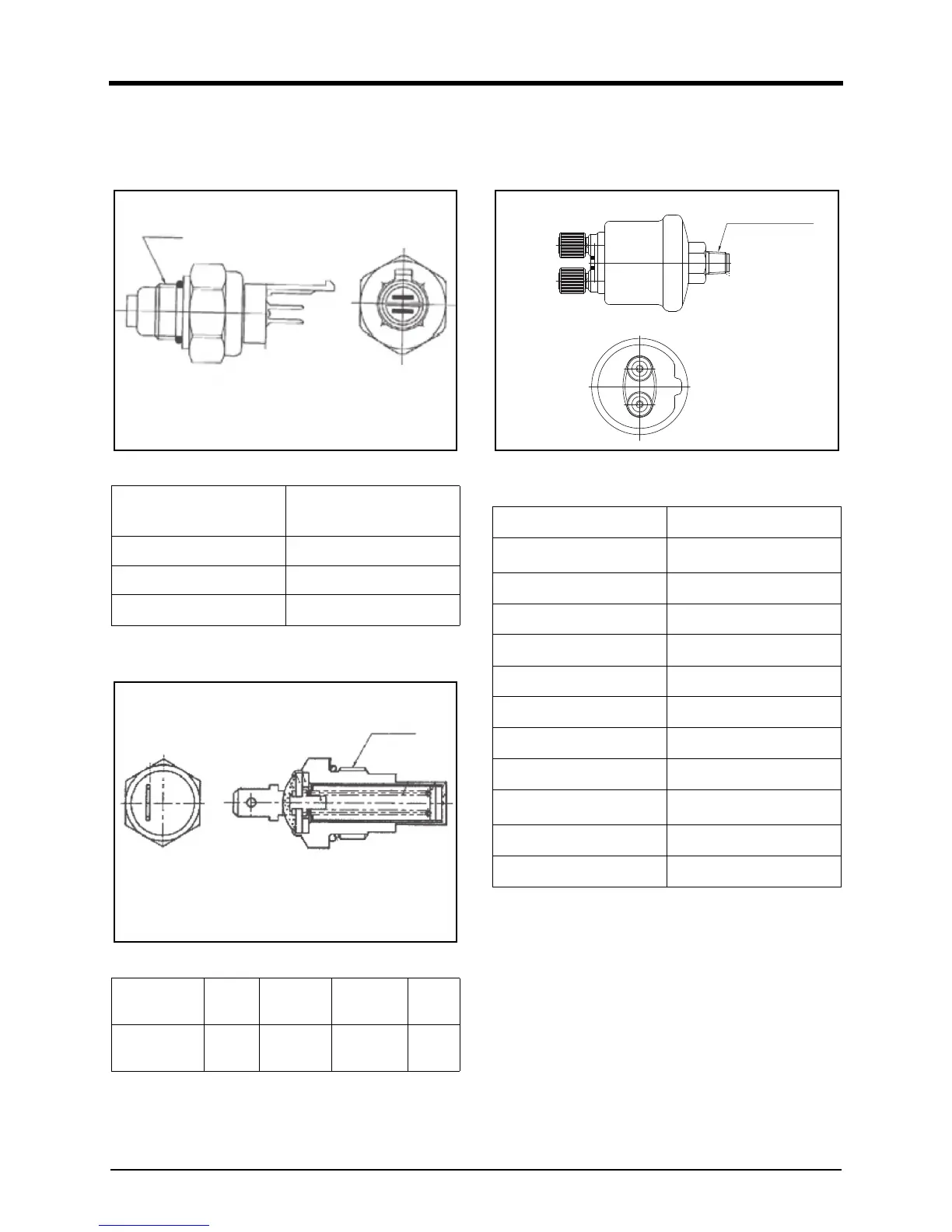

Switches and sensors
Temperature Switch
DV2213141A
Temperature Sensor
DV2213142A
Pressure Sensor & Switch
DV2213143B
1. Output characteristic
2. Warning output: switch(WK) to GND at 0.5bar ±
0.2bar
3. Max. pressure: 30 bar (momentary 2sec)
4. Operating temperature: -30°C ~ 100°C (Max. 120°C,
1h)
Operation Temperature
ON: 103°C ± 3°C, OFF:
96°C
Current Capacity DC12V, 9A
TYPE Normal Open
Insulation Resistance
more than 10MΩ
Temperature
(°C)
50 80 100 120
Resistance
(Ω)
153.9 47.5~58.0 26.2~31.3 16.1
M16x1.5
M16x1.5
Pressure (bar)
Resistance ( Ω )
0
10
-5
~ 10
+3
(1.5)
31 ± 4
2
52 ± 4
(3)
70 ± 4
4
88 ± 4
(5)
106 ± 5
6
124 ± 5
(7)
140 ± 10
(8)
155
-10
~ 155
+15
(9)
170 ± 25
(10)
184 ± 30
G
WK
NPTF 1/8-27
