11. Electric system
191

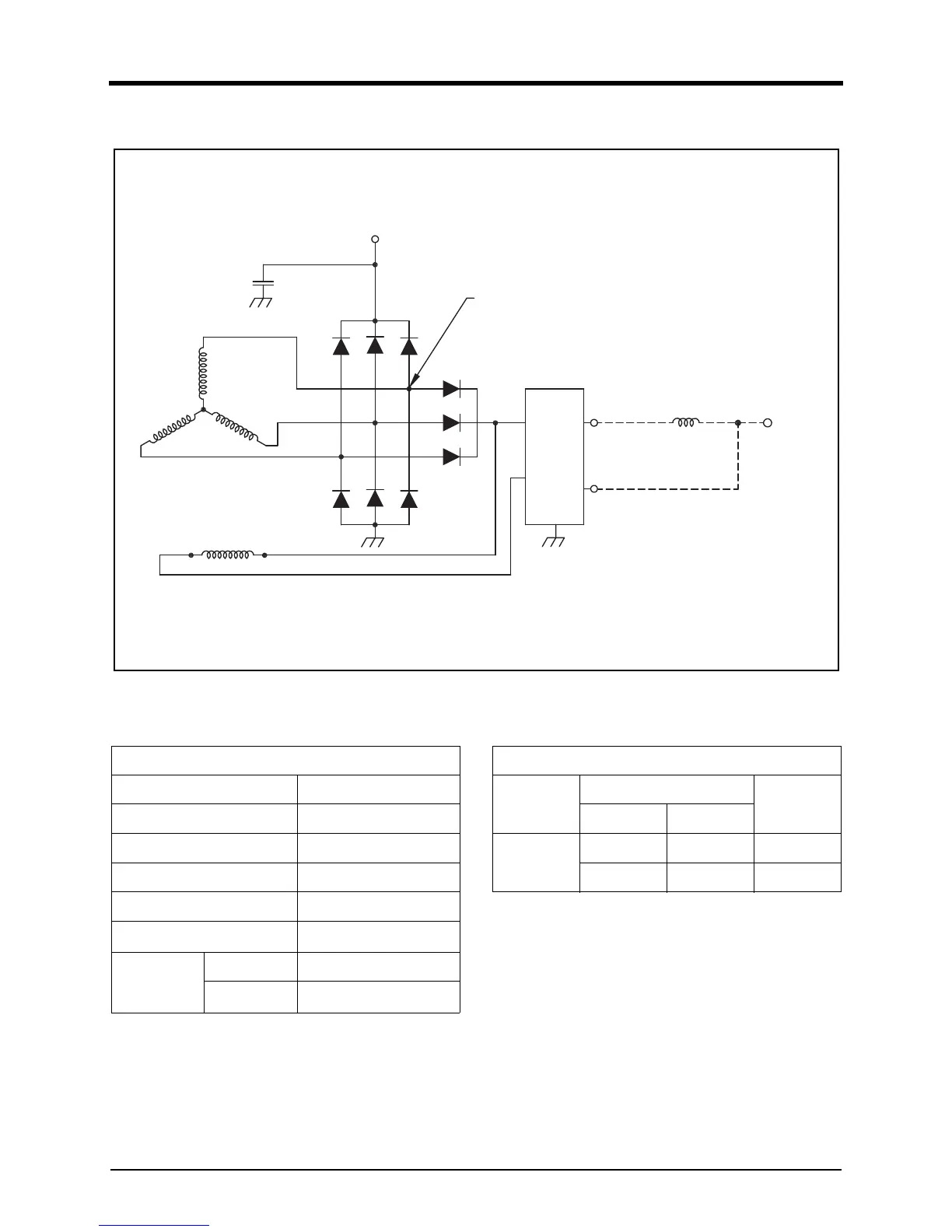

Wiring Diagram
DV2213138A
Specification Performance
Abnormally Charging
1. Measuring the voltage between the terminal and the
alternator body when operating.
Note) Measuring the voltage in order to check the wire
condition needs only the terminal when the engine
is stopped.
1) During operation
0.5 MFD
B+
P Termianl
Regulator
R
L
B+
R = 150~250 OHM
L
Specification
RATING Continuous rating
ROTATION DIRECTION Clockwise
BATTERY VOLTAGE 24V
TURN ON RPM Max. 1,050 RPM
SPEED IN USE 1,000 ~ 8,000 RPM
MAX. INLET AIR TEMP
105°C
POLARITY
SET.VOLT. 27.5V
TEMP.GRAD
10±3mV/°C
Performance
Voltage
(V)
Output current (A)
Speed
(RPM)
COLD HOT
27.5V
(22) 17.5 1,800
(48) 45 5,000
