Doosan DP158LDF - Engine Disassembly; Procedure of Disassembling an Engine

5. About the engine
82

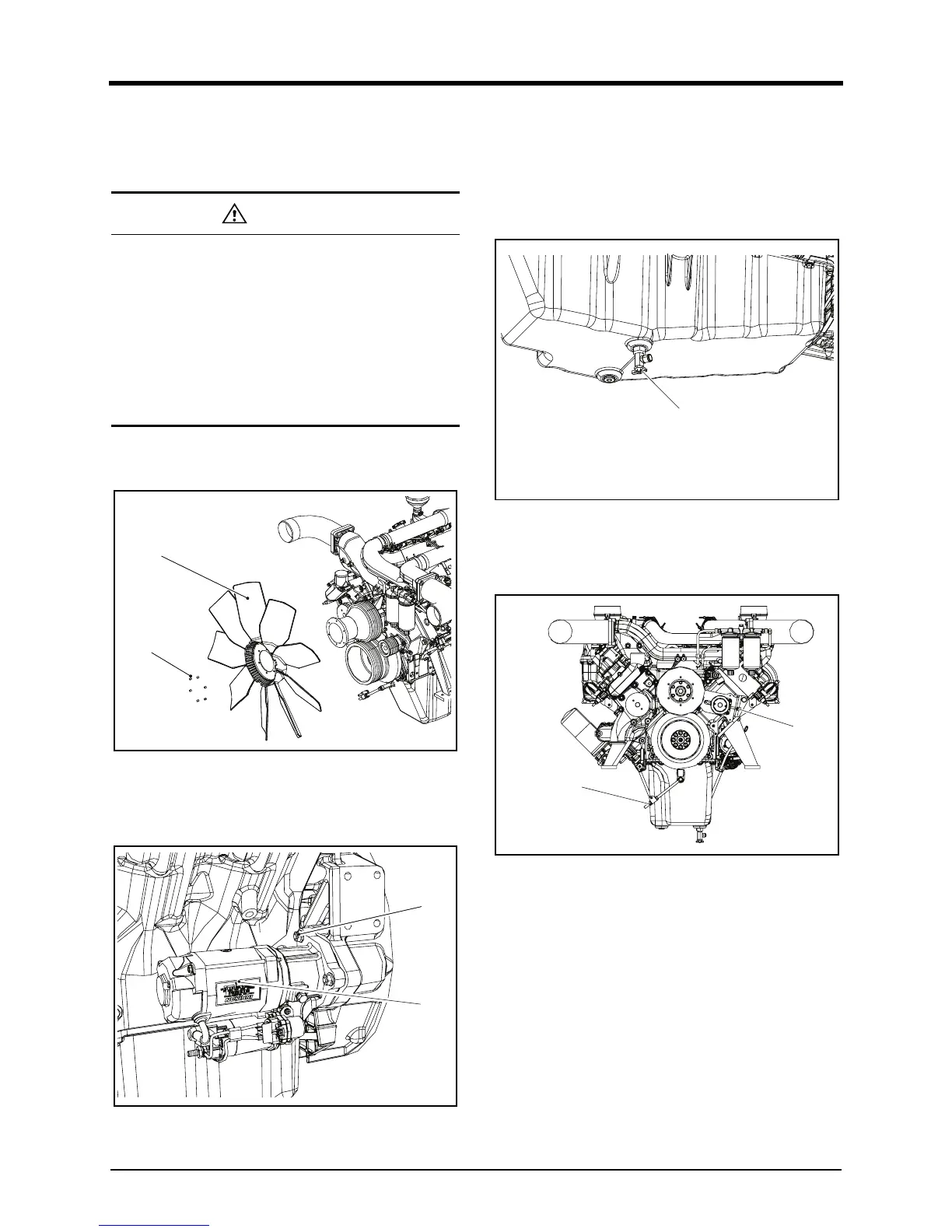

Engine Disassembly
Procedure of Disassembling an Engine
Disassemble the engine in the following order.
1. Remove the cooling fan.
DV2213052A
1) Loosen 6 fixing bolts(A).
2) Remove the cooling fan(B).
2. Remove the starter.
DV2213053A
1) Loosen 3 fixing nuts(A).
2) Remove the starter(B).
3. Discharge cooling water.
"Discharging the coolant" on page 48
4. Drain engine oil.
DV2213168A
1) Loosen the drain valve(A) of the oil pan and then
dr
ain engine oil.
5. Remove the V-belt.
DV2213054A
1) Turn the adjusting nut(A) and then remove the V-belt.
2) Turn the adjusting nut(B) and then remove the V-belt.
CAUTION
• Prepare tools and genuine parts necessary before
disassembling engine.
• Prepare a shelf for the storage of removed parts.
• Perform repairs in a light and clean space.
• Keep hands clean while performing repairs.
• Keep parts removed from the engine in the order
of disassembly.
• Do not allow parts removed from the engine to
touch each other or be mixed with other parts.
B
A
A
B
A
B
A
