5. About the engine
83

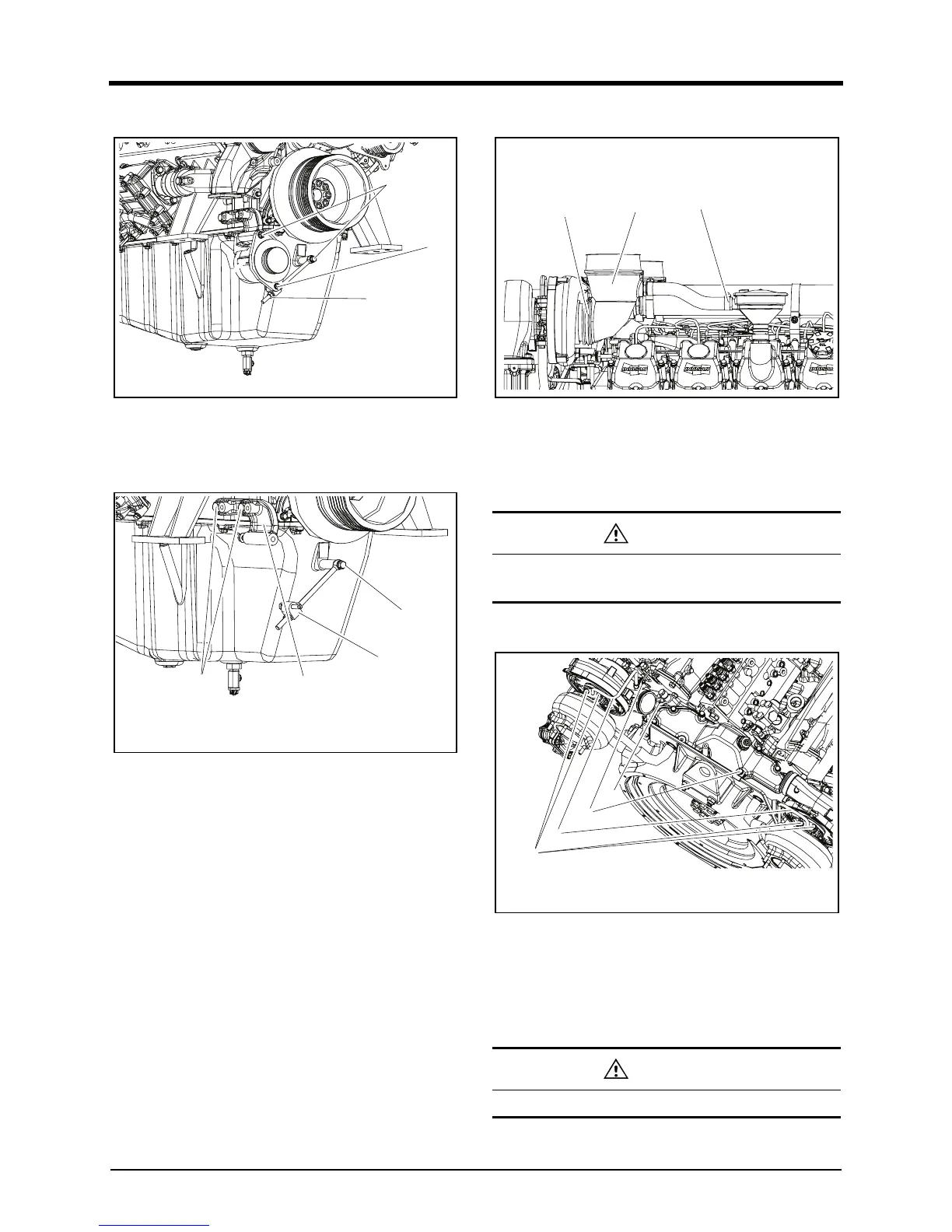

6. Remove the alternator.
DV2213055A
1) Loosen the fixing nut(A) and bolt(B).
2) Remove the alternator(C).
7. Remove the alternator bracket.
DV2213056A
1) Loosen the fixing bolt(A) and then remove the
e
yebolt(B).
2) Loosen the fixing bolt(C) and then remove the alter-
nator bracket(C).
8. Remove the inlet elbow.
DV2213057A
1) Loosen the hose clamp(A).
2) Loosen the V-clamp(B).
3) Remove the inlet elbow(C).
4) Remove the other side elbow as the same procedure.
9. Remove the oil delivery pipe.
DV2213058A
1) Loosen the the fixing bracket bolts(A) of the oil
delivery pipe.
2) Loosen the fixing bolts(B) of the oil delivery pipe.
3) Loosen the hollow screw(C).
4) Remove the oil delivery pipe(D).
A
B
C
C
B
A
D
CAUTION
Be careful not to loss the O-ring and insert parts
when removing the inlet elbow.
CAUTION
Be careful not to loss the O-ring and the gastket.
A
C
B
B
D
A
C
