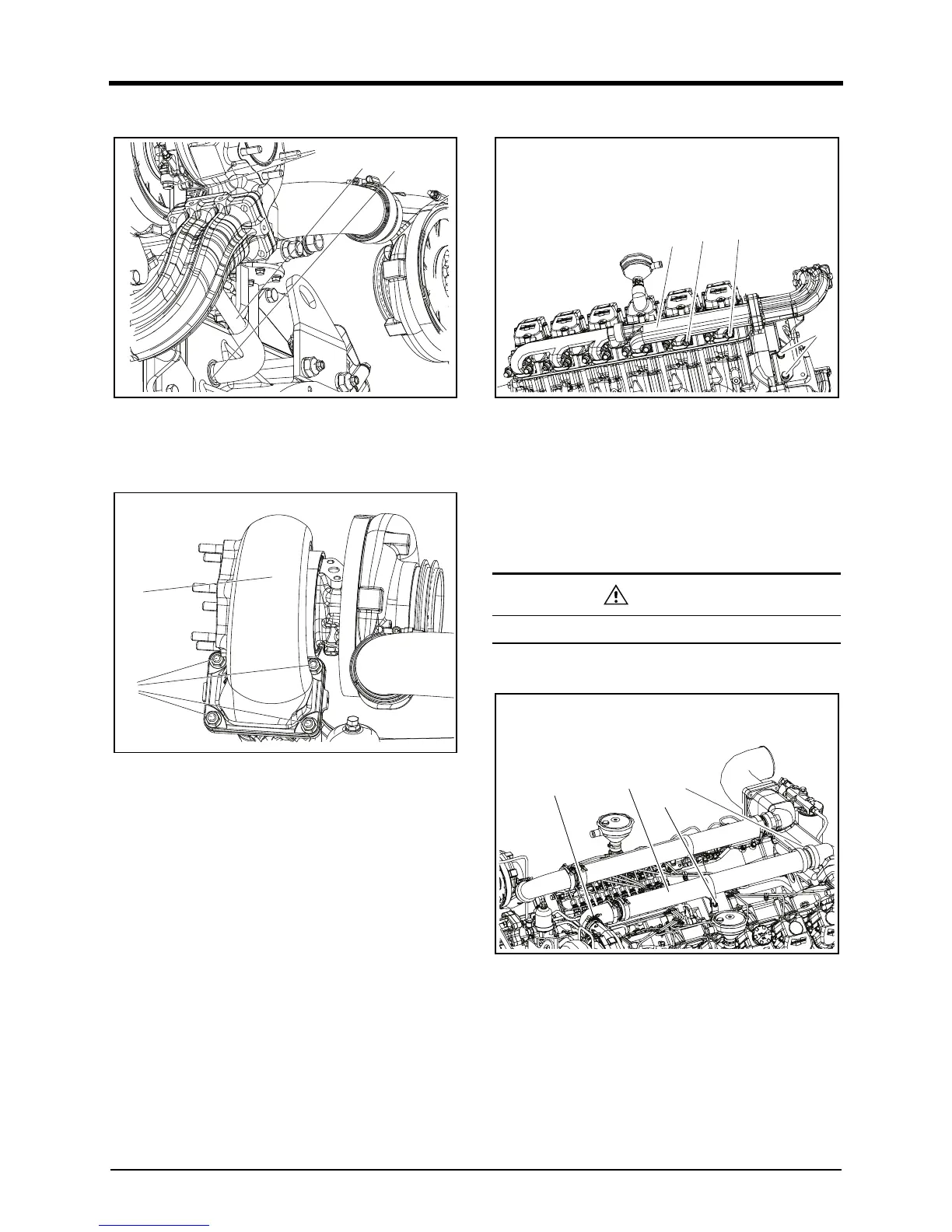

10. Remove the oil return pipe.
DV2213169A
1) Loosen the clamp(A).
2) Loosen 2 fixing bolts(B)
11. Remove the turbocharger.
DV2213170A
1) Loosen 4 fixing nuts(A).
2) Remove the turbocharger(B).
3) Remove the other side turbocharger as the same
procedure.
12. Remove the exhaust manifold and elbow assembly.
DV2213060A
1) Remove the heat screen.
2) Loosen the fixing bolts(A) of the exhaust el
bow
bra
cket.
3) Loosen 8 fixing bolts(B) and 4 fixing bolts(C).
4) Remove the exhaust manifold and elbow assembly(D).
5) Remove the other side exhaust manifold and el
bow
asse
mbly as the same procedure.
13. Remove the intake stake.
DV2213061A
1) Loosen the fixing bolt(A).
2) Loosen the hose clamp(B).
3) Loosen the V-clamp(C).
4) Remove the intake stake(D).
A
C
B
A
B
CAUTION
Be careful not to mix the fixing bolts each other.
A
B
C
D
C
D
A
B
