5. About the engine
85
5) Remove the other side intake stake as the same
procedure.

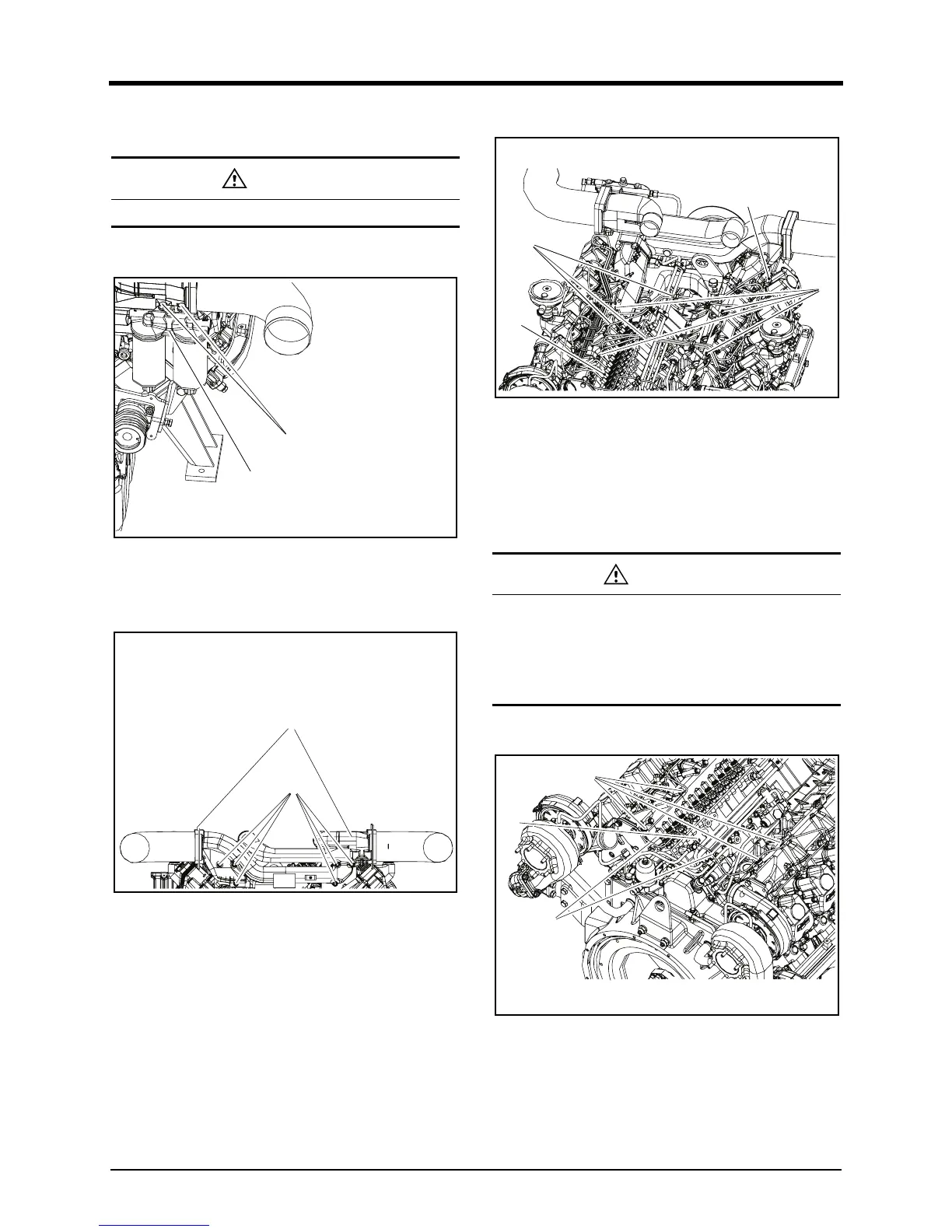

14. Remove the fuel filter.
DV2213062A
1) Loosen the fixing bolts(A).
2) Remove the fuel filter assembly(B).
15. Remove the inlet pipe.
DV2213063A
1) Loosen the fixing bolts(A).
2) Remove the inlet pipe(B).
16. Remove the fuel injection pipe assembly.
DV2213064A
1) Loosen the fixing bolts(A).
2) Loosen 12 fuel injection pipe nuts(B) connected t
he
in
jector.
3) Loosen 12 fuel injection pipe nuts(C) connected t
he
f
uel injection pump.
4) Remove 3 fuel injection pipe asseblies.
17. Remove the fuel pipe.
DV2213067A
1) Loosen the fixing bolts(A).
2) Loosen the hollow screw(B).
CAUTION
Be careful not to let dust inside the engine.
A
B
A
B
CAUTION
• Be careful not to damage the fuel injection pipes.
• Be careful not to let dust inside the fuel injecit
on
pi
pes.
• Be careful not to let dust inside the fuel injecit
on
pi
pes.
A
B
C
D
A
B
C
