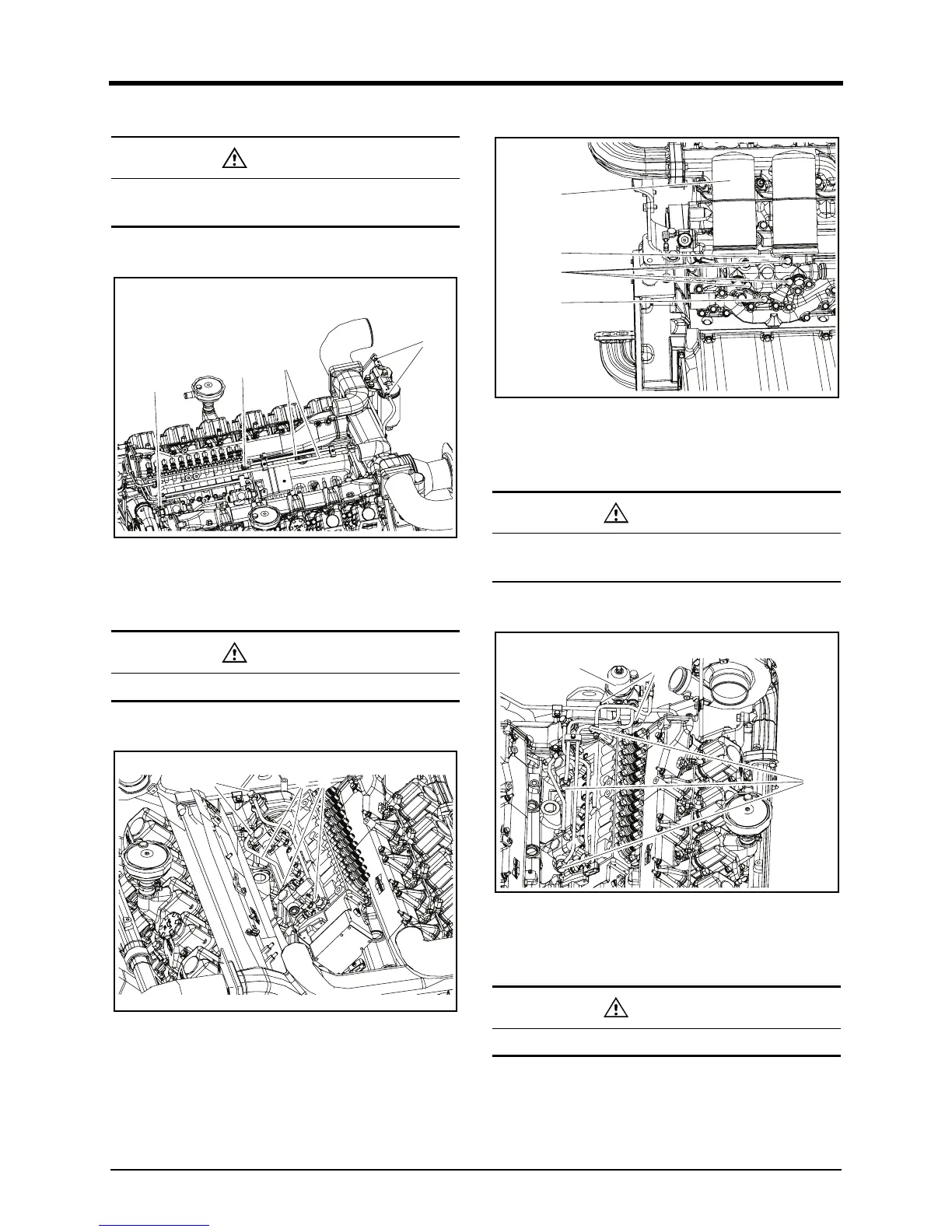

3) Remove the fuel pipes(C).
18. Remove the fuel pipe.
DV2213068A
1) Loosen the fixing nuts(A).
2) Loosen the fixing nuts(B) and (C).
3) Remove the fuel pipe(C)
19. Remove the fuel and oil hoses.
DV2213070A
1) Loosen the fixing bolts(A).
2) Loosen the hollow scres(B).
3) Remove the fuel and oil hoses(C).
20. Remove the oil filter assembly.
DV2213082A
1) Remove the oil filter with the chain plier(EF.200-038).
2) Loosen the fixing bolt(B) and (C).
3) Remove the oil filter housing.
21. Remove the fuel pre-filter.
DV2213065A
1) Loosen the hollow screws(A).
2) Loosen the fixing bolts(B).
3) Remove the fuel return pipe and fuel pre-filter.
CAUTION
• Be careful not to loss the O-ring.
• Be careful not to damage the fuel pipes.
CAUTION
Be careful not to damage the fuel pipes.
D
B
A
C
A
C
B
CAUTION
• Be careful not to lose the gasket.
• Be careful not to run down oil.
CAUTION
Be careful not to damage the fuel injection pipes.
