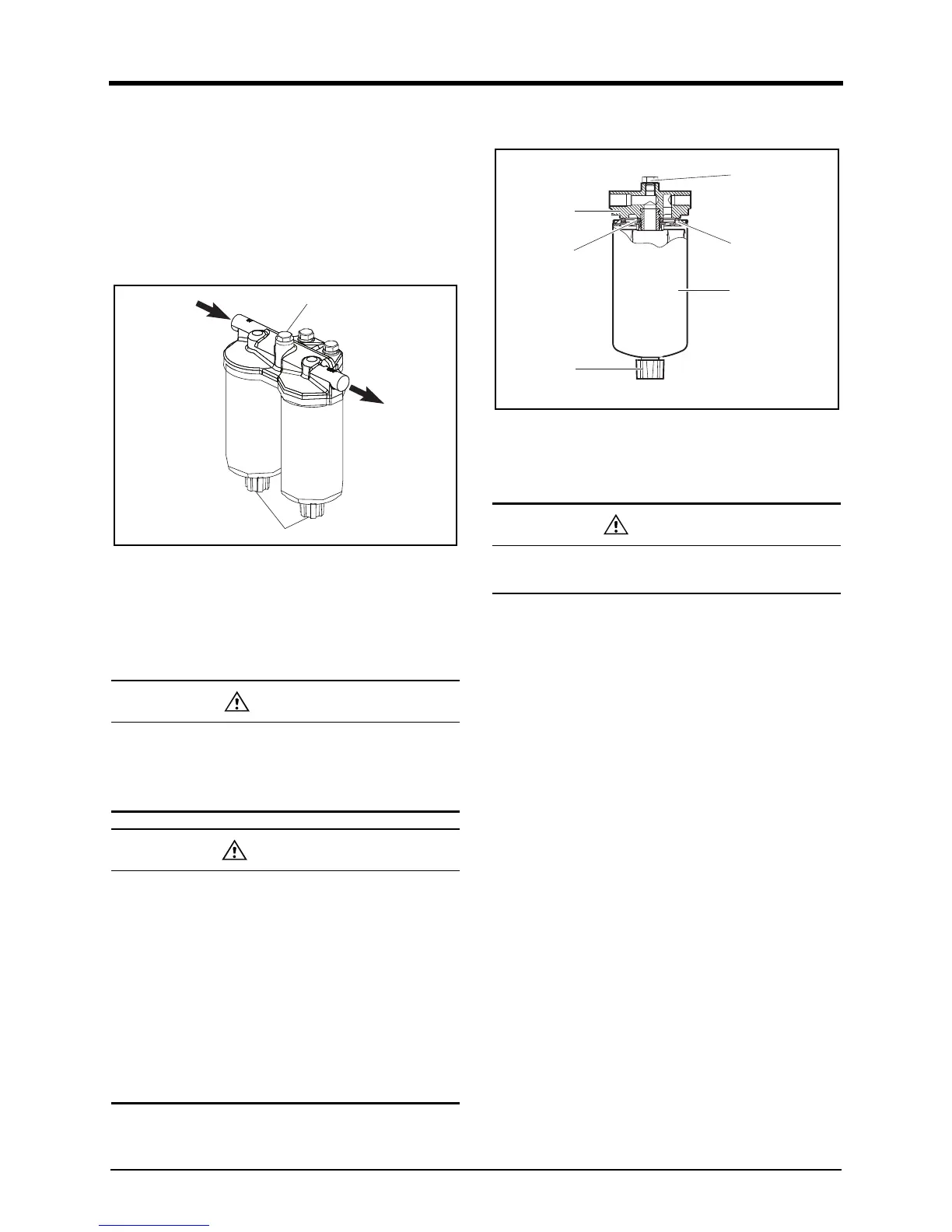

Water draining from fuel filter
An oil filter has two functions: oil filtering and water sepa-
ration.
1. the water separation function of the fuel filter
discharges water and sediment from the water
separator.
2. Stop the engine, and loosen the drain plug for water
separation manually.
DV2213164B
3. Turn the drain plug (A) for water separation counter-
clockwise 2~3times until water is drained. Drain t
he
wa
ter in the cartridge until fuel is discharged.
4. Tighten the drain plug for water separation by turning
it clockwise.
Replacing fuel filter
DV2213019A
1. Clean the area around the fuel filter head(3).
2. Disassemble the cartridge(2) by turning it counter-
clockwise with a fuel filter wrench.
3. Remove the fuel filter screw adapter seal ring(4).
4. Clean the gasket contact of the fuel filter head(3).
5. Check the position of the new cartridge adapter seal
ring(4).
6. Apply thin coat of clean oil to the O-ring(5) area of
the cartridge, and fill the cartridge with fuel.
7. Assemble the cartridge to the fuel filter head.
8. Tighten the cartridge with hand until the O-ri
ng
cont
acts the fuel filter head surface.
Fuel may be drained when water is drained from the
fuel filter. Fuel is highly inflammable. Fire may occur
when you use fire near the engine when draining
water from the fuel filter.
• Do not tighten the plug excessively because it
may damage the screw.
• If you do not check the fuel filter regularly and
drain the water in the fuel filter, water flows into
the fuel system of the engine, causing seri
ous
failure in the fuel system, etc., and decrease in
or damage to the fuel filter performance. Inflow
of water to the fuel system may stop the engine.
• Use clean, specified, and qualified fuel only.
using irregular or unspecified fuel may result in
more water in the fuel filter.
