10. Cylinder block/head
173
3) For cracks or damage which cannot be checked with
the naked eye, perform the hydrostatic test or t
he
m
agnetic particle testing.
Note) Hydraulic test is same as for cylinder block.

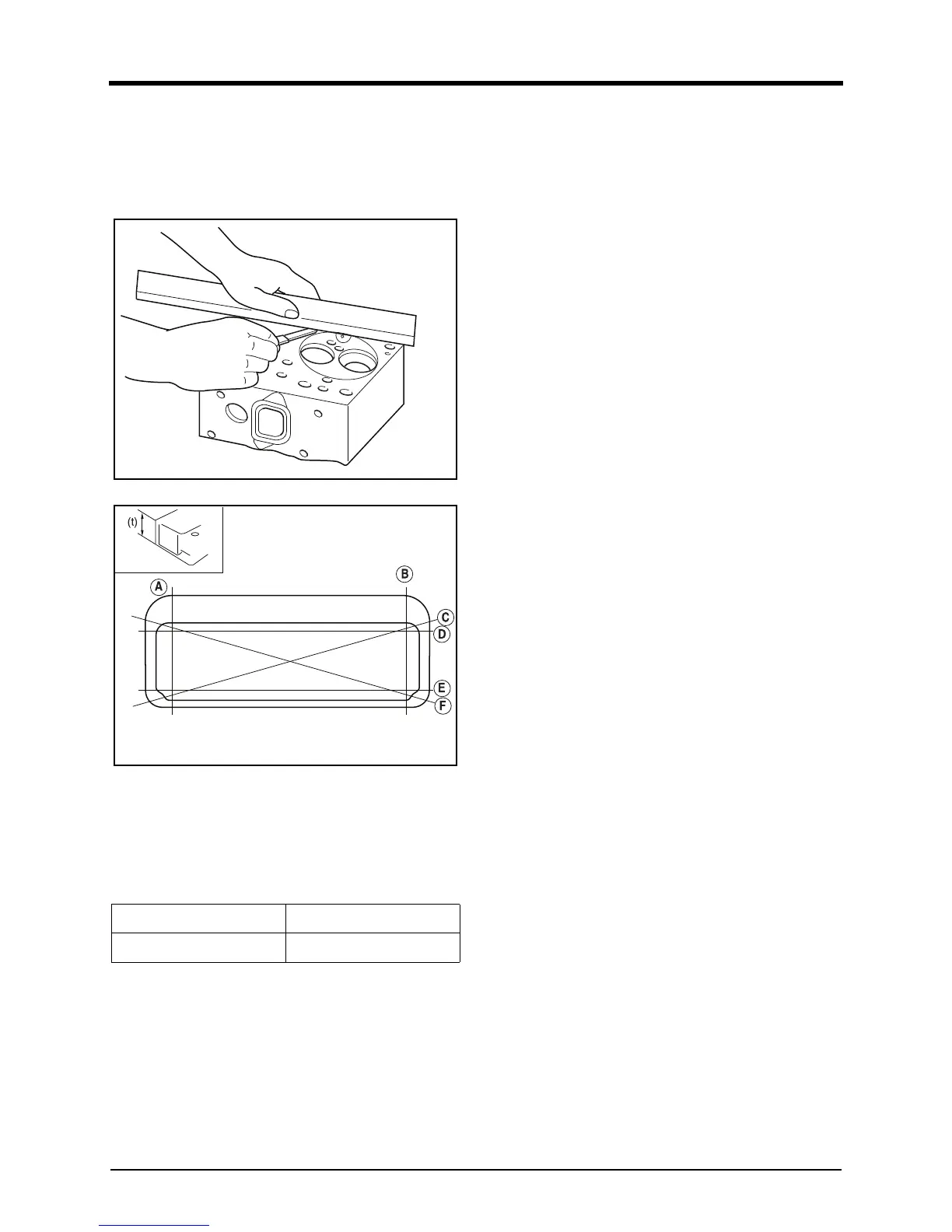

2. Distortion at the lower face
DV2213115A
DV2213116A
1) Measure the amount of distortion using a straight
edge and a feeler gauge at six positions as shown in
the figure.
2) If the measured value exceeds the maximum allow-
able limit, replace the cylinder head.
Standard Limit
Below 0.05mm 0.2mm
