Doosan DP158LDF - Page 99

8. Fuel system
137
DV2213210
1
4, 5
11
13
14, 15
12
16
17 18
2, 3
987
6
6
10

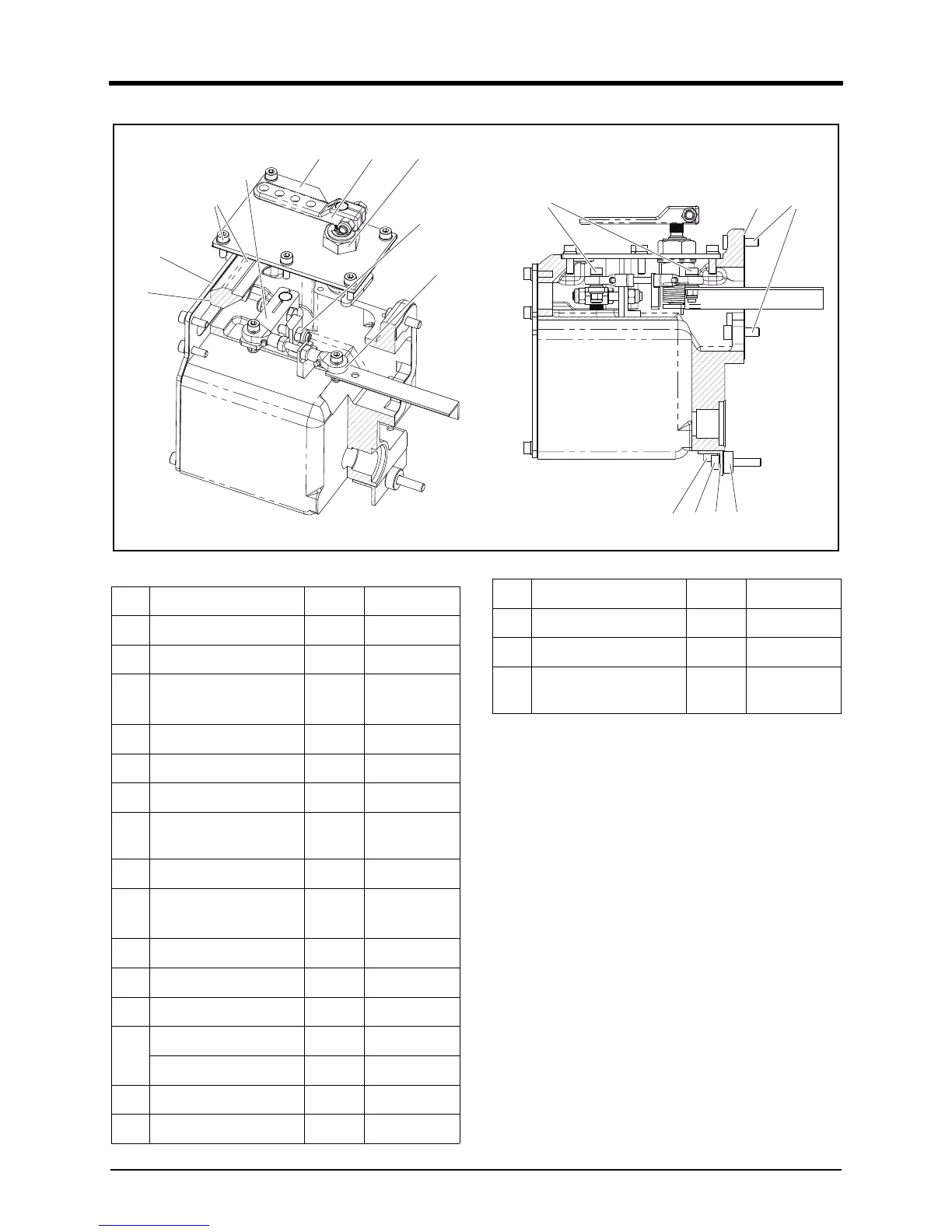

Fuel rack
No Title Amount Remarks
1 Ball link ASS"Y 1 M5xL15
2 Screw, Ball link 2 M5xL15
3 Plain Washer 2
Φ5.5x
Φ14xT1.2
4Stop Screw 1M6xL25
5 Lock Nut 1 M6xP1.0
6 Allen Screw (SEMS) 6 M6x22L
7 Allen Screw (SEMS) 2
M6x30L or
18L
8 Mounting Bar 1
9 Spacer 2
Φ6.5x
Φ16xT7.4
10 Pump Gasket 1 T 0.5
11 Front Cover 1 T 3.2
12 Front Gasket 1 T0.5
13
Allen Screw 8
Seal Screw 4
14 Top Cover 1 T 3.2
15 Top Gasket 1 T 0.5
16 Operating Lever 1
17 Stop Lever 1
18
Manual Stop Device
ASS'Y
1
No Title Amount Remarks
