12. Other/Driving System
185

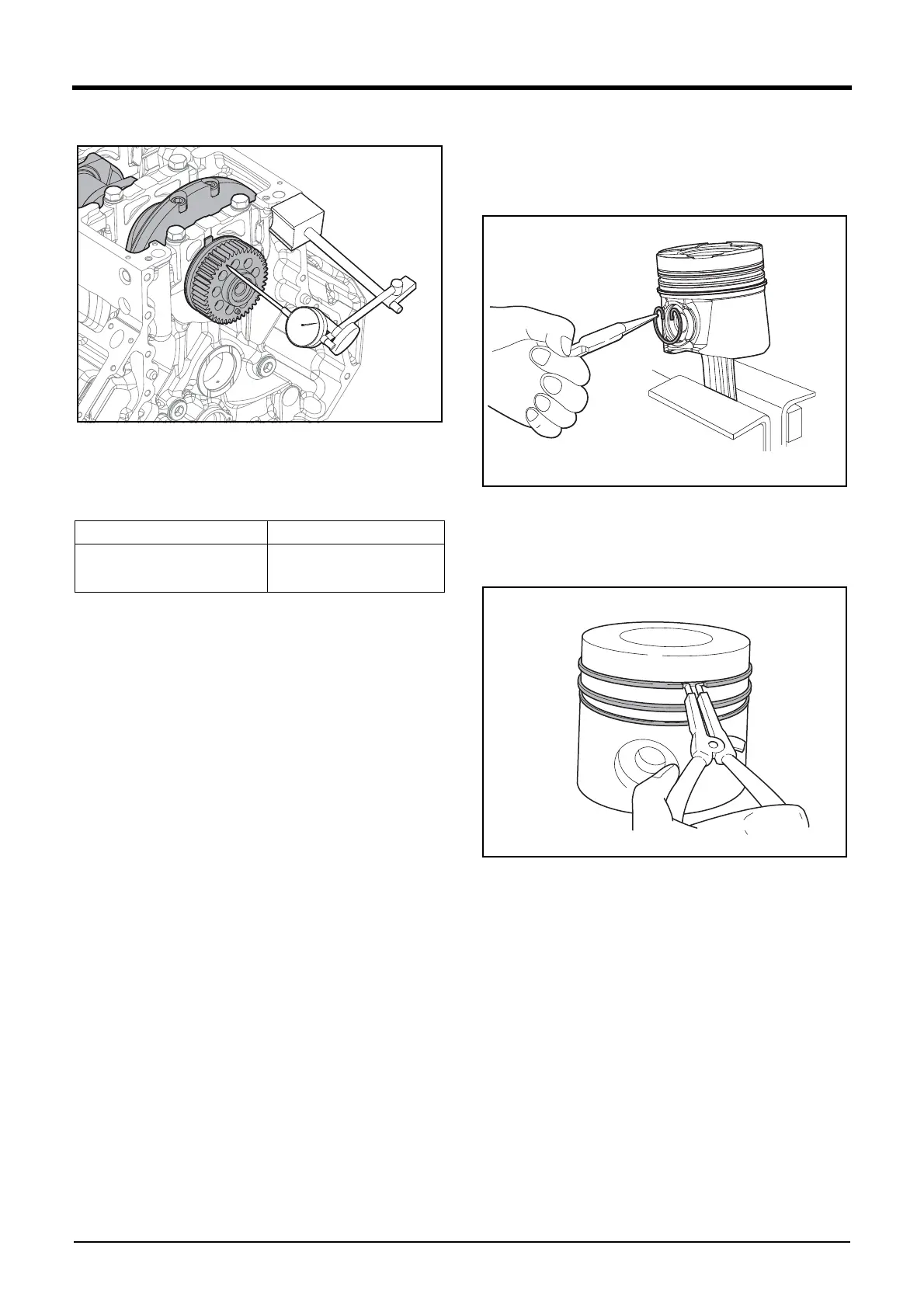

5. Crankshaft play
EDX22190103
1) Install the crankshaft on the cylinder block and use a dial
gauge to measure the crankshaft end play.
• Crankshaft play
Pistons
Disassembling Pistons
1. Disassembling piston pins
EDX22190104
1) Remove the piston pin snap ring with snap ring pliers.
2) Remove the piston pin with a round rod.
2. Disassembling piston rings
EFM2051I
1) Remove the piston rings with pliers.
2) Clean the piston thoroughly.
Reference value Allowable limit
0.140 ~ 0.361 mm
(0.0055 ~ 0.0142 in.)
0.4 mm (0.0157 in.)
