Doosan DX22 - WIF (Water in Fuel) Sensor

13. Installation Guidelines
199
WIF (Water In Fuel) Sensor

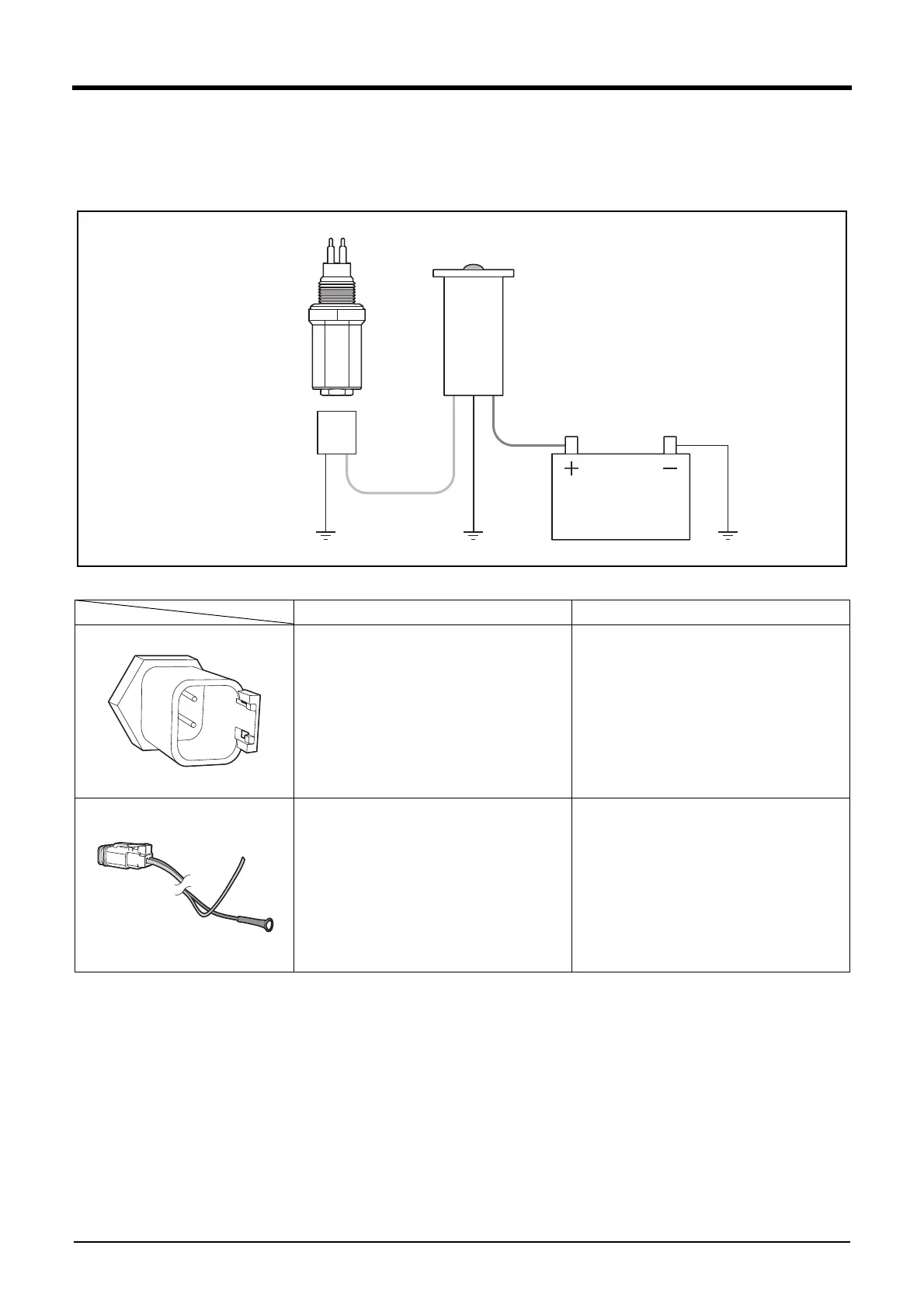

Circuit Diagram : Working Voltage (5 VDC ~ 50 VDC)
WIF Wiring
EDX22190141
WIF
(Water In Fuel)
Sensor
WIF Light
(LED)
Red
WIF
Harness
Green
Sensor Description Note
DEUTSCH DT13-2P
DEUTSCH DT06-2S for harness
(Provided with the filter.)
Ground wire length (Black): 300 mm
(11.8 in.)
Signal wire length (green): 1800 mm
(70.9 in.)
