4. Regular Inspections
44
Cylinder Block/Head
Adjusting the Valve Clearance
• Turn the crankshaft to set the piston of cylinder no. 1 at TDC of the compression stroke; then, adjust the valve clearance.
• Unscrew the rocker arm mounting nut and fit the feeler gauge between the rocker arm and valve. Adjust the clearance of
each cylinder with the adjustment screw; then, tighten the mounting nut.
• Adjust the valve clearance as follows while the engine is cold:
EDX22190045
Specified Value Measurement Tolerance
Intake Valve Exhaust Valve Intake Valve Exhaust Valve
0.4 mm (0.0158 in.) 0.7 mm (0.0276 in.) ±0.05 mm

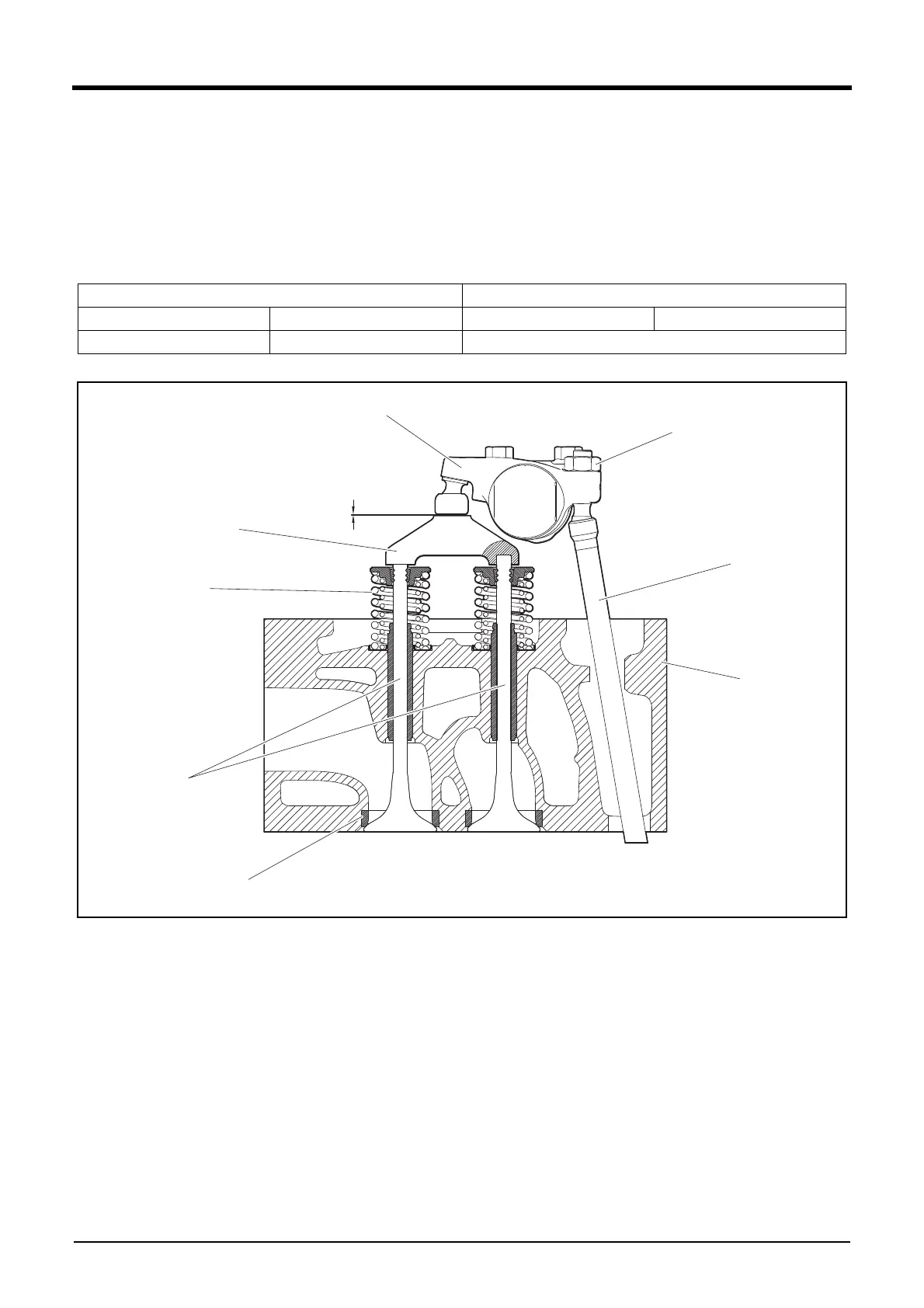

Intake and exhaust valve adjustment
Valve adjustment screw
A
Rocker arm
Caliper
Valve spring
Valve
Valve seat
Pushrod
Cylinder head
To Next Page
