12. Other/Driving System
190

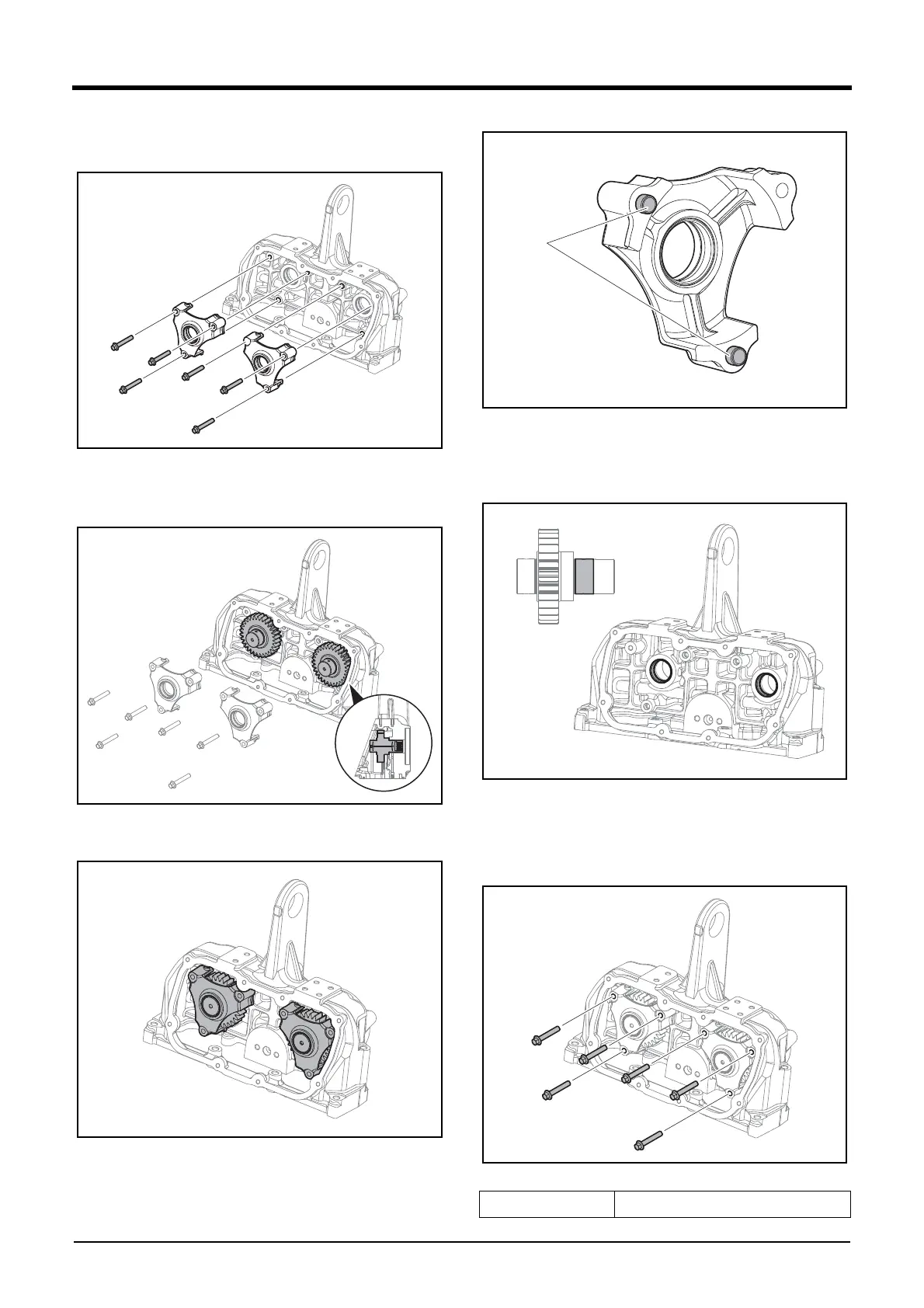

Timing Gear Train
1. Unscrew six M8 bolts and remove the brackets.
EDX22190158
2. Insert the high-pressure fuel pump gears (2 EA) into the
case bushing holes and seat them on the case seat.
EDX22190159
3. Assemble the brackets.
EDX22190160
EDX22190161
1) Assemble bracket pins (A) while taking care not to
damage them, and seat the brackets on the case seat.
(Use a copper hammer)
EDX22190162
2) During assembly, apply oil around the entire circumfer-
ence of the bushing and shaft with a silicone brush at
least once.
4. Tighten the M8 bolts onto the brackets.
EDX22190163
Tightening Torque
2.2 ±0.55 kgf·m (15.9126 ±3.9782 lbf·ft)
A
To Next Page
