4. Regular Inspections
48
EDX22190046

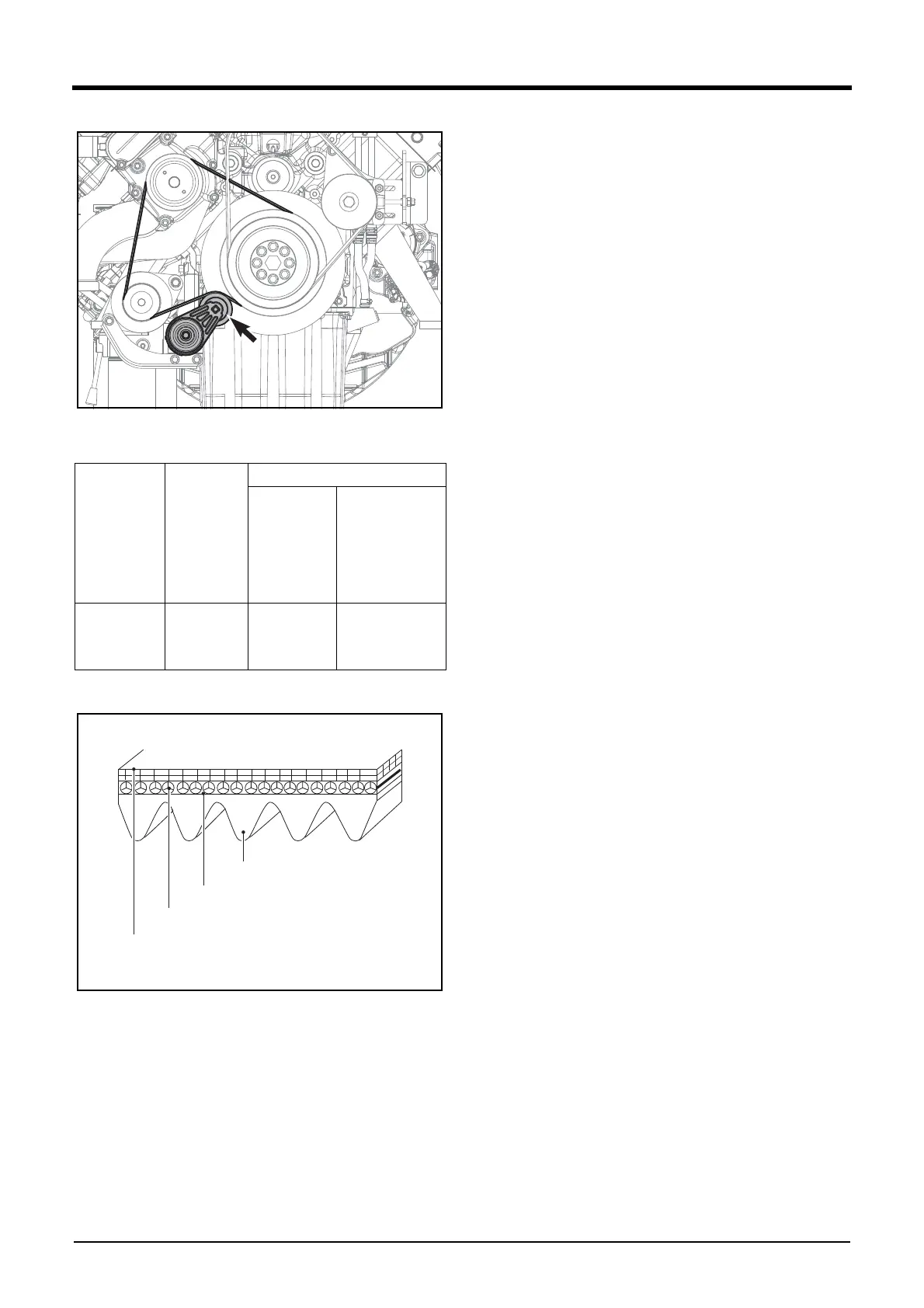

4. The belt tension is as follows:
5. The belt consists of the following components.
EDL022142A
1) The belt consists of the cover layer (A), cord (B), adhe-
sive rubber (C) and belt reinforcement rubber shim (D).
Type
Drive belt
width
Tension on the tester
Installation
(10 minutes
after
operation)
During service
after pro-
longed opera-
tion
(replacement
interval)
8PK Micro V
27.62 mm
(1.0874 in.)
358 ~ 444 N
(80.48 ~
99.82 lbf)
220 N / 49.46 lbf
A
B
C
D
