5. General Engine Information
67

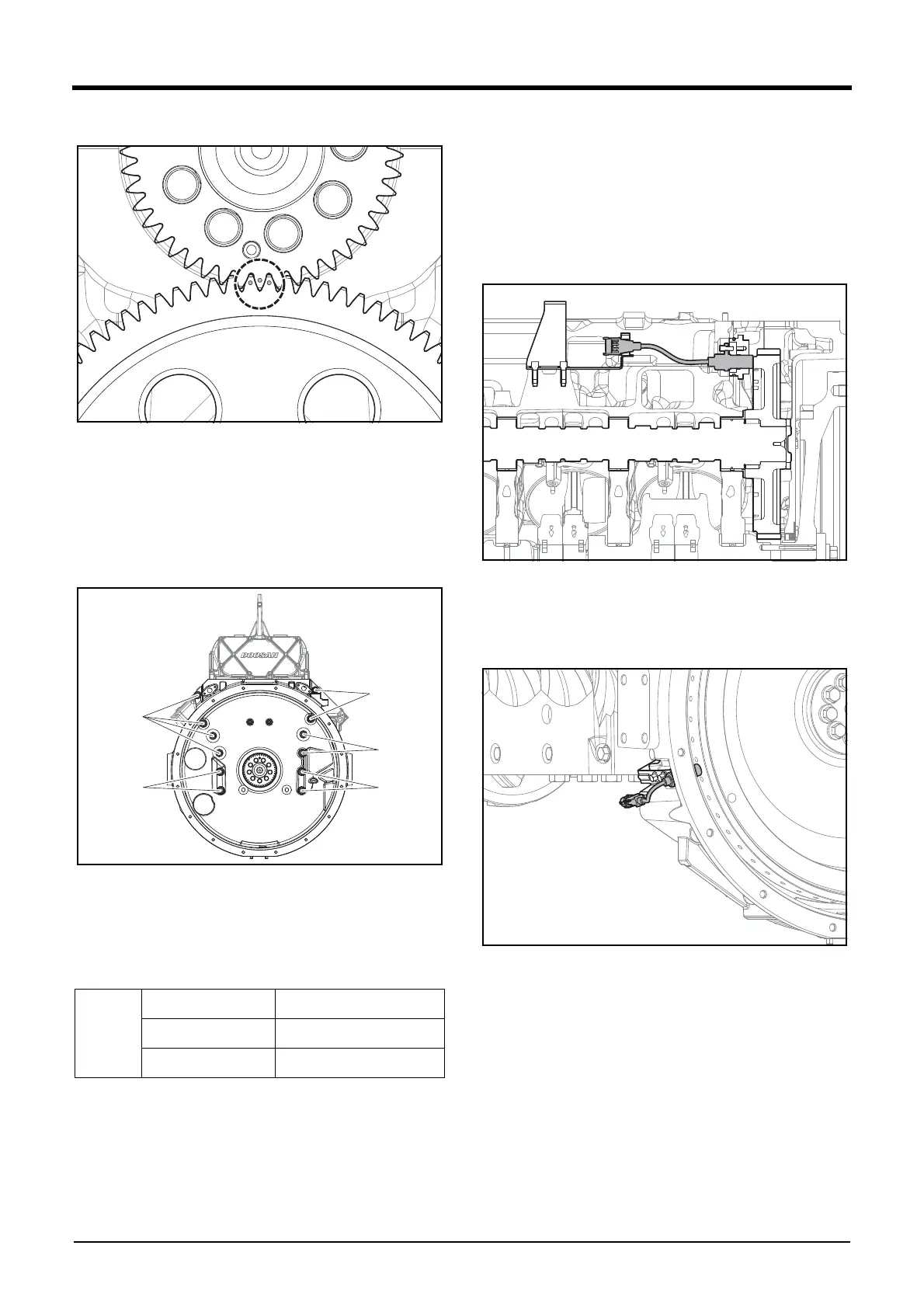

5. Camshaft
EDX22190112
1) Apply engine oil to the cylinder block cam bushing and
camshaft.
2) Take care not to damage the cam bushing and camshaft.
3) Check to make sure that the markings on the crankshaft
gear and camshaft gear are aligned when assembling them.
6. Flywheel housing
EDX22190113
1) Before assembling the flywheel housing with the cylinder
block, assemble the flywheel housing as follows first.
2) Apply Loctite to the thrust washer mounting bolts and
tighten them to the specified torque.
3) Apply lubricant to the oil seal and use a special tool to
assemble it while taking care not to misalign or damage
the seal.
4) Apply a gasket to the cylinder block surface where the
flywheel housing is to be mounted. (Grease the cylinder
block surface to prevent the gasket from coming off.)
5) Temporarily install two flywheel housing assembly guide
bolts on the cylinder block.
6) Fit the flywheel housing holes onto the guide bolts and
temporarily tighten the mounting bolts 2 ~ 3 threads;
then, tighten them to the specified torque in the correct
tightening sequence (zigzag pattern).
7. Cam & CRS sensor
EDX22190114
1) After mounting the cam sensor on the sensor bracket,
insert it into the mounting holes in the cylinder block and
tighten the bolts.
EDX22190115
2) After mounting the CRS sensor on the sensor bracket,
insert it into the mounting holes in the flywheel housing
and tighten the bolts.
Torque
M14 x 1.5p (12.9T) 17.0 kgf·m (122.961 lbf·ft)
M12 x 1.5p (12.9T) 13.4 kgf·m (96.92 lbf·ft)
M10 x 1.5p (12.9T) 7.4 kgf·m (53.5243 lbf·ft)
