5. General Engine Information
72

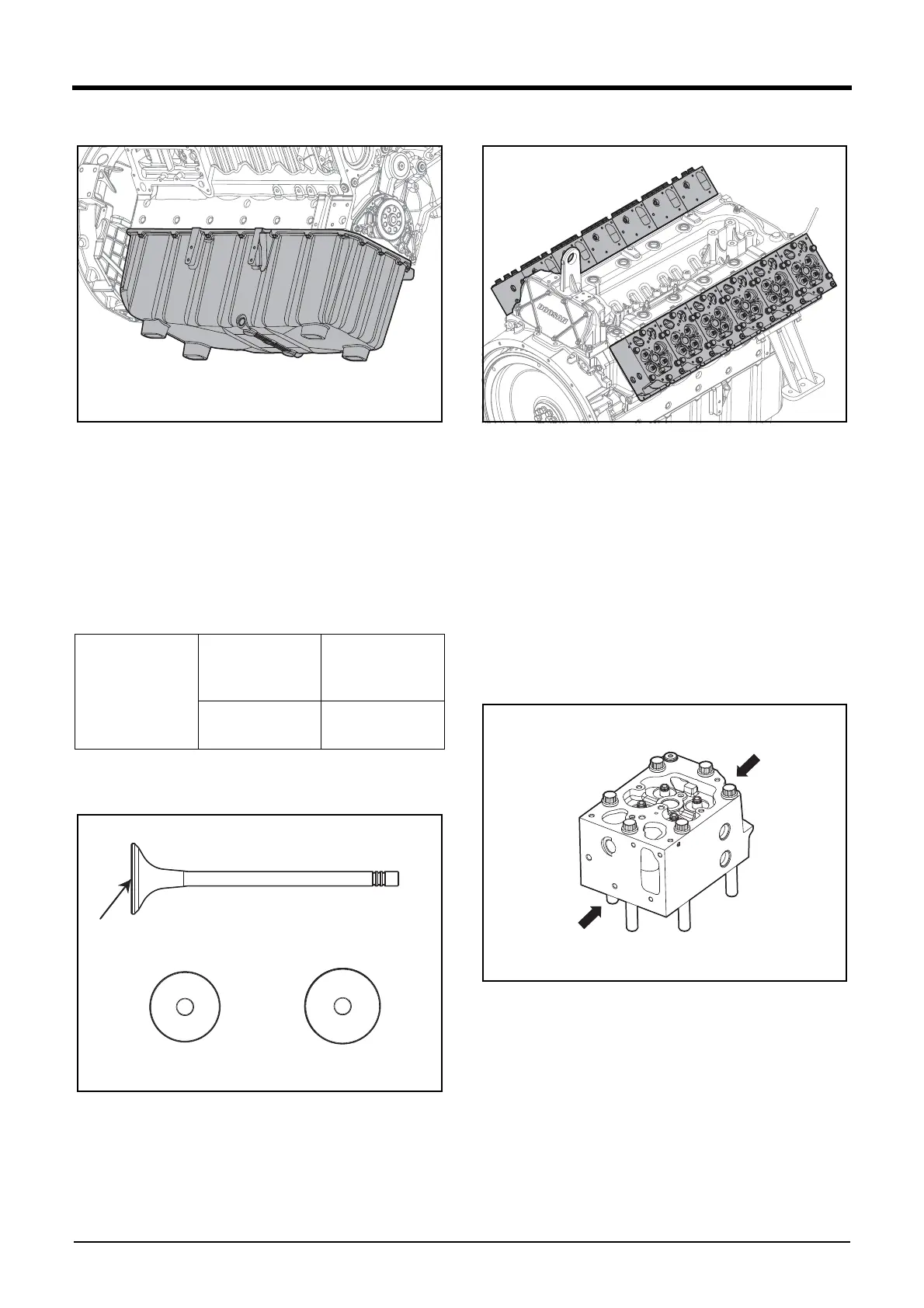

13. Oil pan
EDX22190090
1) Use a scraper to completely remove the gasket
protruding from the joint between the front oil seal holder
and the flywheel housing on the bottom of the cylinder
block. When removing the gasket, make sure that pieces
of the gasket do not enter the engine.
2) Apply a gasket to the cylinder block.
3) Mount the oil pan and tighten it with mounting bolts.
4) Take care not to displace the gasket.
5) Mount the guide tube and insert the oil level gauge.
14. Intake and exhaust valves
EDX22190122
1) Before installing the valves on the cylinder head, check
the "I" and "E" marks on the valve head.
2) Use a valve stem seal installation jig to install the valve
stem seals on the valve guides.
15. Cylinder Head
EDX22190089
1) Blow into the cylinder head bolt holes with compressed
air to completely remove all foreign matter.
2) Thoroughly wipe the head gasket contact surface on the
cylinder block.
3) Make sure to check for and remove any foreign matter in
the combustion chamber.
4) Align the gasket with the cylinder block mounting pins
and assemble it.
5) Align the cylinder head with the cylinder block reference
pins and mount it on the cylinder block. (Be careful not to
damage the head gasket.)
EDX22190123
Torque
Drain plug
15 kgf·m
(108.495 lbf·ft)
(M30-screw plug)
Mounting bolts
3.1 kgf·m
(22.4223 lbf·ft)
IE
Valve marking location
Intake valve Exhaust valve
Intake manifold
Exhaust manifold
To Next Page
