5. General Engine Information
85

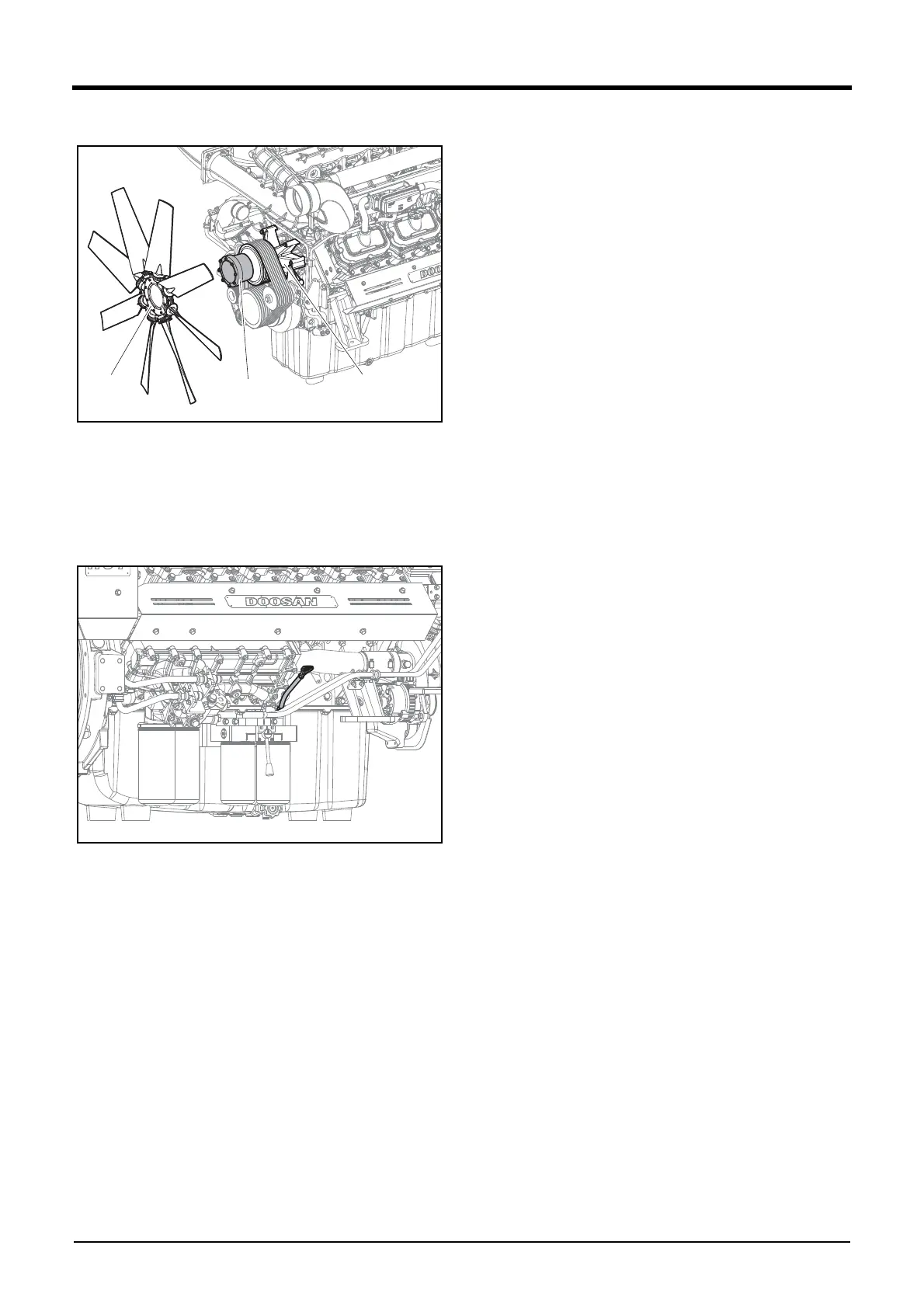

34. Cooling fan and fan drive
EDX22190129
1) Install fan drive bracket (A) on the cylinder block and
assemble the fan.
2) Assemble cooling fan (B) and fan flange (C) with
mounting bolts; then, tighten them to the specified torque.
35. Oil level gauge and guide tube
EDX22190042
1) Assemble the guide tube and oil level gauge with the oil
pan.
36. Misc.
1) Connect the various sensors, harnesses, fuel and oil
lines.
