168 Instructions for use | Atlan A100 (XL), A300 (XL), A350 (XL) SW 2.1n
Operation

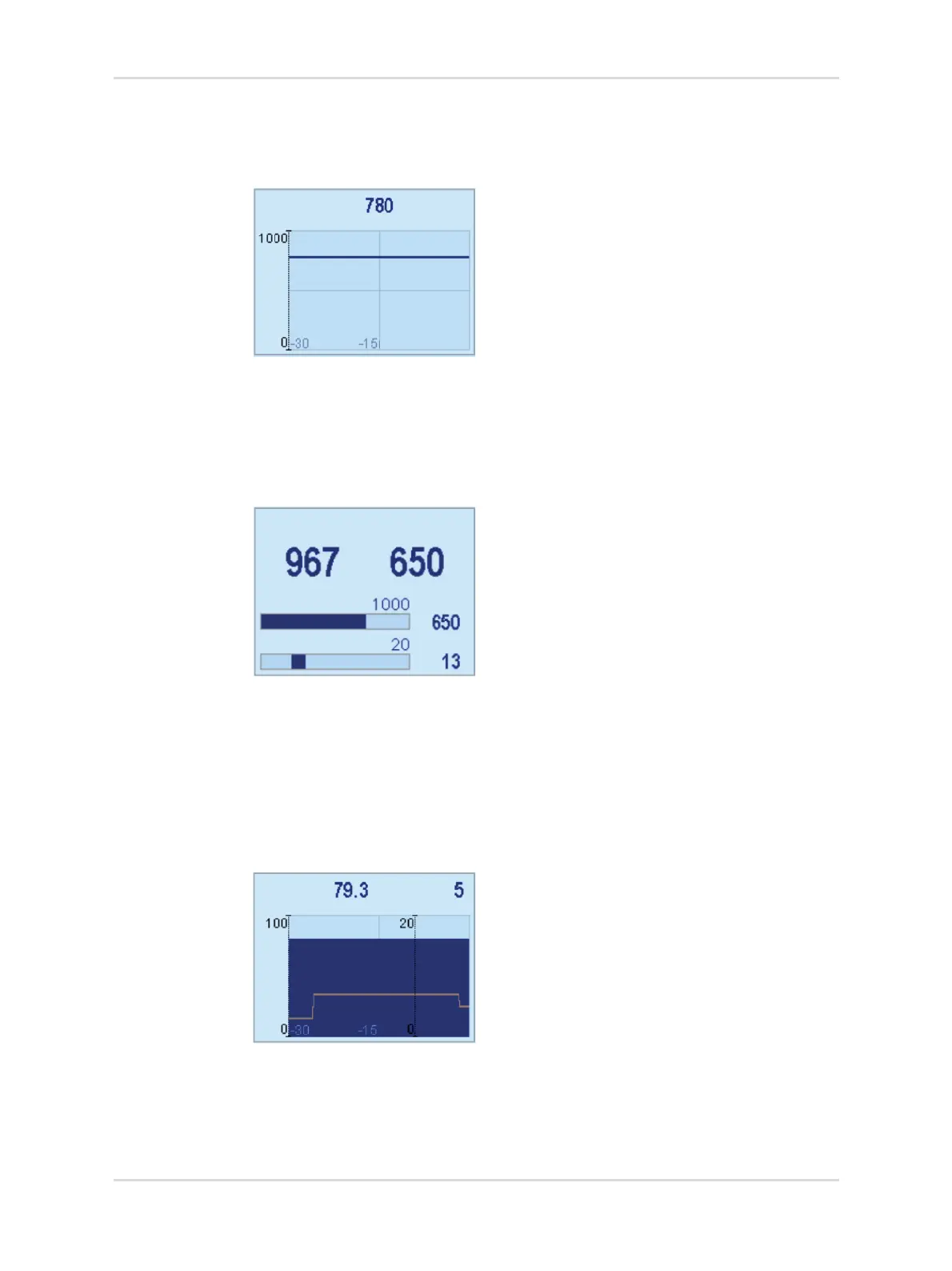

8.6.7 MV×CO2 trend
Prerequisite: The device has the "advanced gas monitoring" software option.
The MV×CO2 parameter field displays the CO2 elimination trend. The trend is
calculated as the product of the minute volume (MV) and the difference of the
measured expiratory CO
2 concentrations (etCO2) and inspiratory CO2
concentrations (inCO
2).
8.6.8 ΔVT
The VT parameter field displays the inspiratory tidal volume (VTi) and expiratory
tidal volume (VT) measured values and the difference between these two
measured values (VT). In addition, the expiratory tidal volume (VT) and airway
pressure (Paw) measured values are displayed as bar graphs.
8.6.9 Compliance trend
Prerequisite: The device has the "advanced ventilation monitoring" or "loops and
trends" software option.
The Compliance trend parameter field displays the current measured values for the
dynamic patient compliance (Cdyn and PEEP) as well as the trend of the mean
dynamic patient compliance (Cdyn mean).
49054
MV×CO2
min min
Now
49055
ΔVT VTi
VT
Paw
49057
Cdyn
PEEP
min
min
Now
