Instructions for use | Atlan A100 (XL), A300 (XL), A350 (XL) SW 2.1n 167
Operation
2. Touch the Stop button (2) to stop.
3. To reset the volumeter and time display to zero, touch the Reset button (2).
The volumeter stops automatically after 60 seconds. The measured values are
displayed for 4 minutes and then deleted.
8.6.6 Low-flow wizard
Prerequisite: The device has the "advanced gas monitoring" software option.

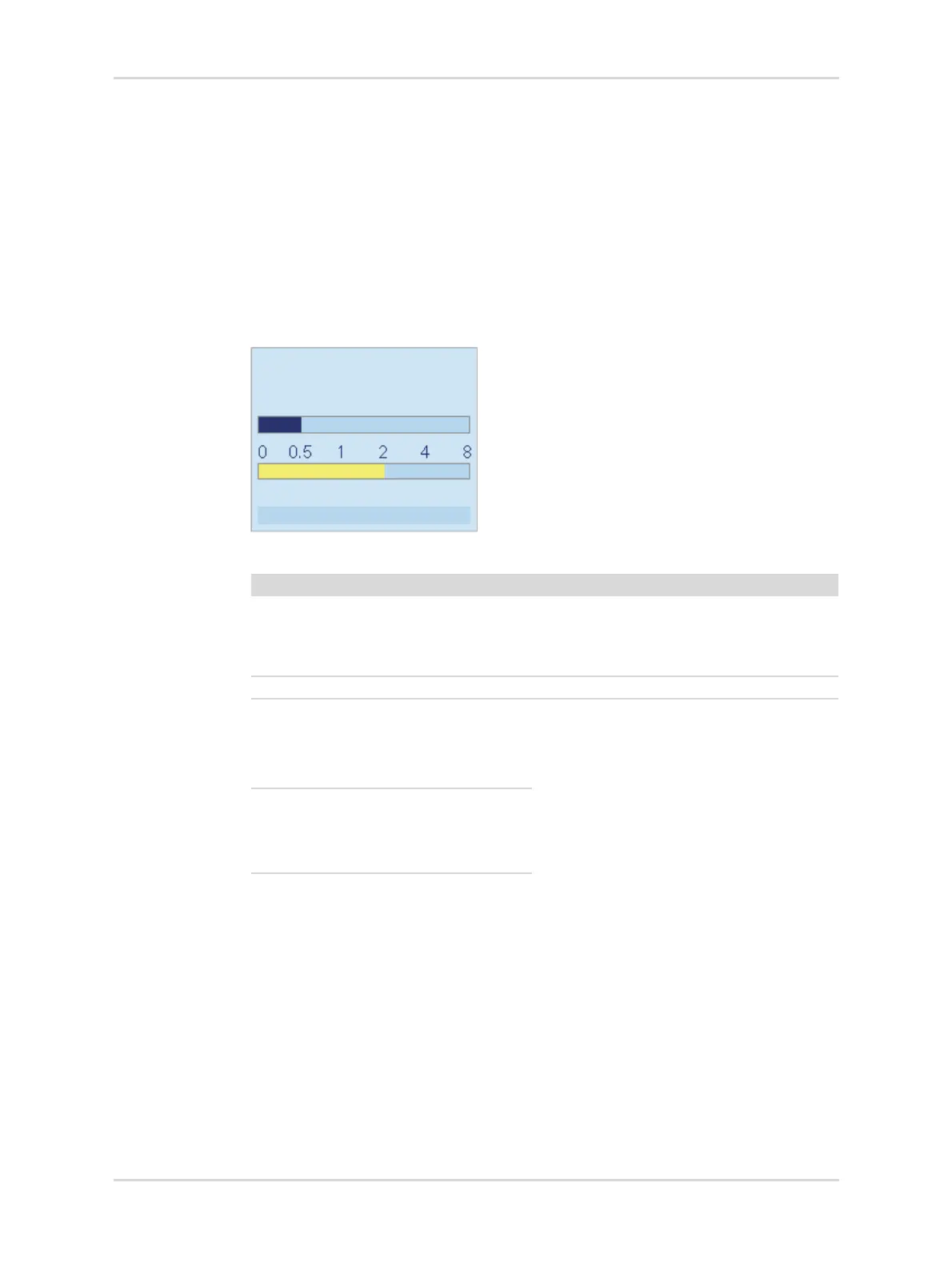

The low-flow wizard displays bar graphs for the required fresh-gas flow and the
current total flow. Both bar graphs are to the same scale.
An evaluation of the total flow is displayed below the bar graph:
An insufficient fresh-gas flow may trigger the Fresh gas low or leakage or
Ambient air inlet activated alarms, for example.
35554
Evaluation Color Meaning
Too high Yellow The fresh-gas flow is possibly too high. If
the fresh-gas flow can be reduced, both
fresh gas and anesthetic agent will be
saved.
Efficient Green No action is necessary.
Too low Red The fresh-gas flow is too low.
● Check the fresh-gas flow.
● Check the position of the breathing
bag.
Refill bag Red The fresh-gas flow is too low.
● Check the filling of the breathing bag. If
necessary, fill up the breathing bag,
e.g., with the O
2 flush.
Required FG flow
Tot a l fl o w
Too high
Low-flow wizard
To Next Page
